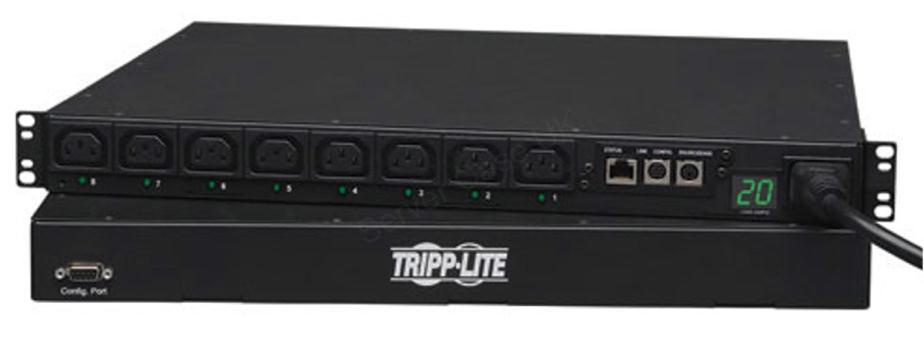

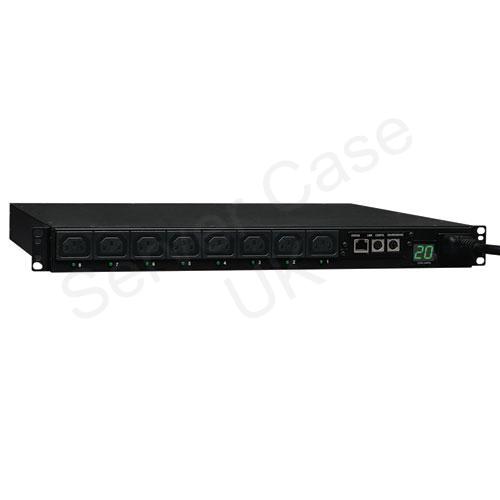

Tripp Lite Single Phase Switched 1U Horizontal Rackmount Power Distribution Unit 20A 200-240V (C13 Outlets)

Tripp Lite single phase Switched PDU / Power Distribution Unit offers advanced network control and monitoring with the ability to turn on, turn off, recycle or lock-out power to each individual receptacle, monitor site electrical conditions and remotely monitor output power consumption. PowerAlert interface supports remote control and custom notification of user-specified conditions via email, secure web, SNMP, Telnet or SSH interface. Individually switched outlets can be controlled in real-time to remotely reboot unresponsive network hardware, or be custom programmed for user-defined power-up and power-down sequences to ensure proper startup of interdependent IT systems and prevent inrush-related overloads as network equipment is first energized. Unused PDU outlets can be electronically locked off to prevent the connection of unauthorized hardware. PDU output current consumption in amps is continuously displayed locally via visual meter and remotely via web/network interface to warn of potential overloads before critical IT mains or branch breakers trip.

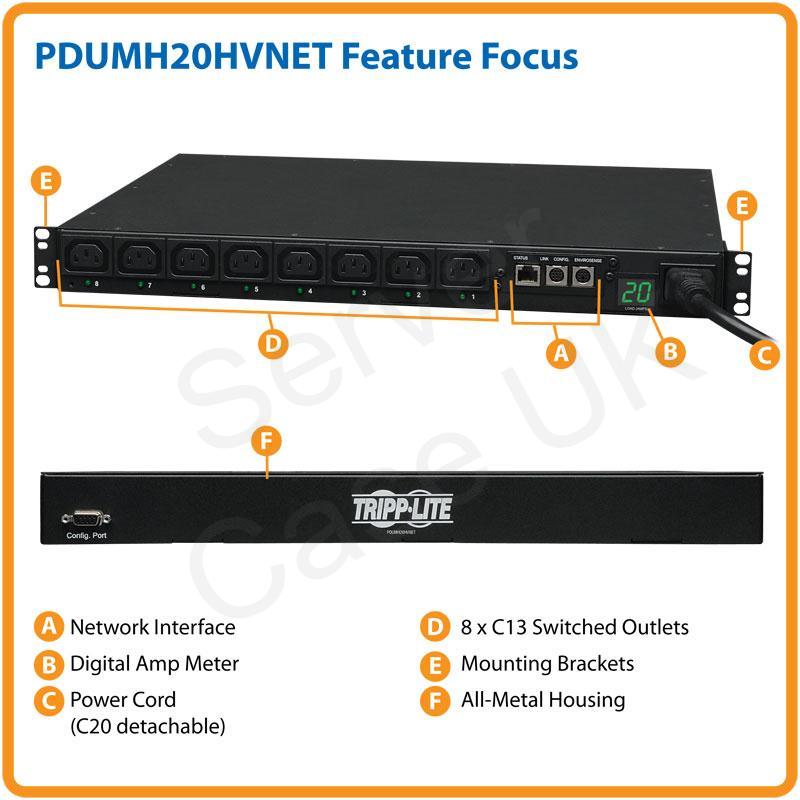

Features

• Switched 20A 200-240V PDU, 1U Horizontal Rackmount format
• Reports voltage, frequency & loading information via ethernet interface
• Visual current meter, reversible housing
• C20 inlet; 8.5ft / 2.6m C20 input cable with L6-20P adaptor
• 8 C13 switched outlets with cord retention brackets
• Temperature, humidity and contact-closure monitoring options
• Supports power-on, power-off or reboot of each outlet on a real-time or programmable basis
• Enables reboot of locked equipment, custom power-on/power-off sequences, load-shedding of optional loads and disabling unused outlets
• Network interface provides PDU control and data regarding input voltage, frequency and loading information
• Digital display reports load level information in amps
• Supports user-specified alarm notification thresholds
• DHCP/Manual configuration support
• 10/100 Mbps auto-sensing
• Real-time clock backup maintains the time of day and date even if the PDU is unpowered
• Tiered access privileges allow an administrator and a guest to login via web browser
• Alert notifications via email or SNMP traps offer immediate event notification

Specifications

Compliance
Compliance Standards	Tested to UL 60950-1 (USA, Canada), Class A (Emissions), NOM (Mexico), ), CE (IEC 60950), (RoHS compliant)
Electrical
Cable Length	2.6m
AC Voltage Range	200 to 240V
Frequency	50 to 60Hz
Maximum Input Current	20A
Environmental
Environmental	Humidity 0 to 95%
General
Product Type	Power Distribution Unit
Warranty	2 years limited.
Barcode	037332139283
Interfaces/Ports
Input Connections	NEMA L6-20P; IEC-320 C20
Output Connections	8 x IEC-C13
Physical
Case Colour	Black
LED Status Indicators	8 x LED's
In The Box	Rackmount PDU, Rack mounting brackets
Dimensions	43.9cm (W) x 37.6cm (D) x 2.87cm (H) - Weight 4.1kg
