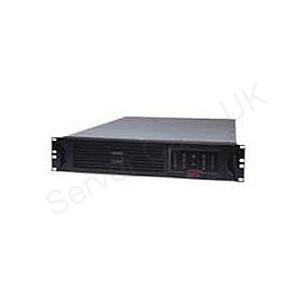

APC Smart-UPS RM 3000VA 2700W 2U with UL Approval (Black)

APC Smart-UPS protects your data by supplying reliable, network-grade power in either traditional Tower or Rack-optimized form factors for space constrained business critical applications. Award winning APC Smart-UPS is the perfect UPS for protecting business critical fileservers (Intel or UNIX based), minicomputers, network switches and hubs, Point of Sale, retail/bank back office and ATM's. Rack Mount versions are the choice for rack optimized servers, server appliances, blade servers, other blade devices and rack-mounted network switches and hubs.



APC Smart-UPS, 3000VA/2700W, Input 230V/Output 230V, Interface Port DB-9 RS-232, SmartSlot, USB, Rack Height 2 U.Features

• APC Smart-UPS RM 3000VA 2700W 2U with UL Approval
• Input Connections IEC 309
• Output Connections: (8) IEC 320 C13, (1) IEC 320 C19, (3) IEC Jumpers
• Output Power Capacity: 2700 Watts / 3000 VA
• Nominal Input/Output Voltage: 230V
• Input Frequency: 50/60 Hz +/- 3 Hz (auto sensing)
• Output Frequency (sync to mains): 47 - 53 Hz for 50 Hz nominal, 57 - 63 Hz for 60 Hz nominal
• Interface Port(s): DB-9 RS-232,USB,SmartSlot
• Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
• LED status display
• Audible alarms
• Colour: Black
• Two years repair or replace

Specifications

Attributes
Typical backup time at half load	11.3 minutes
Typical backup at full load	3.0 minutes
Waveform Type	Sinewave
Control Panel	LED status display with load and battery bar-graphs and On Line : On Battery : Replace Battery and Overload Indicators
Audible Alarm	Alarm when on battery : distinctive low battery alarm : configurable delays
Compliance
Approvals	C-tick,CE,EN 50091-1,EN 50091-2,GOST,VDE
Electrical
Battery Type	Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
Output Capacity	3kVA
Output Wattage	2.7kW
Output Voltage	230V AC
Max Configurable Capacity	3kVA
Input Voltage Range	160 to 286V AC
Environmental
Environmental	Operating Temperature 0 to 40�C - Humidity 0 to 95%
Filtering
Filtering	Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449
Surge Energy	480 Joules
Output Distortion	less than 5% at full load%
Crest Factor	up to 5 : 1
General
Product Family	Smart-UPS RM
Product Type	Uninterruptible Power Supply
Warranty	Two years repair or replace.
Barcode	0731304227601
Interfaces/Ports
Input Connection type	IEC-309
Output Connections	(8) IEC 320 C13, (1) IEC 320 C19, (3) IEC Jumpers
Interface Port	DB-9 RS-232, USB, SmartSlot
Physical
Case Colour	Black
In The Box	CD with software, Rack Mounting Brackets, Smart UPS signalling RS-232 cable, USB cable, User Manual, Web/SNMP Management Card
Dimensions	48.30cm (W) x 66.0cm (D) x 8.90cm (H) - Weight 43.64kg
