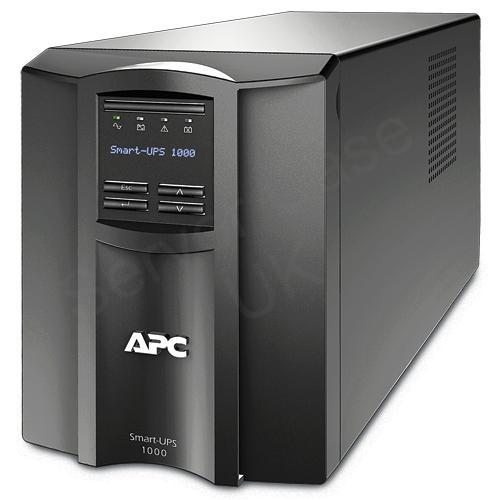

APC Smart-UPS LCD 1000VA 670W 230V with DB-9 RS-232/SmartSlot/USB Interface

APC award-winning Smart-UPS is the most popular UPS in the world for servers, storage and networks. Trusted to protect critical data and equipment from power problems by supplying clean and reliable network-grade power. In addition to legendary reliability and manageability, Smart-UPS have extremely high efficiency at low, medium and high load levels making them ideal for today�s multi-core or virtualized servers that have varying load consumption. Available in a variety of form factors (tower, rack mount, rack/tower convertible) there is a model for every application and budget. Rack mounted Smart-UPS are ideal for powering Blade or density optimized servers in a distributed power protection environment as the primary or redundant protection. Smart-UPS models have long been considered the benchmark for all network and server UPS's.



Intelligent and efficient network power protection from entry level to scaleable runtime. Ideal for servers, point-of-sale, routers, switches, hubs and other network devices. Smart-UPS feature a 16-segment LED display, extended range automatic voltage regulation (AVR), and pure sine wave output on battery. Additional manageability options are available through the Smart-Slot interface, which is an internal slot for the installation of optional accessory cards.Features

• APC Smart-UPS LCD 1000VA 670W 230V
• Interface Port(s): DB-9 RS-232, SmartSlot, USB

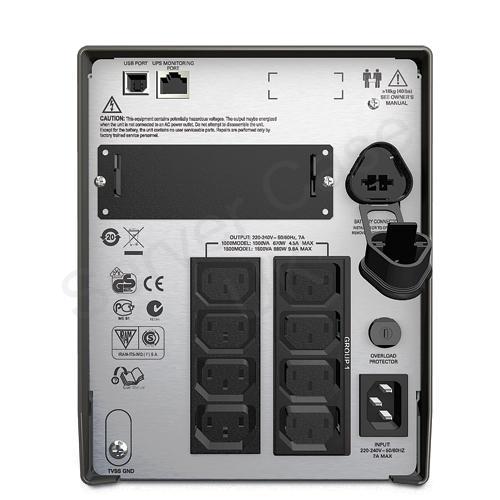

• Input Connections: IEC-320-C14
• Output Connections: (8) IEC 320 C13, (2) IEC Jumpers
• Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof.
• Intuitive LCD interface: Provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys
• Predictive replace battery date: Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning
• InfraStruXure Central compatible: Enables centralized management via APC InfraStruXure Central
• Colour: Black
• Three years repair or replace (excluding battery) and 2 year for battery

Specifications

Attributes
Typical backup time at half load	21.0 minutes
Typical backup at full load	6.0 minutes
Waveform Type	Sinewave
Control Panel	Multi-function LCD status and control console
Audible Alarm	Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
Compliance
Safety	Regulatory Approvals: C-tick,CE,EN 50091-1,EN 50091-2,VDE �Environmental Compliance: RoHS 7b Exemption,China RoHS,REACH: Contains No SVHCs
Electrical
Battery Type	Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
Typical Recharge Time	3 Hours
Output Capacity	1.0kVA
Output Wattage	0.67kW
Output Voltage	230V AC
Max Configurable Capacity	1.0kVA
Input Voltage Range	160 to 286V AC
Environmental
Environmental	Operating Temperature 0 to 40�C - Humidity 0 to 95%
Noise Level	40dbA
Filtering
Filtering	Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449
Surge Energy	459 Joules
Output Distortion	less than 5%
Crest Factor	up to 5 : 1
General
Product Family	Smart-UPS
Product Type	Uninterruptible Power Supply
Warranty	Three years repair or replace (excluding battery) and 2 year for battery.
Barcode	0731304268673
Interfaces/Ports
Input Connection type	IEC-320-C14
Output Connections	(8) IEC 320 C13, (2) IEC Jumpers
Interface Port	DB-9 RS-232, Smart-Slot, USB
Physical
Case Colour	Black
In The Box	APC Smart-UPS 1000VA, CD with software, Documentation CD, Installation guide, Smart UPS signalling RS-232 cable, USB cable
Dimensions	17.1cm (W) x 43.9cm (D) x 21.9cm (H) - Weight 18.86kg
