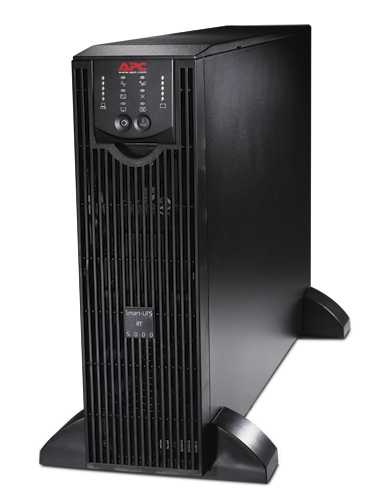

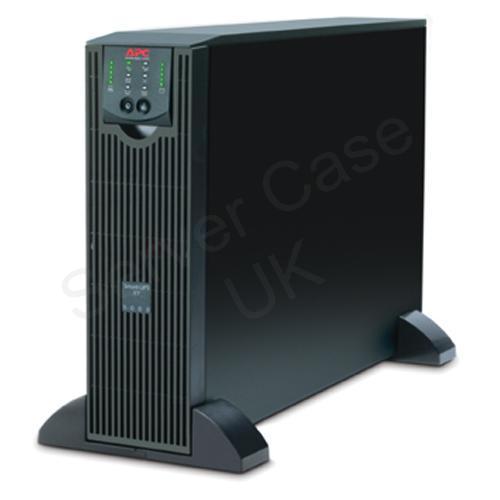

APC Smart-UPS RT 5000VA 3500W 230V RS-232/Smart-Slot/RJ-45 Rackmount (Black)

APC Smart-UPS RT is a family of high-density, performance UPSs for voice and data networks, medical labs, and light industrial applications. Capable of supporting 10kVA in a 6U rack/tower convertible form, users can support power hungry blade servers or heavily loaded equipment racks. This flexible form factor allows standardization across multiple applications. High power internal chargers allow virtually unlimited additional matching battery packs to comply with aggressive runtime demands of business-critical systems. Customers with harsh power environments looking for extremely tight voltage and frequency regulation, internal bypass, and input power factor correction typical of double conversion online topology will get them in the Smart-UPS RT.

Features

• APC Smart-UPS RT 5000VA 3500W 230V RS-232/Smart-Slot/RJ-45 Rackmount (Black)
• Output Power Capacity: 3500 Watts / 5000 VA
• Input Connections: Hard Wire 3-wire
• Output Connections: (8) IEC 320 C13, (2) IEC 320 C19, (6) IEC Jumpers
• Nominal Input/Output Voltage: 120V
• Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
• Typical recharge time: 2.50 hour(s)
• Typical Backup Time at Full Load: 5 minutes (3500 Watts)
• Typical Backup Time at Half Load: 15.4 minutes (1750 Watts)
• Control panel: LED status display with load and battery bar-graphs and On Line : On Battery : Replace Battery : and Overload Bypass Indicators
• Audible Alarm: Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
• Colour: Black
• Two years repair or replace

Specifications

Attributes
Typical backup time at half load	15.4 minutes
Typical backup at full load	5.0 minutes
Waveform Type	Sinewave
Control Panel	LED status display with load and battery bar-graphs and On Line : On Battery : Replace Battery : Overload and Bypass Indicators
Audible Alarm	Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
Compliance
Approvals	C-tick,CE,EN 50091-1,EN 50091-2,EN 55022 Class A,EN 60950,EN 61000-3-2,GOST,VDE
Electrical
Battery Type	Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
Typical Recharge Time	2.5 Hours
Output Capacity	5kVA
Output Wattage	3.5kW
Output Voltage	230V AC
Max Configurable Capacity	5kVA
Input Voltage Range	160 to 280V AC
Environmental
Environmental	Operating Temperature 0 to 40�C - Humidity 0 to 95%
Noise Level	55dbA
Filtering
Filtering	Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449
Surge Energy	480 Joules
Output Distortion	less than 3%
Crest Factor	3 : 1
General
Product Family	Smart-UPS RT
Product Type	Uninterruptible Power Supply
Warranty	Two years repair or replace warranty.
Barcode	5051964144144
Interfaces/Ports
Input Connection type	Hard Wire 3-wire

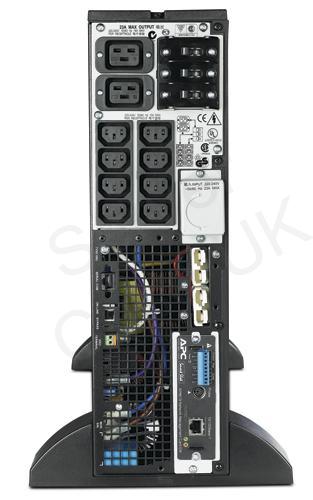

Output Connections	(8) IEC 320 C13, (2) IEC 320 C19, (6) IEC Jumpers
Interface Port	DB-9 RS-232,RJ-45 10/100 Base-T,Smart-Slot
Physical
Case Colour	Black
In The Box	Smart-UPS RT, CD with software, Smart UPS signalling RS-232 cable, User Manual, Web/SNMP Management Card
Dimensions	13.0cm (W) x 66.0cm (D) x 43.2cm (H) - Weight 54.55kg
