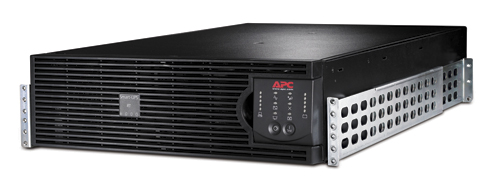

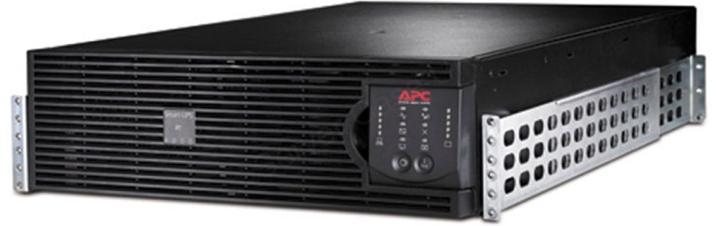

APC Smart-UPS RT 3U Rackmount UPS 6000VA 4200W 230V

Smart-UPS RT is a family of high preformance UPSs for servers, networking equipment, telecommunication systems, industrial and medical equipment, and other mission-critical applications. Smart-UPS RT UPSs are based on the field-proven, industry-leading Smart-UPS functionality, but features double conversion on-line topology, which delivers tight voltage and frequency regulation, zero transfer time to and from battery, and input power factor correction. While offering advanced performance and high availability features, the Smart-UPS RT can be managed using PowerChute software, as well as an array of SmartSlot accessories.



APC Smart-UPS RT, 6000VA/4200W, Input 230V/Output 230V, Interface Port DB-9 RS-232, RJ-45 10/100 Base-T, Smart-Slot, Extended runtime model, Rack Height 3U, Input Connections: Hard Wire 3-wire, Output Connections: (8) IEC 320 C13, (2) IEC 320 C19 and (6) IEC Jumpers.Features

• APC Smart-UPS RT 6000VA 4200W 230V Rackmount 3U
• Input Connections: Hard Wire 3-wire
• Output Connections: (8) IEC 320 C13, (2) IEC 320 C19, (6) IEC Jumpers
• Output Power Capacity: 4200 Watts / 6000 VA
• Nominal Input/Output Voltage: 230V
• Input Frequency: 50/60 Hz +/- 5 Hz (auto sensing)
• Output Frequency (sync to mains): 50/60 Hz +/- 3 Hz user adjustable +/- 0.1
• Bypass: Internal Bypass (Automatic and Manual)
• Maintenance-free sealed Lead-Acid battery with suspended electrolyte
• Interface Port(s): DB-9 RS-232, RJ-45 10/100 Base-T, Smart-Slot
• LED status display
• Audible alarms
• Online Thermal Dissipation: 1040 BTU/hr
• Colour: Black
• Two years repair or replace

Specifications

Attributes
Typical backup time at half load	11.9 minutes
Typical backup at full load	3.3 minutes
Waveform Type	Sinewave
Control Panel	LED status display with load and battery bar-graphs and On Line : On Battery : Replace Battery : Overload and Bypass Indicators
Audible Alarm	Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
Compliance
Approvals	C-tick,CE,EN 50091-1,EN 50091-2,EN 55022 Class A,EN 60950,EN 61000-3-2,GOST,VDE
Electrical
Battery Type	Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
Typical Recharge Time	2.5 Hours
Output Capacity	6.0kVA
Output Wattage	4.2kW
Output Voltage	230V AC
Max Configurable Capacity	6.0kVA
Input Voltage Range	160 to 280V AC
Environmental
Environmental	Operating Temperature 0 to 40�C - Humidity 0 to 95%
Filtering
Filtering	Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449
Surge Energy	480 Joules
Output Distortion	less than 3%
Crest Factor	3 : 1
General
Product Family	Smart-UPS RT
Product Type	Uninterruptible Power Supply
Warranty	Two years repair or replace, optional on-site warranties available, optional extended warranties available.
Interfaces/Ports
Input Connection type	Hard Wire 3-wire

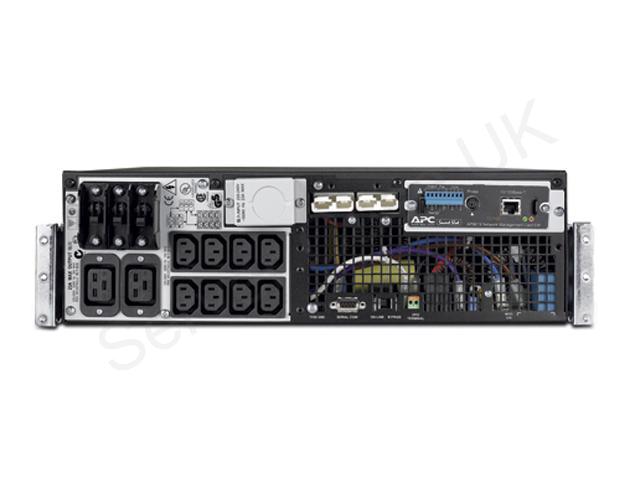

Output Connections	(8) IEC 320 C13, (2) IEC 320 C19, (6) IEC Jumpers
Interface Port	DB-9 RS-232,RJ-45 10/100 Base-T,Smart-Slot
Physical
Case Colour	Black
In The Box	CD with software, Rack Mounting support rails, Smart UPS signalling RS-232 cable, User Manual, Web/SNMP Management Card
Dimensions	43.20cm (W) x 66.0cm (D) x 13.30cm (H) - Weight 54.55kg
