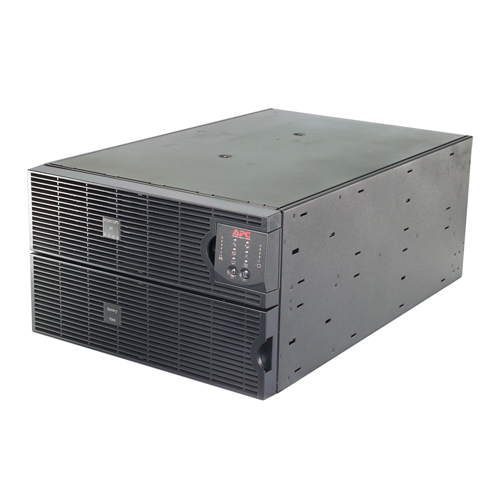

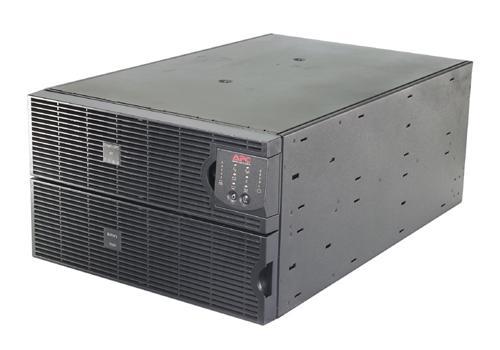

APC Smart-UPS RT 8000VA 6400W 230V Rackmount

APC Smart-UPS RT is a family of high-density, performance UPSs for voice and data networks, medical labs, and light industrial applications. Capable of supporting 10kVA in a 6U rack/tower convertible form, users can support power hungry blade servers or heavily loaded equipment racks. This flexible form factor allows standardization across multiple applications. High power internal chargers allow virtually unlimited additional matching battery packs to comply with aggressive runtime demands of business-critical systems. Customers with harsh power environments looking for extremely tight voltage and frequency regulation, internal bypass, and input power factor correction typical of double conversion online topology will get them in the Smart-UPS RT.



APC Smart-UPS RT, 8000VA/6400W, Input 230V/Output 230V, Interface Port DB-9 RS-232, RJ-45 10/100 Base-T, Smart-Slot, Extended runtime model, Rack Height 6 U.Features

• APC Smart-UPS RT Rackmount
• Output Power Capacity: 6400 Watts / 8000 VA
• Nominal Input/Output Voltage: 230V
• Input Connections: Hard Wire 3 wire (1PH+N+G) Hard Wire 5-wire (3PH + N + G)
• Output Connections: Hard Wire 3-wire (H N + G) (4) IEC 320 C13 (4) IEC 320 C19 (4) IEC Jumpers
• Bypass: Internal Bypass (Automatic and Manual)
• Input Frequency: 50/60 Hz +/- 5 Hz (auto sensing)
• Output Frequency (sync to mains): 50/60 Hz +/- 3 Hz user adjustable +/- 0.1
• Battery type: Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
• Typical Backup Time at Half Load: 17.9 minutes (3200 Watts)
• Typical Backup Time at Full Load: 6.3 minutes (6400 Watts)
• Included Battery Modules: 4
• Interface Port(s): DB-9 RS-232, RJ-45 10/100 Base-T, Smart-Slot
• Two years repair or replace

Specifications

Attributes
Typical backup time at half load	17.9 minutes
Typical backup at full load	6.3 minutes
Waveform Type	Sinewave
Control Panel	LED status display with load and battery bar-graphs and On Line : On Battery : Replace Battery : Overload and Bypass Indicators
Audible Alarm	Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
Compliance
Approvals	C-tick,CE,EN 50091-1,EN 50091-2,EN 55022 Class A,EN 60950,EN 61000-3-2,GOST,VDE
Electrical
Battery Type	Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
Typical Recharge Time	2.2 Hours
Output Capacity	8.0kVA
Output Wattage	6.4kW
Output Voltage	220 to 240V AC
Max Configurable Capacity	8.0kVA
Input Voltage Range	160 to 280V AC
Environmental
Environmental	Operating Temperature 0 to 40�C - Humidity 0 to 95%
Filtering
Filtering	Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449
Output Distortion	less than 3%
Crest Factor	3 : 1
General
Product Family	Smart-UPS RT
Product Type	Uninterruptible Power Supply
Warranty	Two years repair or replace.
Barcode	5051964143369
Interfaces/Ports
Input Connection type	Hard Wire 3 wire (1PH+N+G) Hard Wire 5-wire (3PH + N + G)

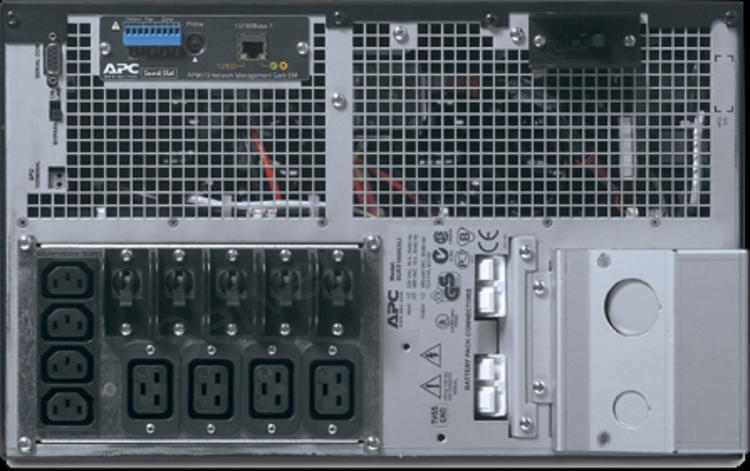

Output Connections	(1) Hard Wire 3-wire (H N + G) (4) IEC 320 C13 (4) IEC 320 C19 (4) IEC Jumpers
Interface Port	DB-9 RS-232, RJ-45 10/100 Base-T, Smart-Slot
RJ-45 Ports	1 x RJ-45
Serial Ports	1 x DB-9 (RS-232)
Physical
Case Colour	Black
In The Box	CD with software, Rack Mounting support rails, Service Manual, Smart UPS signalling RS-232 cable, User Manual, Web/SNMP Management Card
Dimensions	43.2cm (W) x 66.3cm (D) x 26.3cm (H) - Weight 110.91kg
