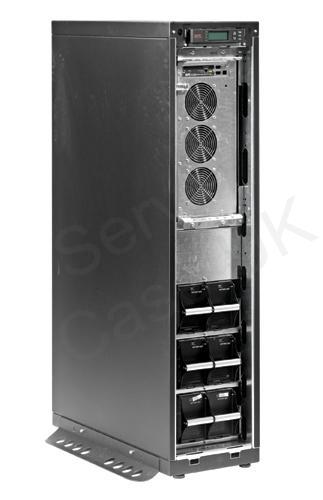

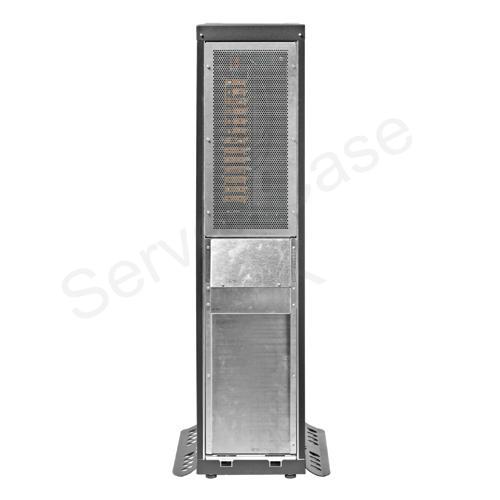

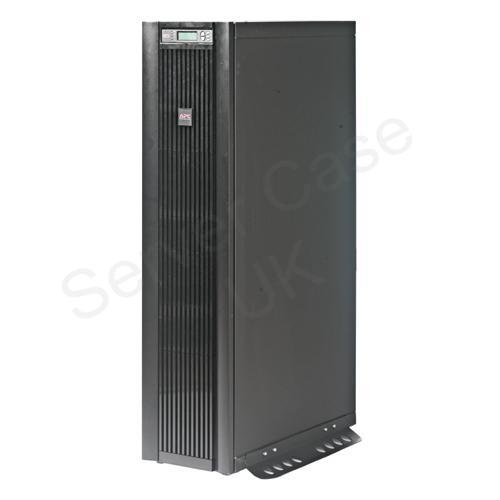

APC Smart-UPS VT 8kW 10kVA 400V with 2 Battery Modules Expandable to 2 and Internal Maintenance Bypass Input and Parallel Capable

Smart-UPS VT offers centralized three-phase power protection with the reliability of the award winning Smart-UPS family. Ideal for small data centres, large retail stores, regional offices, and laboratory equipment, the Smart-UPS VT features dual-mains input, automatic bypass, and scalable runtime with hot-swappable batteries for increased availability. Low cost of ownership is achieved through best-in-class efficiency and a reduction in rating of electrical infrastructure - wires, transformers, and generators. APC's Network Management Card with temperature monitoring provides remote monitoring and management through Web/SNMP. Serviceability is greatly enhanced with its user-replaceable batteries and manageable extended run frames. The Smart-UPS VT is the easiest UPS in its class to deploy, manage and maintain.



APC Smart-UPS VT, 8000 Watts / 10 kVA, Input 400V 3 Phase / Output 230V, 400V 3 Phase, Interface Port DB-9 RS-232, Smart-Slot, Extended runtime model.Features

• APC Smart-UPS VT with 2 Battery Modules Expandable to 2 and Internal Maintenance Bypass Input
• Output Power Capacity: 8000 Watts / 10000 VA
• Input Connection: Hard Wire 5 wire (3PH+N+G)
• Output Connections: (1) Hard Wire 4-wire (3PH + G), (1) Hard Wire 5-wire (3PH + N + G), (1) Screw Terminals
• Interface Port(s): DB-9 RS-232, SmartSlot
• Battery type: Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
• Parallel-capacity capable: Increases total power capacity by using multiple UPSs simultaneously
• Parallel-redundant capable: Power the connected equipment with multiple UPSs to increase system redundancy
• Multi-function LCD status and control console
• Audible Alarm: Audible and visible alarms prioritized by severity
• Bypass Voltage Tolerance: +/-10% settable from +/-4/6/8 and 10%
• One year repair or replace

Specifications

Attributes
Typical backup time at half load	46.5 minutes
Typical backup at full load	18.5 minutes
Waveform Type	Sinewave
Protection for data line	IP 20
Control Panel	Multi-function LCD status and control console
Audible Alarm	Audible and visible alarms prioritized by severity
Compliance
Performance	C-tick,CE,EN 50091-2,EN/IEC 62040-3,IEC 61000-3-2,IEC 61000-3-3,ISO 14001,ISO 9001,VFI-SS-112
Electrical
Battery Type	Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
Typical Recharge Time	5 Hours
Output Capacity	10kVA
Output Wattage	8kW
Output Voltage	Configurable for 380, 400 or 415V AC
Max Configurable Capacity	10kVA
Input Voltage Range	304 to 477V AC
Input Configuration	3 Phase
Environmental
Environmental	Operating Temperature 0 to 40�C - Humidity 0 to 95%
Noise Level	54dbA
Filtering
Output Distortion	less than 5%
Crest Factor	Unlimited
General
Product Family	Smart-UPS VT
Product Type	Uninterruptible Power Supply
Warranty	One year repair or replace.
Barcode	731304257042
Interfaces/Ports
Input Connection type	Hard Wire 5-wire (3PH + N + G)
Output Connections	(1) Hard Wire 4-wire (3PH + G), (1)Hard Wire 5-wire (3PH + N + G), (1)Screw Terminals
Interface Port	DB-9 RS-232, Smart-Slot
Physical
Case Colour	Black
In The Box	APC Smart-UPS VT, Battery modules ship installed, Bolt down brackets, CD with software, Installation guide, User Manual, Web/SNMP Management Card
Dimensions	35.2cm (W) x 83.8cm (D) x 149.0cm (H) - Weight 396.82kg
