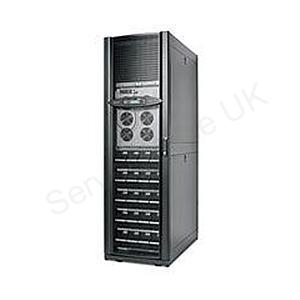

APC Smart-UPS VT 30000VA 400V Rack Mounted with 3 Battery Modules Expandable to 5/PDU/Startup

Smart-UPS VT offers centralized three-phase power protection with the reliability of the award winning Smart-UPS family. Ideal for small data centers, large retail stores, regional offices, and dense power requirements, the Smart-UPS VT includes dual-mains input, automatic and maintenance bypasses, and scalable runtime with hot-swappable batteries for increased availability. Low cost of ownership is achieved through best-in-class efficiency and a reduction in rating of electrical infrastructure - wires, transformers, and generators due the Smart-UPS VT's Soft Start feature.



APC Smart-UPS VT, 30000VA/24000W, Input 400V 3PH/Output 230V, 400V 3PH, Extended runtime model.Features

• APC Smart-UPS VT 30000VA 400V Rack Mounted with 3 Battery Modules Expandable to 5/PDU/Startup
• Field-replaceable power distribution panel
• Locking cabinet
• Multiple cable-entry points
• Resettable Circuit Breakers
• Output Power Capacity: 24000 Watts / 30000 VA
• Nominal Output Voltage: 230V,400V 3PH
• Nominal Input Voltage: 400V 3PH
• Output Connections: Hard Wire 5-wire (3PH + N + G) � (12) IEC 320 C19
• Input Connections: Hard Wire 5-wire (3PH + N + G)
• Maximum Input Current: 41A
• Battery Type: Valve Regulated Lead Acid (VRLA)
• Control panel: Multi-function LCD status and control console
• Audible Alarm: Audible and visible alarms : configurable delays
• Colour: Black
• One year repair or replace, Start-Up Service

Specifications

Attributes
Typical backup time at half load	18.3 minutes
Typical backup at full load	5.5 minutes
Waveform Type	Sinewave
Protection for data line	IP 20
Control Panel	Multi-function LCD status and control console
Audible Alarm	Audible and visible alarms : configurable delays
Compliance
Approvals	C-tick,CE,EN 50091-2,EN/IEC 62040-3,IEC 61000-3-2,IEC 61000-3-3,ISO 14001,ISO 9001,VFI-SS-112
Electrical
Battery Type	Valve Regulated Lead Acid
Typical Recharge Time	3 Hours
Output Capacity	30kVA
Output Wattage	24kW
Output Voltage	230 to 400V AC
Max Configurable Capacity	30kVA
Input Voltage Range	304 to 477V AC
Input Configuration	3 Phase
Environmental
Environmental	Operating Temperature 0 to 40�C - Humidity 0 to 95%
Filtering
Output Distortion	less than 5%
Crest Factor	Unlimited
General
Product Family	Smart-UPS VT
Product Type	Uninterruptible Power Supply
Warranty	One year repair or replace, Start-Up Service.
Interfaces/Ports
Input Connection type	Hard Wire 5-wire (3PH + N + G)
Output Connections	(1) Hard Wire 5-wire (3PH + N + G) (12) IEC 320 C19
Physical
Case Colour	Black
In The Box	CD with software, Installation Guide, Power modules ship installed, Smart UPS signalling RS-232 cable, Start up included, User Manual, Web/SNMP Management Card
Dimensions	60.0cm (W) x 107.5cm (D) x 199.5cm (H) - Weight 624kg
