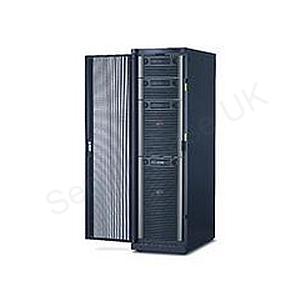

APC Symmetra LX 12KVA Scalable to 16KVA N+1 Rackmount

Engineered to deliver the highest level of business continuity possible, the Symmetra LX uses a modular, redundant architecture that can scale power and run-time as demand increases or when higher levels of availability are required. Advancements in this next generation design greatly decrease foot print or U-space needed in an equipment rack, increase speed and ease of deployment and reduce repair time. With built-in network manageability and a comprehensive portfolio available from 4-16 kVA N+1, the on-line Symmetra LX is the choice to protect high-performance IT and telecom equipment in computer rooms and small data centres.

Features

• Audible alarms
• Automatic internal bypass
• Automatic restart of loads after UPS shutdown
• Automatic self-test
• Battery modules connected in parallel
• Cold-start capable
• Configurable for N+1 internal redundancy
• Disconnected battery notification
• Field-replaceable power distribution panel
• Frequency and voltage regulation
• Generator compatible
• Hot Swap Batteries
• LED status indicators
• Hot-swappable power modules
• InfraStruXure Manager Compatible
• Input Power Factor Correction
• Intelligent Battery Management
• LCD display
• Manageable external batteries
• Modular design
• Network manageable
• Plug-and-Play external batteries
• Power conditioning
• Power Modules connected in parallel
• Predictive failure notification
• Programmable Frequency
• Rack/Tower Convertible
• Redundant Intelligence Modules
• Removable input/output wiring tray
• Resettable Circuit Breakers

Specifications

Attributes
Typical backup time at half load	20.2 minutes
Typical backup at full load	7.5 minutes
Waveform Type	Sinewave
Control Panel	Multi-function LCD status and control console
Audible Alarm	Audible and visible alarms prioritized by severity
Compliance
Approvals	C-tick, CE, EN 50091-1, EN 50091-2, EN 55022 Class A, EN 55024, EN 60950, GOST, IEC 60950, VDE
Electrical
Battery Type	Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
Output Capacity	12.0kVA
Output Wattage	8.4kW
Output Voltage	230V AC
Max Configurable Capacity	16.0kVA
Environmental
Environmental	Operating Temperature 0 to 40�C - Humidity 0 to 95%
Filtering
Crest Factor	up to 5 : 1
General
Product Family	Symmetra LX
Product Type	Uninterruptible Power Supply
Warranty	2 Years Repair or Replace.
Barcode	731304218913
Interfaces/Ports
Input Connection type	Hard Wire 3 wire (1PH+N+G) Hard Wire 5-wire (3PH + N + G)
Output Connections	(1) Hard Wire 3-wire (H N + G) (8) IEC 320 C13 (10) IEC 320 C19
Interface Port	DB-9 RS-232, Smart-Slot
Physical
Case Colour	Black/Silver
Dimensions	47.0cm (W) x 69.0cm (D) x 84.0cm (H) - Weight 243.0kg
