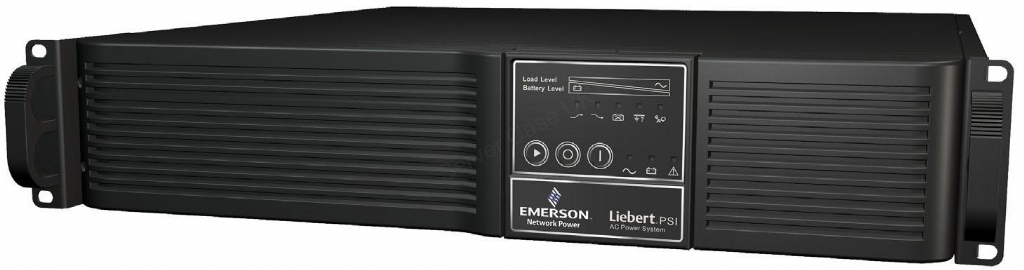

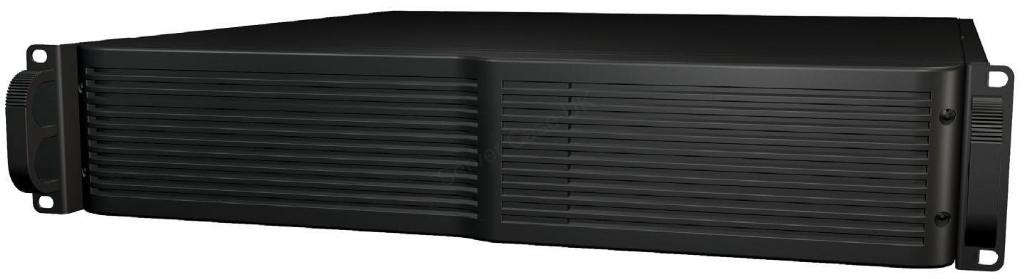

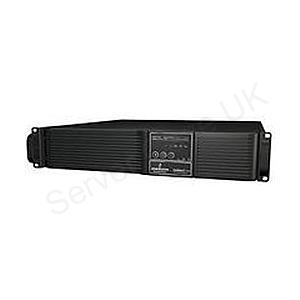

Liebert PSI-XR 1500VA Line-Interactive UPS System - 230V

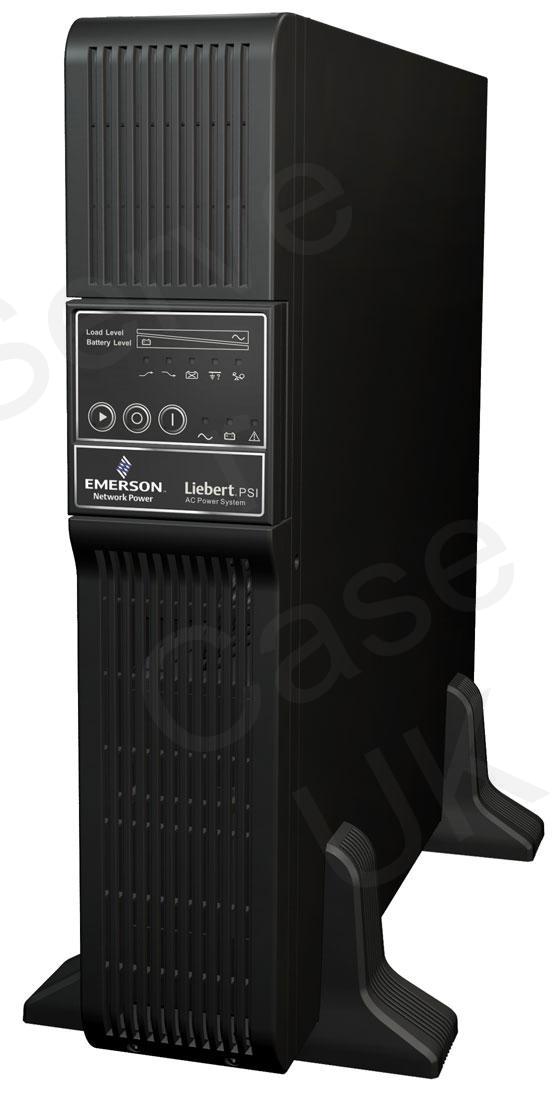

Liebert PSI-XR is a compact, line-interactive UPS system designed especially for IT applications such as network closets and small data centres. It provides reliable power protection for servers, critical nodes, network workstations, large network peripherals, network routers, bridges, hubs and other electronic equipment. Matching battery cabinets are available to extend the on-battery operating time. Liebert PowerSure PSI-XR standard model may rackmounted or setup in tower configuration. The UPS includes data line surge protection, lightning and surge protection, and optional communications for shutdown and reporting. The XR model offers extended battery runtime, with the addition of external battery cabinets. Rack mounting rail kit is included as standard.



Ideally Suited For: PCs � Network workstations � Servers � Network closets � Large network peripherals � VoIP.Features

• LED Indicators: LED status display with Normal, On Battery, Replace Battery, Over Temp, Buck/Boost, % Load, Battery Capacity, Overload, Fault, and Site Wiring Fault Indicator
• Data Line Protection: RJ-45 network protection
• Cooling: Fan-cooled
• Provides six to seven battery-backed outlets depending on model size, allowing additional equipment to be connected to the UPS via the 15, 20 or 30 Amp receptacles
• Configurable input voltage window allows the UPS to be properly matched to the incoming utility power
• Automatic Frequency Sensing allows the UPS to automatically adjust to the input frequency, 50Hz or 60Hz
• Greater than five minutes of battery backup time at full load when utility fails
• Comprehensive analysis of the condition of the batteries within the UPS and will notify you when the internal batteries need to be replaced. The battery test feature can also be programmed for automatic operation using Liebert shutdown software.
• Allows fast and easy maintenance with user-replaceable hot-swappable batteries
• Provides remote emergency power off for safe emergency shutdown
• 0.9 Output Power Factor provides more power for your protected load, and more energy efficient operation

Specifications

Attributes
Typical backup time at half load	10 minutes
Typical backup at full load	5 minutes
Waveform Type	Sinewave
Compliance
Safety	IEC62040-1-1
EMC	IEC/EN/AS 62040-2 2nd Ed Class A � Transportation: ISTA Procedure 1A Certification
Electrical
Battery Type	Valve Regulated Lead Acid
Typical Recharge Time	5 Hours
Output Capacity	1.5kVA
Output Wattage	13.5kW
Output Voltage	230V AC
Input Voltage Range	165 to 300V AC
Environmental
Environmental	Operating Temperature 0 to 40�C - Humidity 0 to 90%
Noise Level	40dbA
Filtering
Surge Energy	220 Joules
General
Model Name	PSI- XR
Product Type	Uninterruptible Power Supply
Warranty	2 Year
Barcode	0835514007630
Interfaces/Ports
Input Connection type	IEC-320 C14
Output Connections	6 x IEC 320 C13
USB Ports	1 x USB
Serial Ports	1 x DB-9
Physical
Case Colour	Black
In The Box	PS2200RT3-120XR UPS System, Tower Stands, Rack Mount Handles, DB9 Contact Closure Cable, USB Cable, and fixed rails
Dimensions	44.0cm (W) x 70.05cm (D) x 8.8cm (H) - Weight 46kg
