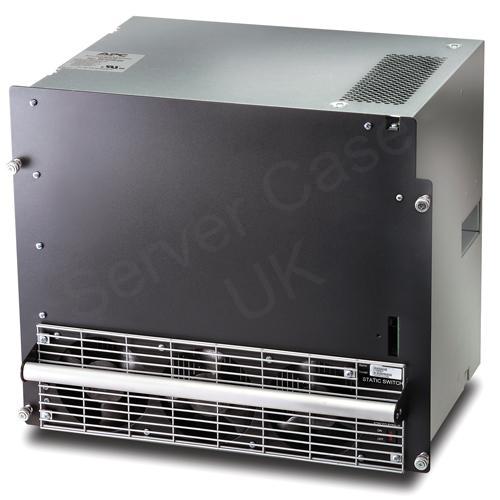

APC Symmetra PX 80kW Static Switch Module 400V

Right-sized, modular, scalable 3-phase power protection for any size data centre or high density power zone. The APC Symmetra PX is a world class, redundant, scalable, power protection system designed to cost effectively provide high levels of availability. Seamlessly integrating into today's state-of-the-art data centre designs, the Symmetra PX is a true modular system. Made up of dedicated and redundant modules--power, intelligence, battery and bypass, all engineered into a design that is easily and efficiently serviceable, this architecture can scale power and runtime as demand grows or as higher levels of availability are required. Symmetra PX serves as the core power train that drives APC InfraStruXure systems for small and medium data centres but can also power individual zones of larger data centres. Highly manageable, the Symmetra PX features self-diagnostic capabilities and standardized modules which mitigate the risk of human error resulting in increased overall data centre reliability.

Features

• APC Symmetra PX 80kW Static Switch Module 400V
• Output Power Capacity: 80 kW / 80 kVA
• Nominal Output Voltage: 230V,400V 3PH
• Configurable for N+1 internal redundancy: Provides high availabilty through redundancy by allowing configuration with one more Power Module than is necessary to support the connected load
• Redundant Intelligence Modules: Provides higher availability to the UPS connected loads by giving redundant communication paths to critical UPS functions
• Power Modules connected in parallel: Enhances availability by allowing immediate, seamless recovery from isolated module failures
• Battery modules connected in parallel: Delivers higher availability through redundant batteries
• Hot-swappable power modules: Ensures clean, uninterrupted power to protected equipment during Power Module replacement
• Hot-swappable intelligence modules: Ensures clean, uninterrupted power to protected equipment during Intelligence Module replacement
• Hot-swappable batteries ensures clean, uninterrupted power to protected equipment while batteries are being replaced
• Modular design: Provides fast serviceability and reduced maintenance requirements via self-diagnosing, field-replaceable modules
• Network manageable: Provides remote management of the UPS over the network
• Automatic internal bypass: Supplies utility power to the connected loads in the event of a UPS overload condition or fault

Specifications

Electrical
Voltage	400VAC
Frequency	50 to 60Hz
Input Configuration	3 Phase
Output Capacity	80kVA
Output Wattage	80kW
Environmental
Environmental	Operating Temperature 0 to 40�C
General
Product Family	Symmetra PX
Product Type	Uninterruptible Power Supply
Barcode	731304210986
Physical
Case Colour	Black
Dimensions	48.3cm (W) x 39.4cm (D) x 41.3cm (H) - Weight 35.0kg
