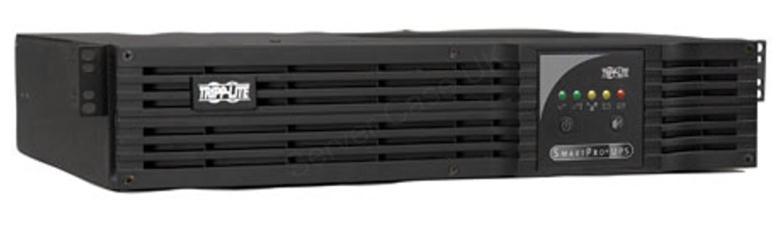

Tripp Lite SmartPro Rack/Tower Uninterruptible Power Supply 1.5kVA Extended-run USB/Serial (C13 Outlets)

Tripp Lite's SMX1500XLRT2U intelligent, line interactive rack/tower uninterruptible power supply prevents data loss, downtime and equipment damage due to power outages, voltage fluctuations and transient surges. Requires only two rack spaces (2U) in a standard rack enclosure. Large internal batteries offer 18 minutes half load runtime and 7 minutes at full load. Runtime is expandable with optional BP36V15-2U external battery pack (limit 1) or BP36V42-3U (multi-pack compatible). Maintains regulated 230V nominal output without using battery power during brownouts and overvoltages from 151 to 282V. 1500VA/1000 watt power handling capability and full time sine wave output offers guaranteed compatibility with networking, telecom and other sensitive electronic applications. Includes a total of 8 outlets with 3 load banks that are individually switchable via software interface to reboot select equipment on demand or shed less significant loads to extend battery runtime for more critical equipment. Supports simultaneous remote monitoring of UPS and site power conditions via built-in USB and DB9 monitoring ports. Includes PowerAlert UPS monitoring and unattended shutdown software with complete cabling. Built-in accessory slot supports SNMP with optional SNMPWEBCARD adapter. Emergency Power Off (EPO) interface offers option for instantaneous power-off of UPS and connected equipment in the case of fire or emergency. Multi-function audible alarms and set of 5 front panel LEDs offer at-a-glance notification of UPS and line power status. Network-grade AC surge suppression protects equipment from damage and performance problems resulting from transient surges and line noise. Attractive all-black color scheme.

Features

• 1500VA / 1.5kVA line interactive 2U rack / tower UPS; Sine wave output
• 230V nominal output during brownouts to 151V and overvoltages to 282V
• USB, RS232, EPO and optional SNMP/Web card interface
• Expandable runtime, Status LEDs with load and battery capacity display
• 3 independently switchable output load banks; 13.5 in / 34.3 cm depth
• C14 input; 8 C13 outlets; Includes 2 C13 to C14 cables
• Emergency Power Off (EPO) interface with cable
• Built-in accessory slot supports SNMP with optional SNMPWEBCARD adaptor
• Multi-function audible alarms and set of 5 front panel LEDs
• Network-grade AC surge suppression
• Attractive all-black colour scheme
• UPS battery set ships fully assembled, no time consuming connection of internal batteries by user is necessary

Specifications

Attributes
Typical backup time at half load	18 minutes
Typical backup at full load	7 minutes
Waveform Type	Sinewave
Control Panel	LED Display
Audible Alarm	Power-failure, Low-battery, Overload
Compliance
Approvals	Tested to CE (EU)
Electrical
Typical Recharge Time	4.5 Hours
Output Capacity	1.5kVA
Output Wattage	1.0kW
Output Voltage	220 to 240V AC
Max Configurable Capacity	1.5kVA
Input Voltage Range	230V AC
Environmental
Environmental	Operating Temperature 0 to 40�C - Humidity 0 to 95%
Filtering
Surge Energy	480 Joules
Output Distortion	less than 5%
General
Product Family	SmartPro
Product Type	Uninterruptible Power Supply
Warranty	2 years limited warranty.
Barcode	037332119216
Interfaces/Ports

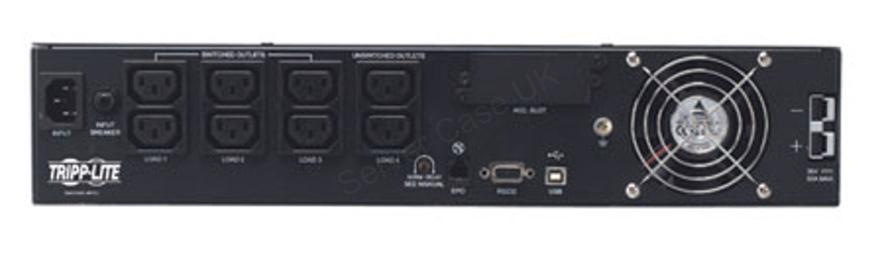

Input Connection type	1 x IEC-320-C14
Output Connections	8 x IEC 320 C13
Interface Port	DB-9 RS-232, USB
USB Ports	1 x USB
Serial Ports	1 x DB-9 (RS-232)
Physical
Case Colour	Black
Number of LED Indicators	5
LED Display/Indicators	Line power, Battery power, Overload, Voltage regulation, Battery low/replace status
In The Box	SMX1500XLRT2U UPS System with mounting hardware; Two 1.8m IEC320-C13 to C14 load jumper cables; Cabling for USB & DB9 monitoring and EPO switching; PowerAlert unattended shutdown and UPS/Power monitoring software; Warranty information and instruction manual
Dimensions	8.9cm (W) x 34.3cm (D) x 44.4cm (H) - Weight 19.4kg
