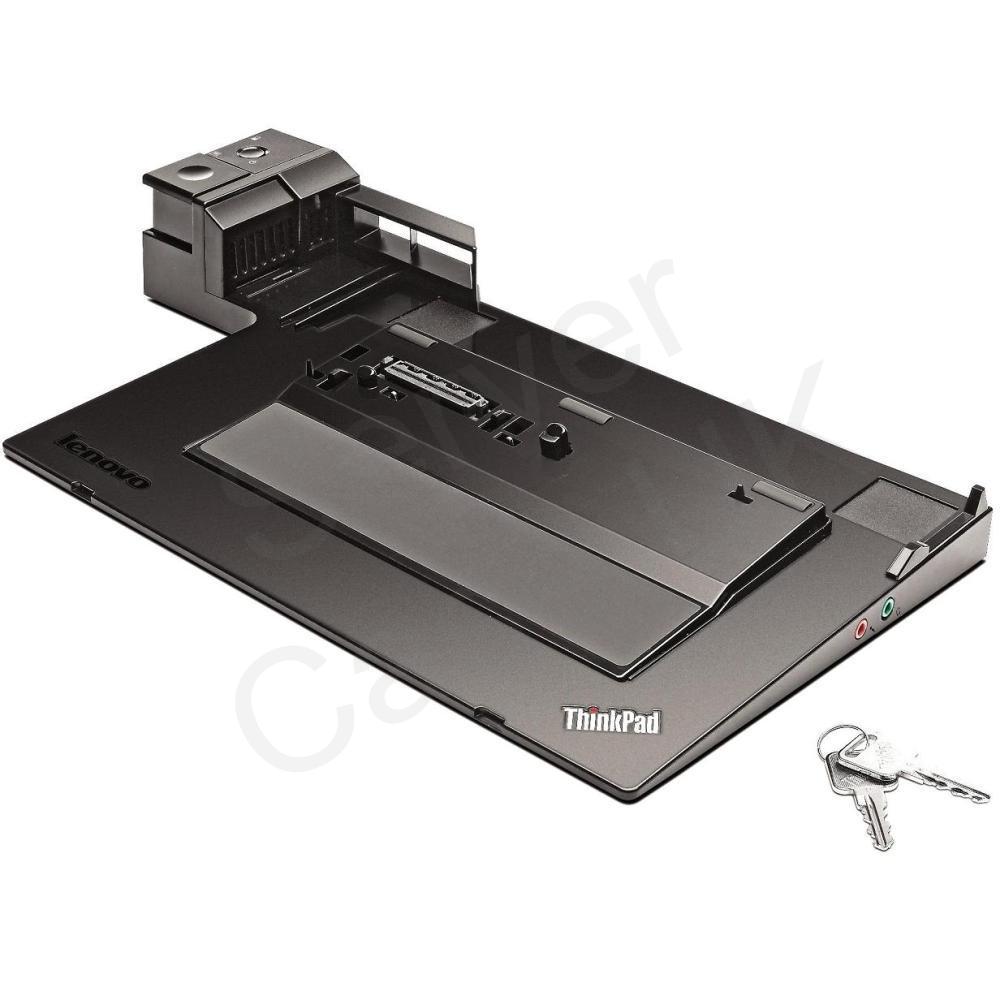

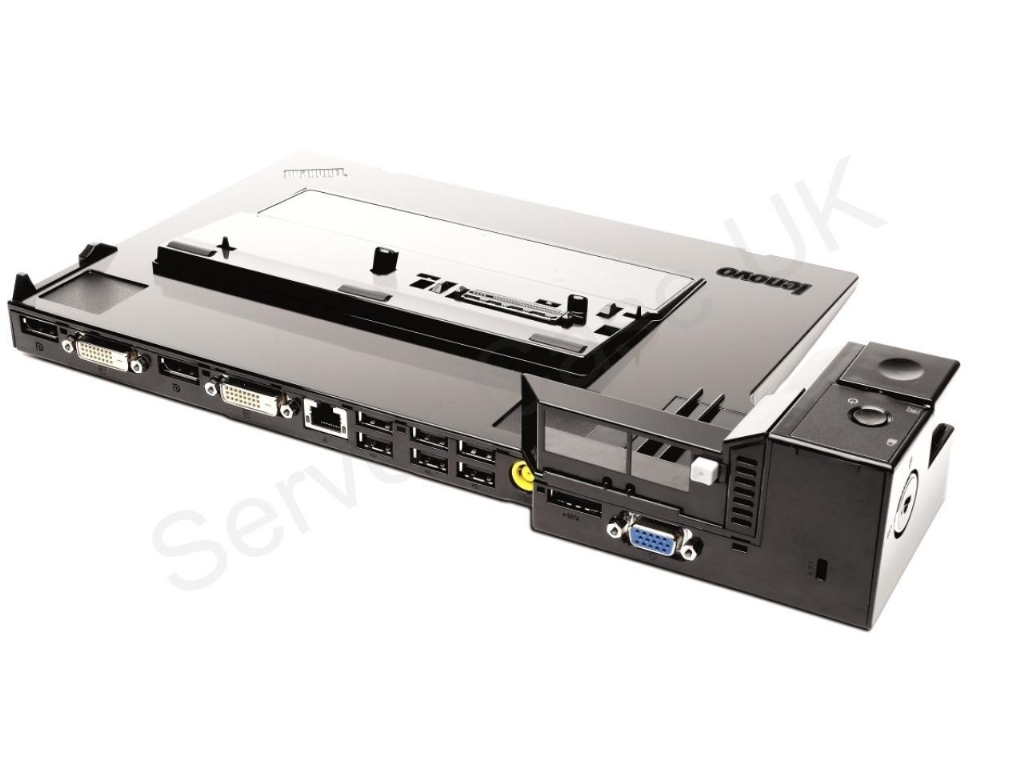

Lenovo Mini Dock Plus Series 3 USB 3.0 90W for ThinkPad Notebooks (Europe)

The ThinkPad Mini Dock Plus Series 3 (90W) packs more power into the popular, full featured Mini Dock Plus. This version ships with the standard array of advanced features plus a 90 watt AC adaptor, optimized for use with notebooks with Quad Core discrete graphics. The ThinkPad Mini Dock Series 3 with USB 3.0 family is ideal for notebook users who need instant connectivity to Ethernet, multiple USB devices, audio and video equipment, and robust key lock security.

Features

• Left corner alignment for easy system attachment
• Convenient eject button for one-step system removal
• 6 x USB 2.0 ports and 1 x USB 3.0 port
• Multiple video ports: 1 VGA monitor, 2 DVI, 2 DisplayPort
• Audio ports: Analog microphone in, headphone out
• RJ-45 Ethernet port
• Integrated key lock and cable lock slot for physical security
• Ships with a 90W AC adaptor

Specifications

Compatibility
Compatibility	ThinkPad L412, ThinkPad L420, ThinkPad L430, ThinkPad L512, ThinkPad L520, ThinkPad L530, ThinkPad T400s, ThinkPad T410, ThinkPad T410i, ThinkPad T410s, ThinkPad T410si, ThinkPad T420, ThinkPad T420i, ThinkPad T420s, ThinkPad T420si, ThinkPad T430, ThinkPad T430i, ThinkPad T430s, ThinkPad T430si, ThinkPad T510, ThinkPad T510i, ThinkPad T520, ThinkPad T520i, ThinkPad T530, ThinkPad T530i, ThinkPad W530, ThinkPad X220, ThinkPad X230, ThinkPad X230i
Compliance
Compliance Standards	FCC, CE, C-Tick, VCCI, BSMI, KCC (Korea), CB, UL + cUL, NOM, GOST-R
Electrical
Voltage/Power/Frequency	100 to 240V AC
Environmental
Environmental	Operating Temperature 0 to 40�C
Relative Humidity	8 to 90%
General
Product Family	ThinkPad
Product Type	Docking Station
Warranty	One year, Customer Replaceable Unit (CRU).
Barcode	0886843390658
Interfaces/Ports
VGA Port	1 x VGA
USB Ports	6 x USB 2.0, 1 x USB 3.0
RJ-45 Ports	1 x RJ-45
Microphone In Port	1 x Microphone Jack
DisplayPort	2 x Display Port
Headphone/Audio Line Out	Headphones/Speaker/Line-out jack
DVI Ports	2 x DVI
Physical
Cable Lock Slot	Yes
In The Box	The ThinkPad Mini Dock Plus Series 3 with USB 3.0, Two Security Keys, ThinkPad 90W AC adaptor, Publications
Dimensions	34.5cm (W) x 19.9cm (D) x 5.6cm (H) - Weight 0.94kg
Enclosure type	External
