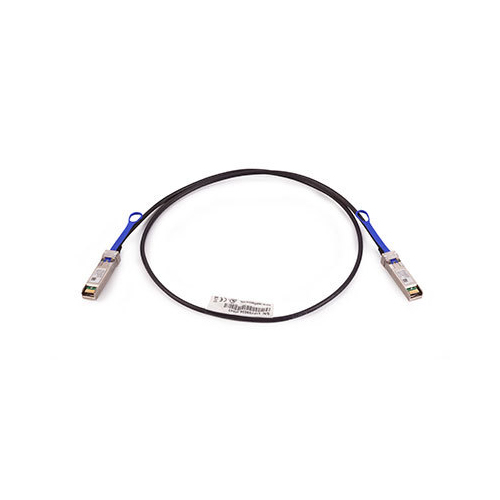

The Mellanox MCP2M00-AXXX passive copper cable is a high Max Speed, cost-effective 25Gbp/s Ethernet connectivity solution designed to meet the growing needs for higher bandwidth in data centers.
The MCP2M00 passive copper cable contains a single high-Max Speed copper pair, operating at data rates of up to 25 Gb/s. The cables are compliant with IEEE P802.3by Ethernet standard and SFF-8402 SFP28 standard. Each SFP28 connector comprises an EEPROM providing product information which can be read by the host system.
Mellanox's unique quality passive copper cable solutions provide efficient connectivity for short distance interconnects. It enables higher port bandwidth, density and configurability at a low cost and reduced power requirement in the data centers. Rigorous production testing ensures the best out-ofthe-box installation experience, performance, and durability.
General Information
- Manufacturer: Mellanox Technologies Ltd
- Manufacturer Part Number: MCP2M00-A001
- Manufacturer Website Address: http://www.mellanox.com
- Brand Name: Mellanox
- Product Name: Passive Copper Cable, ETH, up to 25Gb/s, SFP28, 1m
- Product Type: Network Cable
Technical Information
- Cable Type: SFP28
- Cable Length: 3.28 ft
- Connector on First End: 1 x SFP28 Network
- Connector on Second End: 1 x SFP28 Network
- Features: Passive
- Device Supported: Network Device
- American Wire Gauge: 30 AWG
- Data Transfer Rate: 3.13 GB/s
Miscellaneous
- Green Compliant: Yes
- Green Compliance Certificate/Authority: RoHS-6
