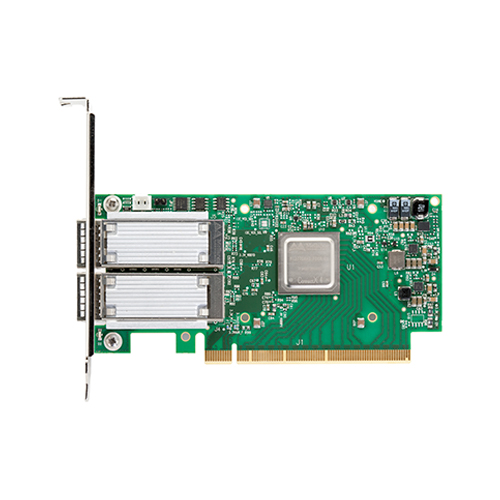

Mellanox MCX456A-ECAT ConnectX-4 VPI Adapter Card EDR IB and 100GbE Dual-Port QSFP28 PCIe3.0 x16 ROHS R6

ConnectX-4 adapter cards with Virtual Protocol Interconnect (VPI), supporting EDR 100Gb/s InfiniBand and 100Gb/s Ethernet connectivity, provide the highest performance and most flexible solution for high-performance, Web 2.0, Cloud, data analytics, database, and storage platforms.

With the exponential growth of data being shared and stored by applications and social networks, the need for high-Max Speed and high performance compute and storage data centers is skyrocketing.

ConnectX-4 provides exceptional high perfor-mance for the most demanding data centers, public and private clouds, Web2.0 and Big Data applications, as well as High-Performance Computing (HPC) and Storage systems, enabling today's corporations to meet the demands of the data explosion.

ConnectX-4 provides an unmatched combination of 100Gb/s bandwidth in a single port, the lowest available latency, and specific hardware offloads, addressing both today's and the next generation's compute and storage data center demands.

• Manufacturer: Mellanox Technologies Ltd
• Manufacturer Part Number: MCX456A-ECAT
• Manufacturer Website Address: http://www.mellanox.com
• Brand Name: Mellanox
• Product Line: ConnectX
• Product Name: ConnectX VPI Infiniband Host Bus Adapter
• Product Type: Infiniband Host Bus Adapter

• Total Number of Infiniband Ports: 2
• Host Interface: PCI Express 3.0 x16

• Data Transfer Rate: 100 Gbit/s

• Expansion Slot Type: QSFP

• Form Factor: Plug-in Card
• Card Height: Low-profile
• Height: 2.7"
• Width: 5.6"

• Green Compliant: Yes
• Green Compliance Certificate/Authority: RoHS-6
