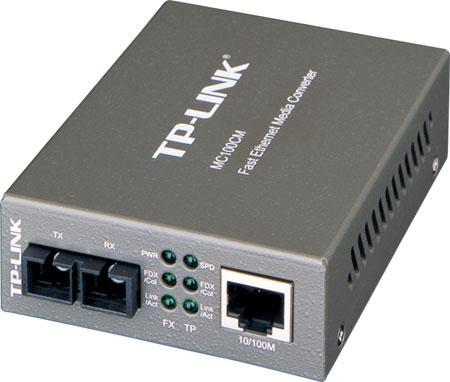

TP-Link MC100CM Fast Ethernet Media Converter (SC, Multi-mode)

The MC100CM is a media converter designed to convert 100BASE-FX fiber to 100Base-TX copper media or vice versa. Designed under IEEE 802.3u 10/100Base-TX and 100Base-FX standards, the MC100CM is designed for use with multi-mode fiber cable utilizing the SC-Type connector. The MC100CM supports longwave (LX) laser specification at a full wire speed forwarding rate. It works at 1310nm on both transmitting and receiving data.



Other features of this module include the ability to be used as a stand alone device (no chassis required)or with TP-LINK�s 19 inch system chassis, Auto MDI/MDI-X for TX port, Auto negotiation of duplex mode on TX port, and front panel status LEDs. The MC100CM will transmit at extended fiber optic distances utilizing multi-mode fiber up to 2 kilometers.Features

• TP-Link MC100CM Fast Ethernet Media Converter (SC, Multi-mode)
• Auto negotiation of 10/100Mbps and auto MID/MID-X for TX port
• Provide switch configuration of Half-Duplex / Full-Duplex transfer mode for FX port
• Link Fault Passthrough and Far End Fault minimize the loss caused by link failure timely
• Complies with 802.3u 10/100Base-TX, 100Base-FX standards
• Easy-to-view LED indicators provide status to monitor network activity easily
• Extend fiber distance up to 2km
• External power supply

Specifications

Compliance
Certifications	Safety & Emission: FCC, CE
Electrical
Power Adaptor Type	External
Environmental
Environmental	Operating Temperature 0 to 40�C - Humidity 10 to 90%
General
Model Name	MC100CM
Product Type	Interface Converter
Barcode	6935364030391
Interfaces/Ports
Convert From	100BaseTX
Convert To	100BaseFX
Fiber Ports	1 x SC Connector
Supported Cable Distance (Maximum)	2km
RJ-45 Ports	1 x RJ-45
Physical
LED Status Indicators	PWR, FDX/Col, Link/Act, SPD
Dimensions	9.45cm (W) x 7.3cm (D) x 2.7cm (H)
System
Technical Notes	MC100CM: RJ45--SC (Connector); 2km (Transmission Distance); Multi-mode Fiber, Cat-5 (Transmission Media); 1310nm (Output Center Wavelength)
Protocols Supported	IEEE 802.3, IEEE 802.3u, IEEE 802.3x
