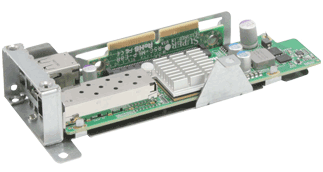

Supermicro AOC-CTG-i1SM network adapter

AOC-CTG-I1SM

Sorry, but this product is no longer available to purchase online.

Please contact us to discuss alternative products which may be suitable.

Looking for Compatible Products?

More from this brand

Product Description

Add-on Card

The AOM-CTG-i1SM 10 Gigabit Ethernet Adapter is the most flexible and scalable Ethernet adapter for today's demanding data center environments. Based on the Intel® 10GbE network controller 82599EN, the AOM-CTG-i1SM addresses the demanding needs of the next-generation data center by providing features for virtualization, flexibility for LAN and SAN networking, and proven reliable performance.

This product is only available through Supermicro. To order, contact your distributor.



Key Features

• Single SFP+ Connector • MicroLP Form Factor • PCI Express 2.0 (up to 5GT/s) • Intel® QuickData Technology • VMDq, Next-Generation VMDq, and • PC-SIG SR-IOV for Virtualized Environments • Load Balancing on Multiple CPUs • iSCSI Remote Boot Support • Fibre Channel over Ethernet (FCoE) Support • Support for most Network Operating Systems (NOSs) • Support both DAC Twin Axial and LC Fiber-Optic SR/LR Cables • RoHS compliant 6/6


Compliance

RoHS	RoHS Compliant 6/6, Pb Free


Downloads

User's Guide	[ Download ] (2.20MB)
Datasheet	[ Download ]
Driver	[ Download ]
Matrices	[ MicroLP Compatibility Matrix ]


Specification

• General - Intel® 82599EN 10GbE controller - Compact size microLP form factor - Single SFP+ port and dual USB 2.0 ports - PCI-E x8 2.0 (5GT/s) - Load balancing on multiple CPUs - iSCSI remote boot support - Fibre Channel over Ethernet (FCoE) Support - Intel® PROSet Utility for Windows® Device Manager • I/O Features - Intel QuickData Technology: DMA engine that enhances - Data acceleration and lowers CPU usage - Direct Cache Access (DCA) to avoid cache misses - MSI-X support to minimize the overhead of interrupts - Allowing load-balancing between multiple cores/CPUs - Tx/Rx IP, SCTP, TCP and UDP checksum offloading Capabilities (IPv4, IPv6) - Receive and Transmit Side Scaling for Windows - environments and Scalable I/O for Linux environments • Virtualization Features - Supports virtualization features such as VMDq, - Next-generation VMDq (64 queues per port) and - PC-SIG SR-IOV implementation - IPv6 Offloading - Advanced Packet Filtering - VLAN support to allow creation of multiple VLAN segments • Manageability Features - Preboot eXecution Environment (PXE) support - Simple Network Management Protocol (SNMP) and Remote - Network Monitoring (RMON) statistics counters - iSCSI remote boot • OS Support - Windows® 7, 2003, 2008, 2008 R2, Vista - RedHat EL, SuSe SLES - FreeBSD - VMWare • Cables Support - SFP+ direct attached twin axial cables, up to 10 meters - Dual LC fiber-optic SR cables, up to 300 meters (optional SFP+ transceiver is required) • Operating Conditions - Operating temperature: 0°C to 55°C (32°F to 131°F) • Physical Dimensions (L x W x D) - Card PCB dimensions (without end brackets): 12.8cm (5.04in) x 5.0cm (1.97in) x 2.35cm (0.93in)


Supported Platforms

Servers	Supermicro 12-node MicroCloud systems with microLP expansion slot


Parts List

	Part Number	Qty	Description
Add-on Card	AOM-CTG-i1SM	1	AOM-CTG-i1SM 10 Gigabit Ethernet Adapter
Bracket	MCP-240-93909-0N	1	MircoLP CM assembly KIT (AOC-CTG-i1SM)
Riser Card	RSC-MLP-E8R	1	MicroLP Riser card for 12 Node MicroCloud
Driver Disk	CDR-NIC	1	Driver and Software CDROM


Optional Parts List

	Part Number	Qty	Description
SFP+ transceiver module	AOC-E10GSFPSR	-	SFP+ transceiver module for short range fiber cables (up to 300m)
SFP+ transceiver module	AOC-E10GSFPLR	-	SFP+ transceiver module for long range fiber cables (up to 3000m)
SFP+ transceiver module	AOC-TSR-FS	-	SFP+ transceiver module for short range fiber cables (up to 300m)
SFP+ transceiver module	AOC-GBIC-FRS2	-	SFP+ transceiver module for short range fiber cables (up to 300m), single speed (10Gb)
SFP+ Cable	CBL-0347L	-	39.37" (100cm) 10GbE SFP+ TO SFP+
SFP+ Cable	CBL-0456L	-	78.74" (200cm) 10GbE SFP+ TO SFP+
SFP+ Cable	CBL-0348L	-	118.11" (300cm) 10GbE SFP+ TO SFP+
SFP+ Cable	CBL-0349L	-	196.85" (500cm) 10GbE SFP+ TO SFP+
