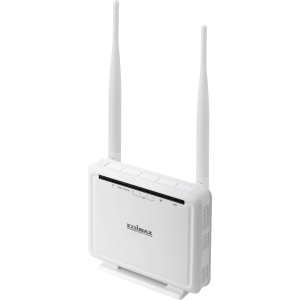

Edimax AR-7286WnA IEEE 802.11n ADSL2+ Modem/Wireless Router

300Mbps Wireless ADSL2/2+ Modem Router
The Edimax AR-7286WnA/B is a high performance router that provides full ADSL2+ capability and superb reliability as a cost-effective networking solution for homes and small businesses. Compatible with the wireless standard 802.11n, and with advanced MIMO technology, the AR-7286WnA/B provides up to six times better data transmission rates (up to 300Mbps) and five times better coverage than a standard 802.11g/b router.

All-in-One Device
The AR-7286WnA/B is a wireless N router with a built-in ADSL2/ADSL2+ modem combining a high-performance router, modem, and a switch into a single device. Save desk space, the hassle of extra cords & cables and the cost of leasing a router from your DSL service provider.

Specifications

General Information
Manufacturer	Edimax Technology
Manufacturer Part Number	AR-7286WNA
Manufacturer Website Address	http://www.edimax.com
Brand Name	Edimax
Product Model	AR-7286WnA
Product Name	N300 Wireless ADSL Modem Router
Marketing Information	300Mbps Wireless ADSL2/2+ Modem Router The Edimax AR-7286WnA/B is a high performance router that provides full ADSL2+ capability and superb reliability as a cost-effective networking solution for homes and small businesses. Compatible with the wireless standard 802.11n, and with advanced MIMO technology, the AR-7286WnA/B provides up to six times better data transmission rates (up to 300Mbps) and five times better coverage than a standard 802.11g/b router. All-in-One Device The AR-7286WnA/B is a wireless N router with a built-in ADSL2/ADSL2+ modem combining a high-performance router, modem, and a switch into a single device. Save desk space, the hassle of extra cords & cables and the cost of leasing a router from your DSL service provider.
Product Type	Modem/Wireless Router
Wireless Specifications
Broadband Transmission Technology	ADSL2+
Wireless LAN Standard	IEEE 802.11n
ISM Band	Yes
UNII Band	No
ISM Maximum Frequency	2.48 GHz
Total Number of Antennas	2
Number of External Antennas	2
Wireless Transmission Speed	300 Mbps
Interfaces/Ports
Number of Network (RJ-45) Ports	4
USB	No
PoE (RJ-45) Port	No
Network & Communication
Ethernet Technology	Fast Ethernet
Physical Characteristics
Form Factor	Desktop
Height	28 mm
Width	135 mm
Depth	118 mm
Weight (Approximate)	187 g
Miscellaneous
Package Contents	N300 Wireless ADSL Modem Router 12V Power Adapter 1 meter RJ-45 Ethernet Cable 2 x 1.8M RJ-11 Telephone Line Quick Installation Guide CD Containing Setup Wizard, User Manual & Multi-Language QIG Splitter 2 x 5dBi Antenna
Green Compliant	Yes
Green Compliance Certificate/Authority	RoHS
