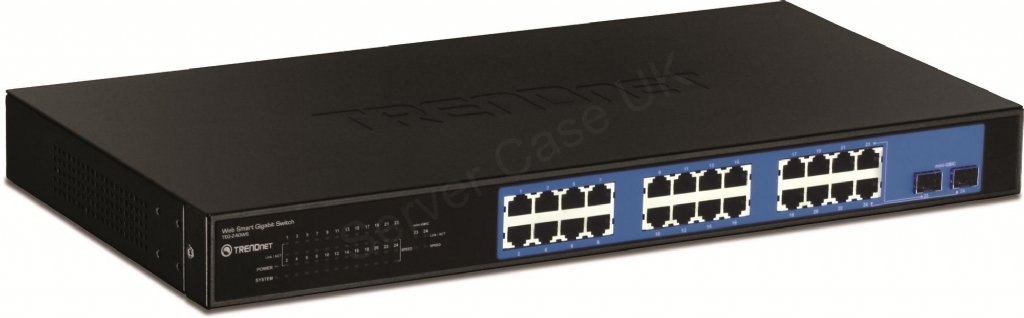

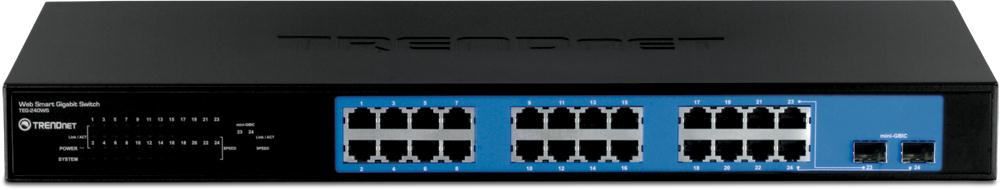

TRENDnet TEG-240WS 24-Port Gigabit Web Smart Switch with 2 Shared Mini-GBIC Slots

The 24-Port Gigabit Web Smart Switch with 2 Shared Mini-GBIC Slots (model TEG-240WS) delivers a 48Gbps switching capacity with managed layer 2 features at a reduced cost. Support for SNMP v1, 802.1X, STP, 802.1Q VLAN, QoS, IGMP snooping, Broadcast Storm Control and port Trunking provides a cost effective, scalable and secure backbone switch solution for SMB networks. SNMP support enables the switch to provide valuable status and event information, saving system administrators time and resources. Connect a fiber network to the shared Mini-GBIC slots. Access the Web-browser management interface and segment up to 256 Virtual Local Area Networks, manage network priority with 802.1p support and dedicate bandwidth with port-based Trunking.

Features

• 24 x 10/100/1000Mbps Auto-MDIX RJ-45 ports
• 2 x 1000Base-SX/LX Mini-GBIC slots (shared with Gigabit ports 23-24)
• 48Gbps switching capacity
• IEEE 802.3x Full Duplex Flow Control and Back Pressure
• Static Port Trunk
• IEEE 802.1D Spanning Tree Protocol
• IEEE 802.1p QoS
• IEEE 802.1X Authentication and SNMP v1
• Supports port based IEEE 802.1Q VLAN Tag and Asymmetric VLAN
• Store and forward switching method
• Front panel diagnostic LEDs
• Supports Jumbo Frame packets (max size up to 10Kbytes)
• Integrated address look-up engine supports up to 8K absolute MAC addresses
• Supports 512Kbytes RAM for data buffering
• Easy configuration via Web browser
• Standard 19 inch (1U) rackmount design (rackmount kit included)

Specifications

Compliance
Standards Compliance	IEEE 802.3 10Base-T; IEEE 802.3u 100Base-TX; IEEE 802.3ab 1000Base-T; IEEE 802.3z 1000Base-SX/LX (Mini-GBIC); IEEE 802.3x Flow Control and Back Pressure; IEEE 802.1D Spanning Tree Protocol; IEEE 802.1p QoS; IEEE 802.1Q VLAN Tag; IEEE 802.1X Authentication; SNMP v1
Safety	CE, FCC
Electrical
Voltage/Power/Frequency	100 to 240VAC / 35W / 50 to 60Hz
Power Adaptor Type	Internal
Environmental
Environmental	Operating Temperature 0 to 40�C - Humidity 10 to 90%
General
Model Name	TEG-240WS
Warranty	Three years limited.
Barcode	0710931501575
Interfaces/Ports
Network Speeds Supported	10/100/1000MBps
Fixed Ports	24 port(s) x RJ-45 , 10/100/1000Mbps , (Auto-MDIX)
Network Slots	2 slot(s) x Mini-GBIC ,
Memory
Buffer Memory	0.5MB
Performance
Backplane	48Gbps
MAC Addresses	8,000
Network Latency	Ethernet: UTP/STP Cat. 3, 4, 5 up to 100m; Fast Ethernet: UTP/STP Cat. 5, 5e up to 100m; Gigabit: UTP/STP Cat. 5, 5e, 6 up to 100m
Port Bandwidth	Max: 2000Mbps
Physical
LED Status Indicators	Power, System, Link/ACT, 1000M, 100M
In The Box	TEG-240WS � Multi-Language Quick Installation Guide� CD-ROM (Utility & User's Guide) � Power Cord � Rack Mount Kit
Mounting Type	1U (19 inch) rackmount
Dimensions	44.0cm (W) x 21.0cm (D) x 4.40cm (H) - Weight 3.0kg
System
Protocols Supported	CSMA/CD
