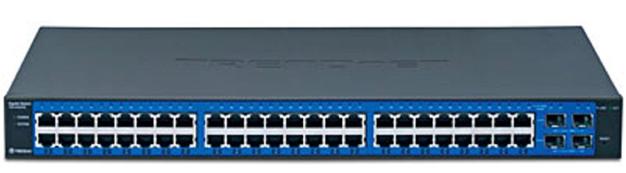

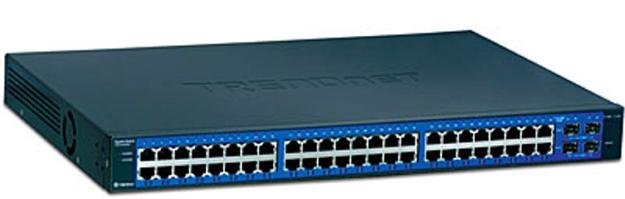

TRENDnet TEG-448WS 48-Port Gigabit Web Smart Switch with 4 Shared Mini-GBIC Slots

The 48-Port Gigabit Web Smart Switch with 4 Shared Mini-GBIC Slots (model TEG-448WS) delivers a 96Gbps switching capacity with managed layer 2 features at a reduced cost. Support for SNMP v1, 802.1X, STP, 802.1Q VLAN, QoS, IGMP snooping, Broadcast Storm Control and port Trunking provides a cost effective, scalable and secure backbone switch solution for SMB networks. SNMP support enables the switch to provide valuable status and event information, saving system administrators time and resources. Connect a fiber network to the shared Mini-GBIC slots. Access the Web-browser management interface and segment up to 256 Virtual Local Area Networks, manage network priority with 802.1p support and dedicate bandwidth with port-based Trunking.

Features

• 48 x 10/100/1000Mbps Auto-Negotiation and Auto-MDIX Gigabit Ethernet UTP Ports
• 4 x 1000Mbps Auto-Sense mini-GBIC slots, Share with 4 1000Base-T Ports (Port 45-48)
• Full/Half-Duplex Transfer Mode for each Port
• Store and Forward Switching Architecture
• Integrated address Look-Up Engine with 8K absolute MAC address table
• Supports 1024K bytes RAM Data Buffering
• IEEE 802.3x Flow Control for Full/Half Duplex Mode
• Back Pressure Flow Control for Half Duplex Mode
• Supports Jumbo Frame (up to 9220 bytes), DHCP Client and Port settings
• Supports IEEE 802.1Q VLAN, IGMP Snooping, IEEE 802.1p QoS, Trunking and Port Mirroring
• Port Settings function, users can set each Port's Availability, Speed, Duplex mode and Flow Control
• Easy Window Based Management Utility and Web-Based Configuration
• Extensive diagnostic LED's on the front panel
• Standard 19 inch (1U) Rack-Mount Size (Kit included)

Specifications

Compliance
Standards Compliance	IEEE 802.3 10Base-T IEEE 802.3u 100Base-TX IEEE 802.3ab 1000Base-T IEEE 802.3z 1000Base-SX/LX (Mini-GBIC) IEEE 802.3x Flow Control and Back Pressure IEEE 802.3ad Port Trunk IEEE 802.1D Spanning Tree Protocol IEEE 802.1p QoS IEEE 802.1Q VLAN Tag IEEE 802.1X Authentication SNMP v1 CE, FCC
Electrical
Voltage/Power/Frequency	100 to 240VAC / 99.7W / 50 to 60Hz
Environmental
Environmental	Operating Temperature 0 to 40�C - Humidity 10 to 90%
General
Model Name	TEG-448WS
Warranty	3 Year Limited
Barcode	710931501711
Interfaces/Ports
Network Speeds Supported	10/100/1000MBps
Full Duplex Capabilities	Half or Full
Fixed Ports	48 port(s) x RJ-45 , 10/100/1000Mbps , (Auto-MDIX)
Network Slots	4 slot(s) x Mini-GBIC ,
Memory
Buffer Memory	1MB
Performance
MAC Addresses	8,000
Stacking Bandwidth (Max)	96Gbps
Physical
LED Status Indicators	Per Unit: Power, System � Per Cooper Gigabit Port: Link/ACT, Speed (1000M-Green, 100M-Amber) � Per Mini-GBIC Gigabit Port: Link/ACT
In The Box	TEG-448WS � Multi-Language Quick Installation Guide � Utility CD-ROM � Power Cord
Mounting Type	1U 19 inch
Dimensions	44.0cm (W) x 31.0cm (D) x 4.40cm (H) - Weight 4.43kg
