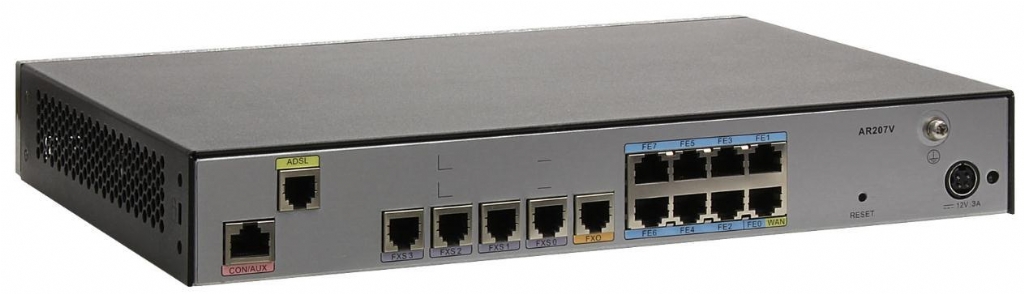

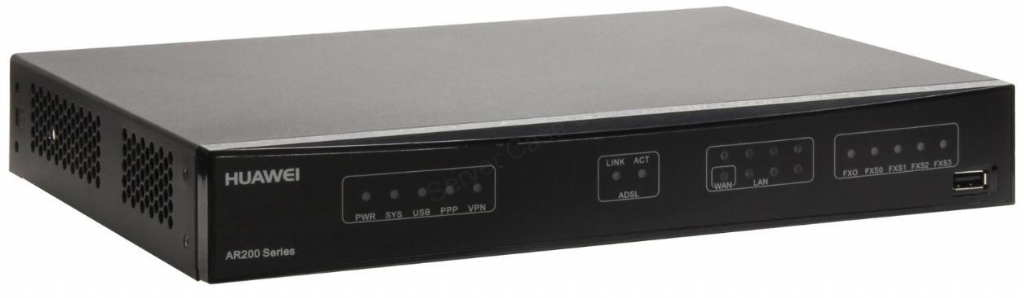

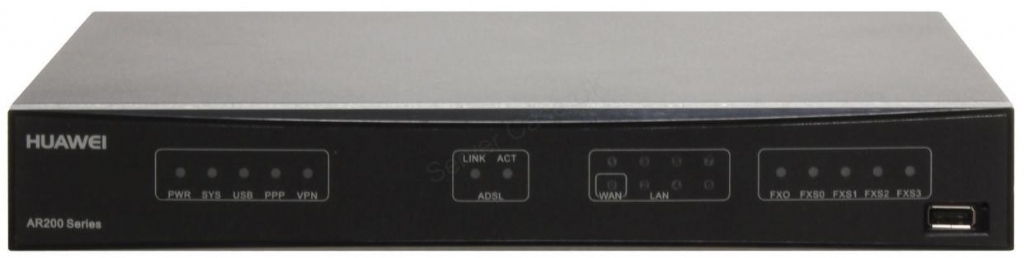

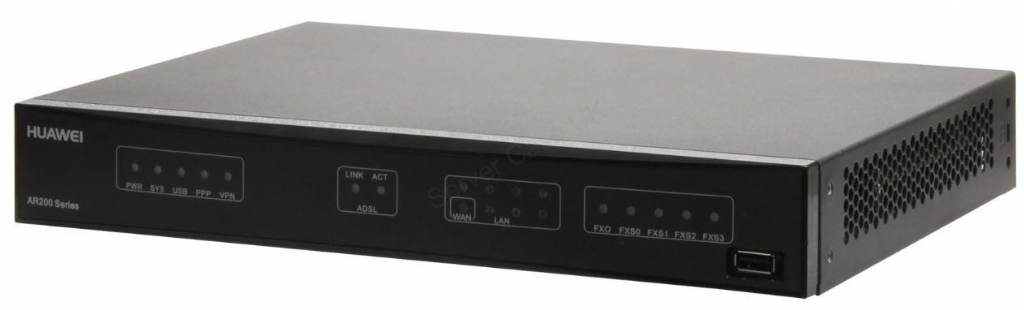

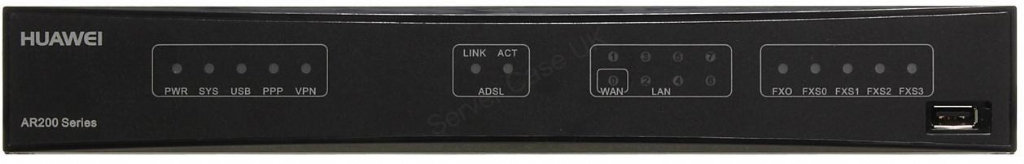

Huawei AR207 Basic Configuration Network Router (Includes AR207 Chassis with Basic Software and Document),ADSL2+ ANNEX A/M WAN, 8 FE LAN,1 USB Interfa

As fixed interface routers for the AR G3 series, AR150&AR200 Series routers provide a comprehensive set of functions, such as routing, switching, voice, security and wireless. They are next-generation routers for enterprise branches and small businesses.



More applications: Huawei series routers use the dual-core processor that isolates the � control plane from the forwarding plane and processes more enterprise applications. Huawei series routers improve userexperience for multimedia service when streams overlap.Features

• Forwarding performance: 450 Kpps

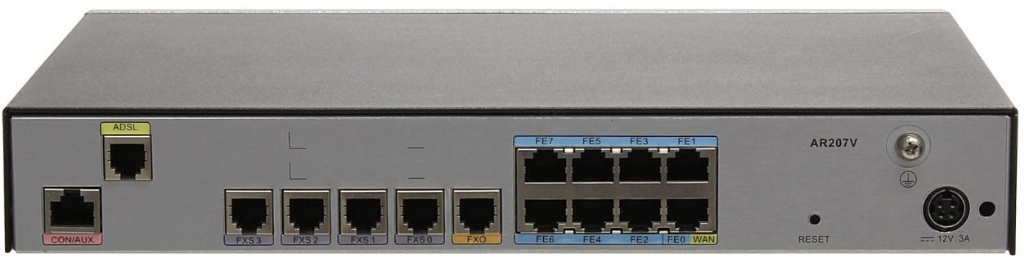

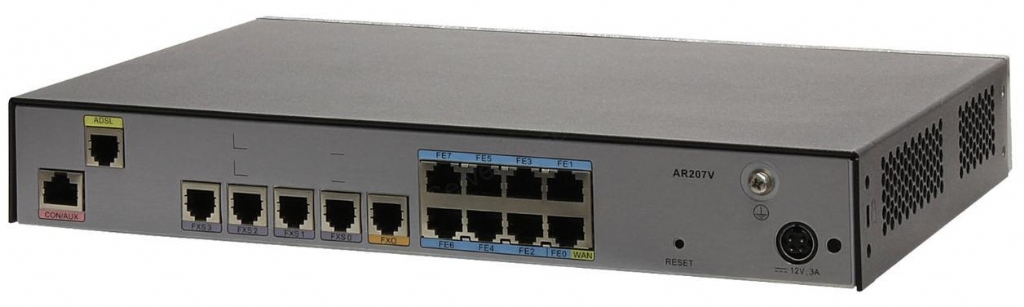

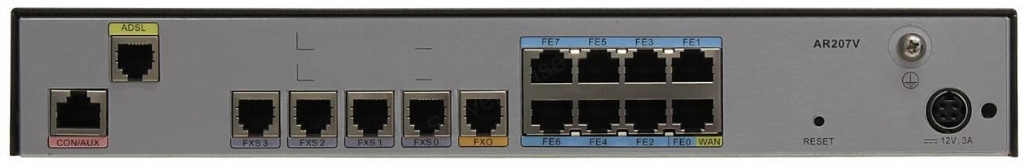

• Fixed ports: 8 x FE LAN, 1 x ADSL2+ Annex A/M
• Dimensions (H x W x D): 44.5 mm x 300 mm x 220 mm (1.75 in. x 11.8 in. x 8.66 in.)
• Compact size with high performance
• Low Investment with High Returns
• Small Product on a Comprehensive Platform

Specifications

Electrical
Voltage/Power/Frequency	100 to 240VAC / 50 to 60Hz
Environmental
Environmental	Humidity 5 to 90% Operating Temperature 0 to 40�C
Ethernet
Protocols Supported	IEEE 802.1P, IEEE 802.1Q, IEEE 802.3, VLAN management, MAC address management, MSTP, etc.
Ethernet Standards	Routing policy, static route, RIP v1/v2, OSPF, IS-IS, BGP � Routing policy, static route, RIPng, OSPFv3, IS-ISv6, BGP4+
General
Model Name	AR207
Product Type	Network Router
Barcode	6920702722779
Interfaces/Ports
LAN Ports	8 port(s) x RJ-45
WAN Ports	1 port(s) x
USB Ports	1 x USB
Memory
Flash Memory	512MB
Memory (Maximum)	(512MB)
Physical
Dimensions	4.45cm (W) x 30.0cm (D) x 22.0cm (H)
Security
Security	ACL, firewall, 802.1x authentication, AAA authentication, RADIUS authentication, HWTACACS authentication, broadcast storm suppression, ARP security, ICMP attack defense, URPF, CPCAR, blacklist, IP source tracing, PKI
System
Management	Upgrade management, device management, GTL, SNMP(v1/v2c/v3), RMON, NTP, CWMP, Auto-Config, site deployment using USB disk, NetConf, CLI
