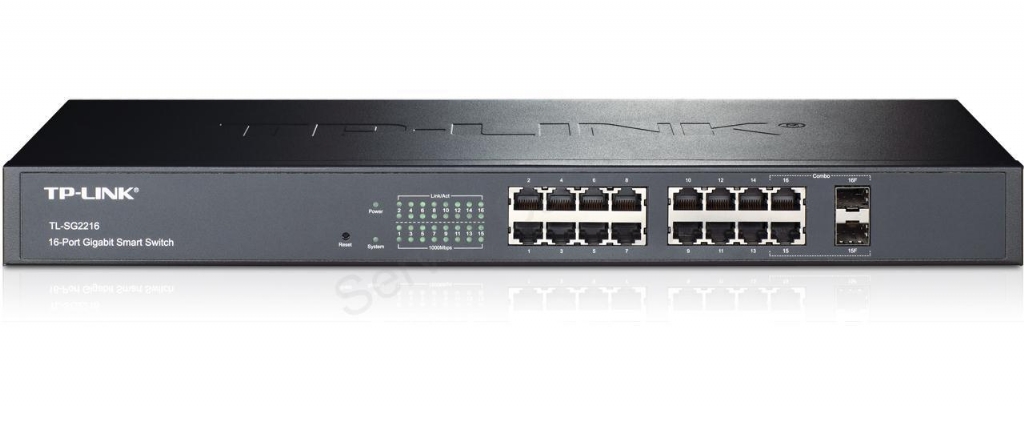

TP-Link TL-SG2216 16-Port Gigabit Smart Switch with 2 Combo SFP Slots

TP-LINK Gigabit Smart Switch TL-SG2216 is equipped with 16 gigabit RJ45 ports and 2 combo SFP slots. The switch provides high performance, enterprise-level QoS, useful security strategies and rich layer 2 management features. TP-LINK Gigabit Smart Switch TL-SG2216 is a cost-effective product solution for the small and medium business. TL-SG2216 has useful security features. The Storm Control feature protects against Broadcast, Multicast and Unknown unicast Storm. Quality of Service (QoS, L2 to L4) provides enhanced traffic management capabilities to move your data smoother and faster. Anymore, the easy-to-use web management interfaces, along with CLI, SNMP and RMON, mean faster setup and configuration with less downtime. For workgroup and departments requiring cost-sensitive layer 2 switch and gigabit capability, TP-LINK Gigabit Smart Switch TL-SG2216 provides you the ideal access-edge solution. To integrate voice, data and video service on one network, the switch applies rich QoS policies. Administrator can designate the priority of the traffic based on a variety of means including Port Priority, 802.1P Priority and DSCP Priority, to ensure that voice and video are always clear, smooth and jitter free.



For more application of layer 2 switches, TL-SG2216 supports a complete lineup of layer 2 features, including 802.1Q tag VLAN, Port Isolation, Port Mirroring, STP/RSTP/MSTP, Link Aggregation Group and 802.3x Flow Control function. Any more, the switches provide advanced features for network maintenance such as Loop Back Detection, Cable Diagnostics and IGMP Snooping. IGMP snooping ensures the switch intelligently forward the multicast stream only to the appropriate subscribers while IGMP throttling & filtering restrict each subscriber on a port level to prevent unauthorized multicast access. TL-SG2216 is easy to use and manage. It supports various user-friendly standard management features, such as intuitive web-based Graphical User Interface(GUI) or industry-standard Command Line Interface(CLI). SNMP (v1/2/3) and RMON support enables the switch to be polled for valuable status information and send traps on abnormal events.Features

• 16 x 10/100/1000Mbps RJ45 Ports
• 2 x Combo 100/1000Mbps SFP Slots
• Gigabit Ethernet connections on all ports provide full speed of data transferring
• Integrated security strategy including 802.1Q VLAN, Port Security and Storm control help protect LAN area investment
• L2/L3/L4 QoS and IGMP snooping optimize voice and video applications
• WEB/CLI managed modes, SNMP, RMON bring abundant management features

Specifications

Compliance
Standards Compliance	IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1p
Safety	CE, FCC
Electrical
Voltage/Power/Frequency	100 to 240VAC / 50 to 60Hz
Power Adaptor Type	AC
Environmental
Environmental	Operating Temperature 0 to 40�C - Humidity 10 to 90%
General
Model Name	TL-SG2216
Product Type	Network Switch
Barcode	6935364021092
Interfaces/Ports
Fixed Ports	16 port(s) x RJ-45 , 10/100/1000Mbps , (Auto-MDI/MDIX)
Network Slots	2 slot(s) x SFP ,
Performance
Backplane	32Gbps
MAC Addresses	8000
Network Latency	10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) � 100BASE-TX/1000Base-T: UTP category 5, 5e or above cable (maximum 100m) � 100BASE-FX:MMF,SMF � 1000BASE-X: MMF, SMF
Packet Forwarding Rate	23.8Mpps
Port Bandwidth	10/100/1000Mbps
Physical
Case Colour	Black
In The Box	TL-SG2216 � Power Cord � Installation Guide � Resource CD � Rackmount Kit � Rubber Feet
Dimensions	44.0cm (W) x 18.0cm (D) x 4.4cm (H)
Routing
Layer 2 Services	IGMP Snooping V1/V2/V3 � LAG(Up to 6 aggregation groups, containing 4 ports per group) � Spanning Tree STP/RSTP/MSTP � BPDU Filtering/Guard � TC/Root Protect � Loop back detection � 802.3x Flow Control
System
Management Capabilities	Web-based GUI and CLI management � SNMP v1/v2c/v3,compatible with public MIBs and � TP-LINK private MIBs � RMON (1, 2, 3, 9 groups) � CPU Monitoring � Port Mirroring � Firmware Upgrade: Web � System Diagnose: VCT � SYSLOG & Public MIBS
Security	Port Security � Broadcast/Multicast/Unknown-unicast Storm Control
System Requirements
System Requirements	Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7, MAC OS, NetWare, UNIX or Linux
Wireless
VLANs	Support IEEE802.1Q with 512 VLAN groups and 4K VIDs
