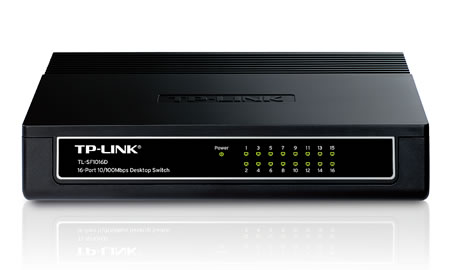

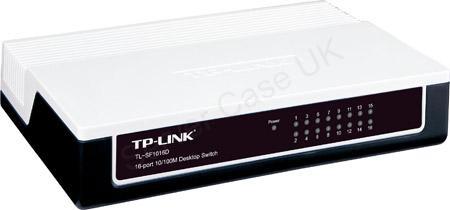

TP-Link TL-SF1016D 16-Port Unmanaged 10/100M Desktop Switch

TL-SF1016D 16-port 10/100Mbps Fast Ethernet Switch provides 16 10/100Mbps Auto-Negotiation RJ45 ports. All ports support Auto MDI/MDIX function, eliminating the need for crossover cables or Uplink ports. The Switch is Plug-and-Play and each port can be used as general ports or Uplink ports and can be simply plugged into a server, a hub or a switch, using straight cable or crossover cable. The TP-LINK TL-SF1016D 16-port 10/100M Fast Ethernet Switch provides you with a low-cost, easy-to-use, high-performance, seamless and standard upgrade to improve your old network to a 100Mbps network. It will boost your network performance up to full duplex data transfer. Its wire-speed switching that forwards packets can be as fast as the speed that your network delivers those packets to them.

Features

• Supports IEEE 8023x flow control for Full Duplex mode and backpressure for half-duplex mode
• Supports MAC address auto-learning and auto-aging
• LED indicators for monitoring power, link, activity
• Plastic case, desktop or wall-mounting design
• External Power Adapter supply

Specifications

Compliance
Standards Compliance	IEEE802.3, 802.3u, 802.3x
Emissions	CE
Safety	FCC
Electrical
Power Adaptor Type	External
Environmental
Environmental	Operating Temperature 0 to 40�C - Humidity 10 to 90%
General
Model Name	TL-SF1016D
Product Type	Network Switch
Barcode	6935364020293
Interfaces/Ports
Network Speeds Supported	10/100MBps
Full Duplex Capabilities	All ports via Auto-Negotiation
Fixed Ports	16 port(s) x RJ-45 , 10/100Mbps ,
Performance
Backplane	3.2Gbps
MAC Addresses	1,000
Packet Forwarding Rate	148,800pps
Port Bandwidth	10/100Mbps
Physical
Dimensions	20.0cm (W) x 14.2cm (D) x 4.0cm (H)
