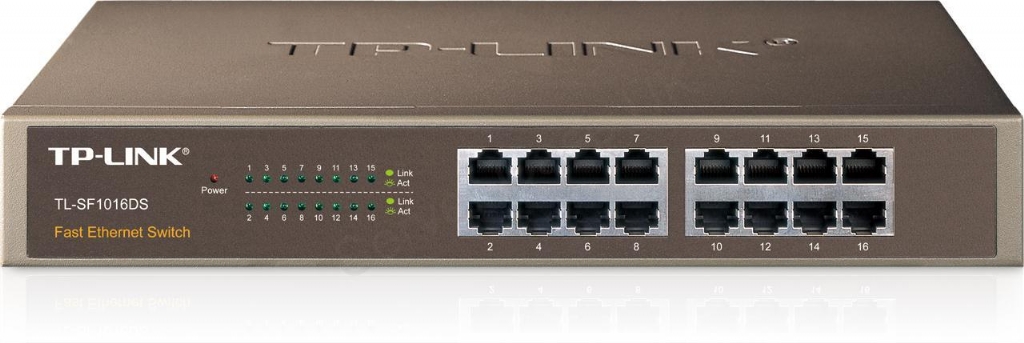

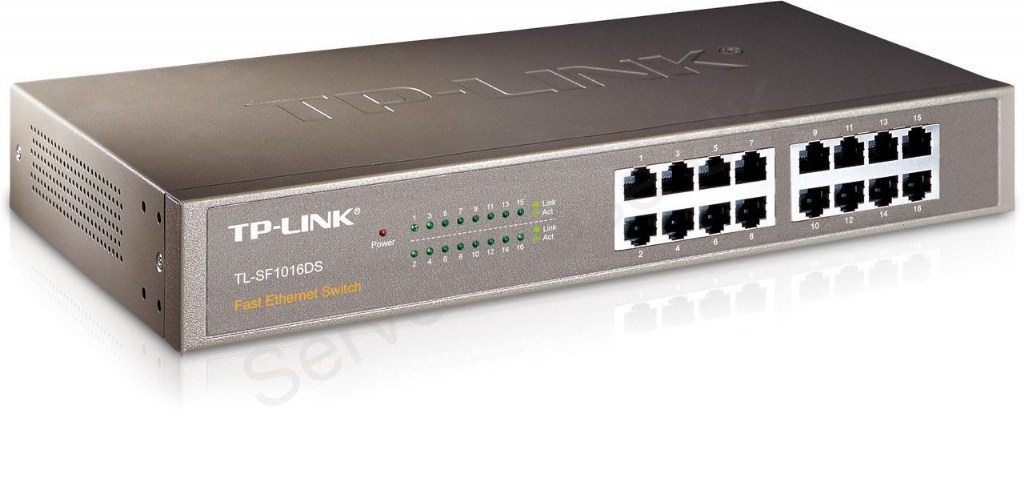

TP-Link TL-SF1016DS 16-Port 10/100Mbps Switch

The TL-SF1016DS Fast Ethernet Switch provides you with a high-performance, low-cost, easy-to-use, seamless and standard upgrade to improve old network to 1000Mbps network. All 16 ports support auto MDI/MDIX, no need to worry about the cable type, simply plug and play. Moreover, with the innovative energy-efficient technology, the TL-SF1016DS can save up to 25% of the power consumption and 80% of the packaging material can be recycled, making it an eco-friendly solution for your business network. The rack-mount size metal case design combined with a safety certified internal power supply make the Switch the most robust product which is very cost-effective for a less than 16 user environment. Featuring non-blocking switching architecture,TL-SF1016DS forwards and filters packets at full wire-speed for maximum throughput. And IEEE 802.3x flow control for Full Duplex mode and back pressure for Half Duplex mode alleviate the traffic congestion and make TL-SF1016DS work reliably.



This TL-SF1016DS Fast Ethernet Switch features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network. It also complies with the EU'S RoHS, prohibiting the use of certain hazardous materials. Besides, 80% of the packaging material can be recycled. The auto features of this fast ethernet switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminates the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (10, 100, or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance.Features

• TP-Link TL-SF1016DS 16-Port Fast Ethernet Desktop/Rackmount Switch
• 16 x 10/100M RJ45 ports
• Innovative energy-efficient technology saves power up to 25%
• Supports IEEE 8023x flow control for Full Duplex mode and backpressure for Half Duplex mode
• Non-blocking switching architecture that forwards and filters packets at full wire-speed for maximum throughput
• 3.2 Gbps Switching Capacity
• Store and forward Switching scheme
• Auto-MDI/MDIX eliminates the need for crossover cables
• Supports MAC address auto-learning and auto-aging
• Auto-negotiation ports provide smart integration between 10Mbps, 100Mbps hardware
• Desktop and Rack-mountable design
• Plug and Play design simplifies installation
• Standard 13-inch rack-mountable steel case
• Fanless design to make sure it works quietly without disturbing your family

Specifications

Compliance
Standards Compliance	IEEE802.3, 802.3u, 802.3x
Emissions	CE
Safety	FCC
Electrical
Voltage/Power/Frequency	100 to 240VAC / 50 to 60Hz
Power Adaptor Type	AC
Environmental
Environmental	Operating Temperature 0 to 40�C - Humidity 10 to 90%
General
Model Name	TL-SF1016
Product Type	Network Switch
Barcode	6935364020880
Interfaces/Ports
Network Speeds Supported	10/100MBps
Full Duplex Capabilities	All ports via Auto-Negotiation
Fixed Ports	16 port(s) x RJ-45 , 10/100Mbps ,
Performance
Backplane	3.2Gbps
MAC Addresses	8,000
Network Latency	10Base-T: UTP category 3, 4, 5 cable (maximum 100m); EIA/TIA-568 100� STP (maximum 100m); 100Base-Tx: UTP category 5, 5e cable (maximum 100m); EIA/TIA-568 100� STP (maximum 100m)
Packet Forwarding Rate	148,800pps
Port Bandwidth	10/100Mbps
Physical
LED Status Indicators	Power, Link/Act, 100Mbps
Dimensions	29.4cm (W) x 18.0cm (D) x 4.4cm (H)
