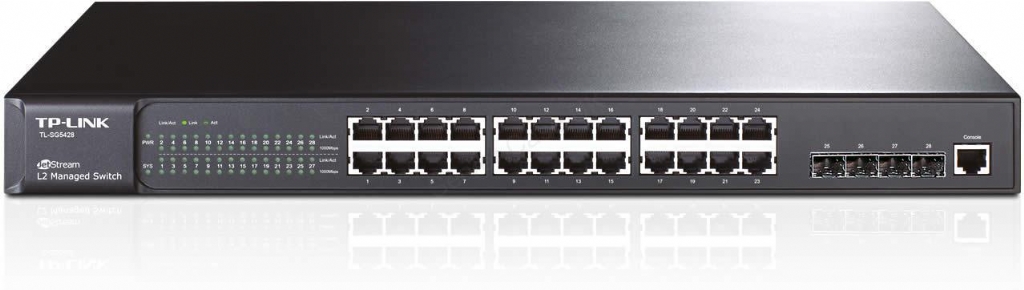

Designed for workgroups and departments, TL-SG5428 from TP-LINK provides full set of layer 2 management features. It delivers maximum throughput where you need it - to high-performance workgroups at the edge of the network, or as a backbone for Gigabit Ethernet switches and high-speed servers in small networks. Moreover, TL-SG5428 switch also comes equipped with 4 SFP slots, giving you greater network flexibility. This TP-LINK L2 managed switch has robust security and management features. An advanced Access Control List (ACL, L2 to L4) and the TP-LINK strong safeguard provide security coverage from core to edge and protect against broadcast storm, ARP and Denial-of-Service (DoS) attacks, etc. Quality of Service (QoS, L2 to L4) provides enhanced traffic management capabilities to move your data smoother and faster. Anymore, the easy-to-use web management interfaces, along with CLI, SNMP and RMON, mean faster setup and configuration with less downtime. For workgroup and departments requiring cost-sensitive Layer 2 Switch, and additional Gigabit capability, TP-LINK L2 managed Switch TL-SG5428 can provide you the ideal access-edge solution. TP-LINK's L2 managed switch TL-SG5428 provides non-blocking switching solutions for gigabit connections and switching capacity with a non-blocking aggregated bandwidth of 56Gbps. It provides 24 gigabit ports and 4 SFP slots. With this high switching capacity, TL-SG5428 can markedly enhance your network throughput. IP Clustering allows up to 32 TL-SG5428 switches to be managed by a single IP, regardless of geographical locations. With all units identified by a single IP address, the stack could be configured, monitored, maintained as a single object.
Access Control Lists (ACL, L2 to L4) restrict access to sensitive network resources by denying packets based on source and destination MAC address, IP address, TCP/UDP ports and even VLAN ID. This is done by hardware, so switching performance would not be compromised. Moreover, the TL-SG5428 switch supports 802.1X authentication, which is used in conjunction with a RADIUS server to require some authentication information before access to the network is allowed. And more, it supports Guest VLAN to enable the non-802.1X clients to access the specific network resource. In addition,IP-MAC-Port-VID Binding, Port Security, Storm control, DHCP Snooping and IP Source Guard support can protect against broadcast storms, ARP and Denial-of-Service(DoS) attacks, etc. Regarding to the DoS defending, TL-SG5428 provides you some typical DoS attacks to select. You can protect these attacks more easily ever than before. TL-SG5428 will provide you robust security to the network. TL-SG5428 supports various user-friendly standard management features, such as intuitive web-based Graphical User Interface (GUI) or industry-standard Command Line Interface(CLI), either administration traffic can be protected through SSL or SSH encryptions. To integrate voice, data and video service on one network, TL-SG5428 applies rich QoS policies. Administrator can designate the priority of the traffic based on a variety of means including IP or MAC address, TCP or UDP port number, etc, so voice and video are always clear, smooth and jitter free. In conjunction with the Voice VLAN the switch supporting, the voice applications will operate with much smoother performance.
Features
- 24 x 10/100/1000Mbps RJ45 Ports
- 4 gigabit SFP Slots and 1 console port
- LLDP serves to reduce the complexities of the network
- Link aggregation (LACP) increases aggregated bandwidth, optimizing the transport of business critical data
- IEEE 802.1s Multiple Spanning Tree, provides high link availability in multiple VLAN environments
- Support IEEE 802.1d/w/s Spanning Tree (STP/RSTP/MSTP)
- Non-blocking Layer 2 Switching Capacity
- Supports 4K active VLAN groups and 4K VLAN IDs
- Supports 802.1P, Class of Service (CoS) with 4 priority queues per port
- IP Source Guard prevents IP spoofing attacks such as DoS
- L2/L3/L4 Access Control Lists restrict untrusted access to the protected resource
- Virtual stackable provides high scalability and easy Single-IP-Management
- Port Mirroring enables monitoring selected ingress/egress traffic
Specifications
Compliance |
Standards Compliance | IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, IEEE 802.3ad, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1x, IEEE 802.1p |
Safety | CE, FCC |
Electrical |
Voltage/Power/Frequency | 100 to 240VAC / 38W / 50 to 60Hz |
Power Adaptor Type | AC |
Environmental |
Environmental | Operating Temperature 0 to 40�C - Humidity 10 to 90% |
General |
Model Name | TL-SG5428 |
Product Type | Network Switch |
Warranty | Three years. |
Barcode | 6935364021078 |
Interfaces/Ports |
Fixed Ports | 24 port(s) x RJ-45 , 10/100/1000Mbps , (Auto-MDI/MDIX) |
Network Slots | 4 slot(s) x SFP , |
Console Ports | 1 x RJ-45 |
Performance |
Backplane | 56Gbps |
MAC Addresses | 8,000 |
Network Latency | 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) � 100BASE-TX/1000Base-T: UTP category 5, 5e or above cable (maximum 100m) � 100BASE-FX: MMF, SMF � 1000BASE-X: MMF, SMF |
Packet Forwarding Rate | 41.67Mpps |
Port Bandwidth | 10/100/1000Mbps |
Physical |
Case Colour | Black |
In The Box | Switch; Power Cord; Quick Installation Guide; Resource CD; Rackmount Kit; Rubber Feet |
Mounting Type | 19-inch Rack mount Steel Case |
Dimensions | 44.0cm (W) x 26.0cm (D) x 4.4cm (H) |
Routing |
Layer 2 Services | IGMP Snooping V1/V2/V3 � 802.3ad LACP (Up to 8 aggregation groups, containing 8 ports per group) � Spanning Tree STP/RSTP/MSTP � BPDU Filtering/Guard � TC/Root Protect � Loop back detection � 802.3x Flow Control |
Layer 3 Services | Static Routing: Up to 16 IP interfaces, 128 static route entries � ARP Proxy � DHCP Server/Relay |
System |
Management Capabilities | Web-based GUI and CLI management � SNMP v1/v2c/v3,compatible with public MIBs and TP-LINK private MIBs � RMON (1, 2, 3, 9 groups) � DHCP/BOOTP Client,DHCP Snooping,DHCP Option82 � CPU Monitoring � Port Mirroring � Time Setting: SNTP � Integrated NDP/NTDP feature � Firmware Upgrade: TFTP & Web � System Diagnose: VCT � SYSLOG & Public MIBS |
Security | IP-MAC-Port-VID Binding � IEEE 802.1X Port/MAC Based authentication, Radius,Guest VLAN � DoS Defence � Dynamic ARP inspection (DAI) � SSH v1/v2 � SSL v2/v3/TLSv1 � Port Security � Broadcast/Multicast/Unknown-unicast Storm Control |
System Requirements |
System Requirements | Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7, MAC OS, NetWare, UNIX or Linux |
Wireless |
VLANs | Support IEEE802.1Q with 4K VLAN groups and 4K VIDs � Port/ MAC/Protocol-based VLAN � GARP/GVRP |
