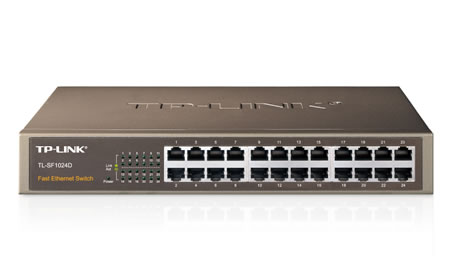

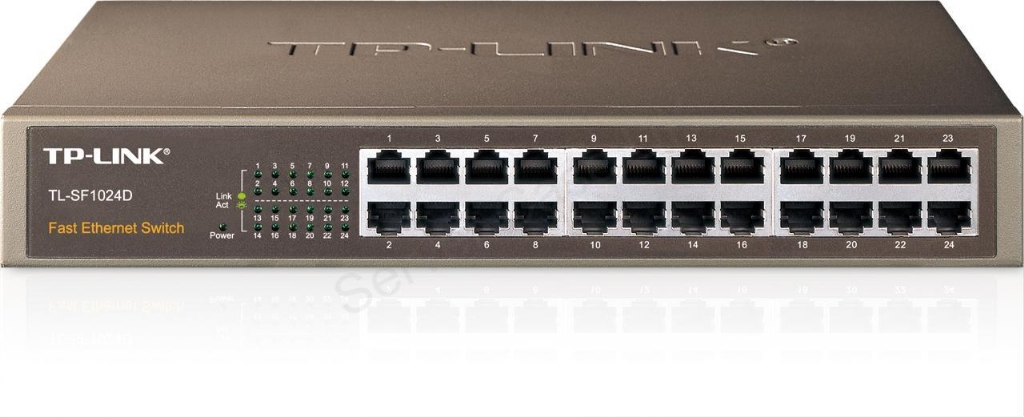

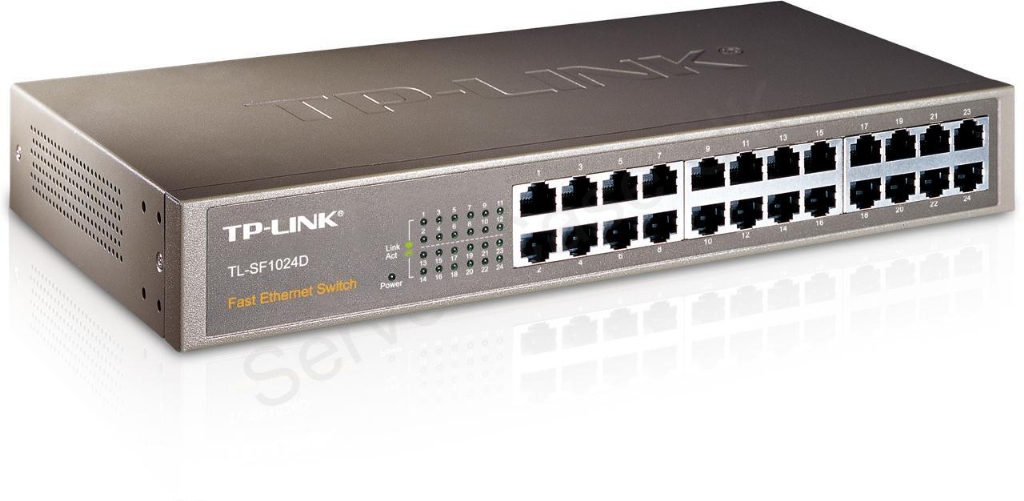

TP-Link TL-SF1024D 24-Port 10/100Mbps Switch

The TL-SF1024D Fast Ethernet Switch provides you with a high-performance, low-cost, easy-to-use, seamless and standard upgrade to improve old network to 1000Mbps network. All 24 ports support auto MDI/MDIX, no need to worry about the cable type, simply plug and play. Moreover, with the innovative energy-efficient technology, the TL-SF1024D can save up to 75% of the power consumption and 80% of the packaging material can be recycled, making it an eco-friendly solution for your business network. The metal case design combined with a safety certified internal power supply make the Switch the most robust product which is very cost-effective for a less than 24 user environment. Featuring non-blocking switching architecture, TL-SF1024D forwards and filters packets at full wire-speed for maximum throughput. And IEEE 802.3x flow control for Full Duplex mode and back pressure for Half Duplex mode alleviate the traffic congestion and make TL-SF1024D work reliably.



The TL-SF1024D Fast Ethernet Switch features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network. It also complies with the EU'S RoHS, prohibiting the use of certain hazardous materials. Besides, 70% of the packaging material can be recycled. The auto features of this fast ethernet switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminates the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (10, 100, or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance.Features

• Innovative energy-efficient technology saves power up to 75%
• Supports IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode
• Non-blocking switching architecture that forwards and filters packets at full wire-speed for maximum throughput
• 4.8 Gbps Switching Capacity
• Store and forward Switching scheme
• Auto-MDI/MDIX eliminates the need for crossover cables
• Supports MAC address auto-learning and auto-aging
• Auto-negotiation ports provide smart integration between 10Mbps, 100Mbps hardware
• Plug and Play design simplifies installation
• Fanless design to make sure it works quietly without disturbing your family

Specifications

Compliance
Standards Compliance	IEEE802.3, 802.3u, 802.3x
Safety	FCC, CE
Electrical
Voltage/Power/Frequency	100 to 240VAC / 50 to 60Hz
Power Adaptor Type	External
Environmental
Environmental	Operating Temperature 0 to 40�C - Humidity 10 to 90%
General
Model Name	TL-SF1024D
Product Type	Network Switch
Barcode	6935364020828
Interfaces/Ports
Full Duplex Capabilities	All ports via Auto-Negotiation
Fixed Ports	24 port(s) x RJ-45 , 10/100Mbps , (Auto-MDI/MDIX)
Performance
Backplane	4.8Gbps
MAC Addresses	8,000
Network Latency	10Base-T: UTP category 3, 4, 5 cable (maximum 100m) � EIA/TIA-568 100U STP (maximum 100m) � 100Base-Tx: UTP category 5, 5e cable (maximum 100m) � EIA/TIA-568 100� STP (maximum 100m)
Packet Forwarding Rate	148,800pps
Port Bandwidth	10/100Mbps
Physical
LED Status Indicators	Power, Link/Act, 100Mbps
Dimensions	29.4cm (W) x 18.0cm (D) x 4.4cm (H)
System
Protocols Supported	CSMA/CD, TCP/IP
