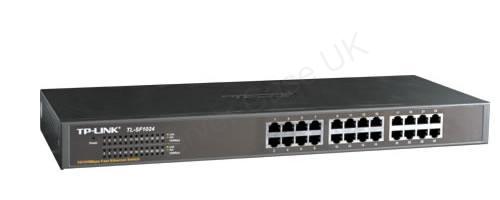

TP-Link TL-SF1024 24-Port Unmanaged 10/100M Rackmount Switch

TL-SF1024 24-port 10/100Mbps Ethernet Switch is designed for SOHO (Small Office/Home Office) or workgroup users. Rack-mount size metal case design combined with a safety certified internal power supply make the Switch the most robust product which is very cost-effective for less than 24 users environment. The plug-and-play and auto-negotiation capabilities allow the Switch to auto-detect its link partner (Ethernet adapter, for example) with the best speed. Each port provides full bandwidth (Maximum with 200Mbps in full duplex mode) without a traditional hub´s collision phenomenon downgrading the performance. All ports can be the uplink (cascade) port which is provided to link to another Switch for more ports expansion. Easy read LED indicators are supported for cable installation and normal operation diagnostics. The Switch can be used on desktop and rack-mount.

Features

• Supports IEEE 8023x flow control for Full Duplex mode and backpressure for half-duplex mode
• Supports MAC address auto-learning and auto-aging
• LED indicators for monitoring power, link, activity, 100Mbps
• Standard 19-inch rack-mountable steel case
• Internal universal power supply

Specifications

Compliance
Standards Compliance	IEEE802.3, 802.3u, 802.3x
Emissions	CE
Safety	FCC
Electrical
Voltage/Power/Frequency	100 to 240VAC / 50 to 60Hz
Power Adaptor Type	AC
Environmental
Environmental	Operating Temperature 0 to 40°C - Humidity 10 to 90%
General
Model Name	TL-SF1024
Product Type	Network Switch
Barcode	6935364020057
Interfaces/Ports
Network Speeds Supported	10/100MBps
Full Duplex Capabilities	All ports via Auto-Negotiation
Fixed Ports	24 port(s) x RJ-45 , 10/100Mbps ,
Performance
Backplane	4.8Gbps
MAC Addresses	8,000
Packet Forwarding Rate	148,800pps
Port Bandwidth	10/100Mbps
Physical
Dimensions	44.0cm (W) x 18.0cm (D) x 4.4cm (H)
