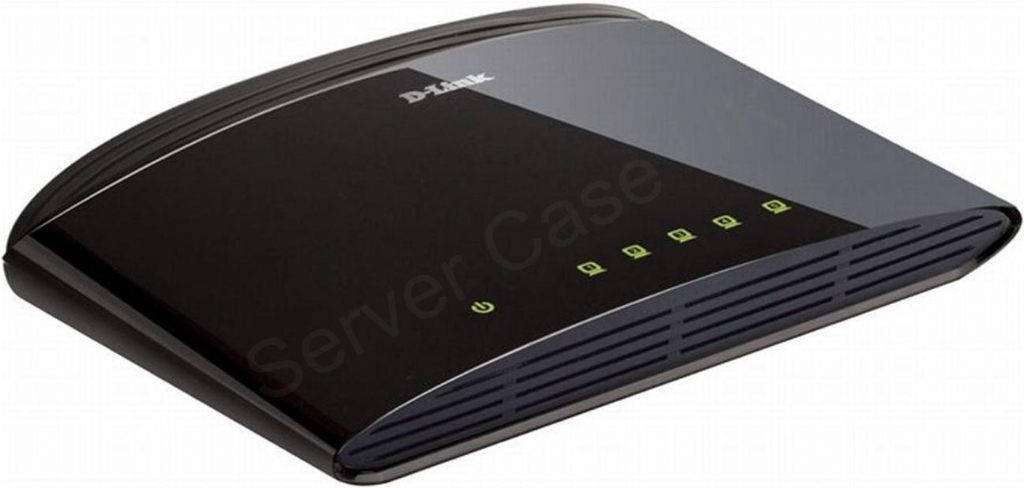

D-Link DES-1005 5-port 10/100 Metal Housing Desktop Switch

The DES-1005D is an unmanaged 10/100Mbps switch designed to enhance small workgroup performance while providing a high level of flexibility. Powerful yet easy to use, this device allows users to simply plug any port to either a 10Mbps or 100Mbps network to multiply bandwidths, boost response time and satisfy heavy load demands. The switch comes with 5 10/100Mbps ports, allowing a small workgroup to flexibly connect to Ethernet ad Fast Ethernet and integrate. These intelligent ports detect the network speed and auto-negotiate between 100BASE-TX and 10BASE-T, as well as between full- and half-duplex. All ports support 802.3x flow control. This function minimizes dropped packets by sending out collision signals when the port's receiving buffer is full. Flowcontrol is available in the full-duplex mode. All ports support auto-negotiation of MDI/MDIX cross over. This eliminates the need for cross over cables or uplink ports. Any port can simply plug to a server, a hub or a switch, using the usual straight-through twisted-pair cable. With 5 plug-and-play ports, the switch is a perfect choice for the small workgroup to upgrade performance in a client/server environment.

The ports can be connected to servers in full-duplex, or hubs in half-duplex. With low-cost connection per-port, the switch can also be set up for direct connection from the PCs. This relieves data bottleneck by giving each workstation a dedicated bandwidth on the network.

Features

• 5 10/100Mbps ports
• 5 10/100Mbps ports
• Full/half duplex support for each port
• Full/half duplex support for each port
• Auto-learning of network configuration
• Auto-learning of network configuration
• Flow control for protection against data loss
• Flow control for protection against data loss

Specifications

Environmental
Environmental	Operating Temperature 0 to 50�C - Humidity 10 to 90%
Environmental	Operating Temperature 0 to 50�C - Humidity 10 to 90%
General
Model Name	DES-1005
Product Type	Wireless Switch
Model Name	DES-1005
Product Type	Network Switch
Barcode	790069368172
Barcode	790069368172
Interfaces/Ports
Full Duplex Capabilities	Half or Full on All Ports
Full Duplex Capabilities	Half or Full on All Ports
Fixed Ports	5 port(s) x RJ-45 , 10/100Mbps , (5 x 10/100 BASE-T)
Fixed Ports	5 port(s) x RJ-45 , 10/100Mbps , (5 x 10/100 BASE-T)
Performance
MAC Addresses	2,000
MAC Addresses	2,000
Port Bandwidth	10/100 (HD), 20/200 (FD)Mbps
Port Bandwidth	10/100 (HD), 20/200 (FD)Mbps
Topology	Star
Topology	Star
Physical
Case Colour	Black
Case Colour	Black
Dimensions	12.53cm (W) x 8.34cm (D) x 2.91cm (H)
Dimensions	12.53cm (W) x 8.34cm (D) x 2.91cm (H)
System
Certifications	FCC Class B � ICES-003 Class B � CE Class B � C-Tick Class B � VCCI Class B cUL � CB
Certifications	FCC Class B � ICES-003 Class B � CE Class B � C-Tick Class B � VCCI Class B cUL � CB
