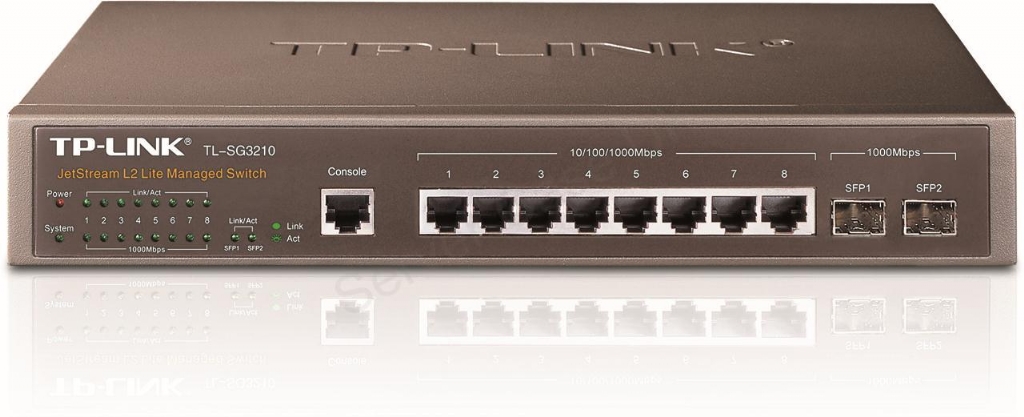

TP-Link TL-SG3210 8-Port Gigabit L2 Lite Managed Switch with 2 SFP Slots

TP-LINK JetStream gigabit L2 Lite managed switch TL-SG3210 provides 8 10/100/1000Mbps ports. The switch provides high performance, enterprise-level QoS, advanced security strategies and rich layer 2 management features. Moreover, the switch also comes equipped with 2 gigabit SFP slots, expanding your network flexibly. TL-SG3210 is the cost-effective network solution for the ideal small and medium business. TL-SG3210 has robust security and management features. The IP-MAC-Port-VID Binding and Access Control List(ACL) functions protect against broadcast storms, ARP and Denial-of-Service(DoS) attacks, etc. Quality of Service (QoS, L2 to L4) provides enhanced traffic management capabilities to move your data smoother and faster. Anymore, the easy-to-use web management interfaces, along with CLI, SNMP and RMON, mean faster setup and configuration with less downtime. For workgroup and departments requiring cost-sensitive Layer 2 Switch and gigabit capability, TP-LINK JetStream L2 Lite managed Switch TL-SG3210 provides you the ideal access-edge solution. TP-LINK this TL-SG3210 provides IP-MAC-Port-VID Binding, Port Security, Storm control and DHCP Snooping which protect against broadcast storms, ARP attacks, etc. It integrates some typical DoS attacks to select. You can protect these attacks more easily ever than before. In addition, the Access Control Lists (ACL, L2 to L4) feature restricts access to sensitive network resources by denying packets based on source and destination MAC address, IP address, TCP/UDP ports and even VLAN ID.



Moreover, the switch supports 802.1X authentication, which is used in conjunction with a RADIUS server to require some authentication information before access to the network is allowed. Guest VLAN function supports to enable the non-802.1X clients to access the specific network resource. To integrate voice, data and video service on one network, the switch applies rich QoS policies. Administrator can designate the priority of the traffic based on a variety of means including IP or MAC address, TCP or UDP port number, etc, to ensure that voice and video are always clear, smooth and jitter free. In conjunction with the Voice VLAN the switch supporting, the voice applications will operate with much smoother performance. For more application of layer 2 switches, TL-SG3210 supports a complete lineup of layer 2 features, including 802.1Q tag VLAN, Port Isolation, Port Mirroring, STP/RSTP/MSTP, Link Aggregation Control Protocol and 802.3x Flow Control function. Any more, the switch provides advanced features for network maintenance. Such as Loop Back Detection, Cable Diagnostics and IGMP Snooping. IGMP snooping ensures the switch intelligently forward the multicast stream only to the appropriate subscribers while IGMP throttling & filtering restrict each subscriber on a port level to prevent unauthorized multicast access.Features

• Layer 2 Features
• Link Aggregation Control Protocol (LACP)
• Port Isolation
• Quality of Service
• 4 priority queues
• Support IEEE 802.1P
• Rate limit feature
• IP-MAC-Port-VID Binding
• Access Control List (L2~L4 ACL)
• 802.1x and RADIUS Authentication
• Port Security
• SSL and SSH encryptions
• Web-based GUI
• Command Line Interface

Specifications

Compliance
Safety	CE, FCC
Electrical
Voltage/Power/Frequency	100 to 240VAC / 50 to 60Hz
Environmental
Environmental	Operating Temperature 0 to 40�C - Humidity 10 to 90%
General
Model Name	TL-SG3210
Product Type	Network Switch
Barcode	6935364020972
Interfaces/Ports
Network Speeds Supported	10/100/1000MBps
Fixed Ports	8 port(s) x RJ-45 , 10/100/1000Mbps , (Auto-MDI/MDIX)
Network Slots	2 slot(s) x SFP ,
Console Ports	1 x RJ-45
Memory
Buffer Memory	0.5MB
Performance
Backplane	20Gbps
MAC Addresses	8,000
Network Latency	10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) � 100BASE-TX/1000Base-T: UTP category 5, 5e, 6 or above cable (maximum 100m) � 1000BASE-X: MMF, SMF
Packet Forwarding Rate	14.9mpps
Physical
In The Box	Switch � Power Cord � Quick Installation Guide � Resource CD � Rackmount Kit � Rubber Feet
Dimensions	29.4cm (W) x 18.0cm (D) x 4.4cm (H)
Routing
Layer 2 Services	IGMP Snooping V1/V2/V3 � 802.3ad LACP (Up to 8 aggregation groups, containing 8 ports per group) � Spanning Tree STP/RSTP/MSTP � Port isolation � BPDU filtering/guard � TC/Root protect � Loop back detection � 802.3x Flow Control
System
Management Capabilities	Web-based GUI and CLI management � SNMP v1/v2c/v3,compatible with public MIBs and TP-LINK private MIBs � RMON (1, 2, 3, 9 groups) � DHCP/BOOTP Client,DHCP Snooping,DHCP Option82 � CPU Monitoring � Port Mirroring � Time Setting: SNTP � Integrated NDP/NTDP feature � Firmware Upgrade: TFTP & Web � System Diagnose: VCT � SYSLOG & Public MIBS
Ethernet Switching Features	Support 802.1p CoS/DSCP priority � Support 4 priority queues � Queue scheduling: SP, WRR, SP+WRR � Port/Flow- based Rate Limiting � Voice VLAN
Security	IP-MAC-Port-VID Binding � IEEE 802.1X Port/MAC Based authentication, Radius,Guest VLAN � DoS Defence � Dynamic ARP inspection (DAI) � SSH v1/v2 � SSL v2/v3/TLSv1 � Port Security � Broadcast/Multicast/Unknown-unicast Storm Control
Protocols Supported	Support IEEE802.1Q with 4K VLAN groups and 4K VIDs � Port/ MAC/Protocol-based VLAN � GARP/GVRP � Management VLAN configuration
