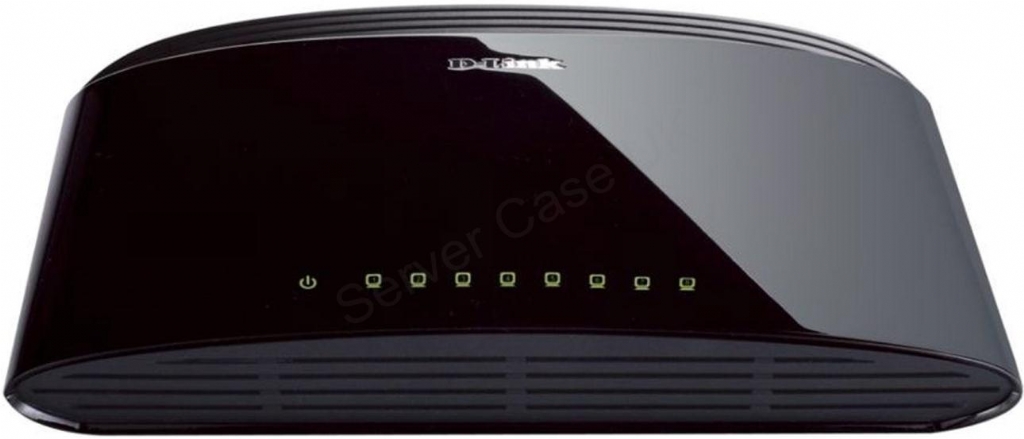

D-Link DES-1008D 8-port 10/100 Metal Housing Desktop Switch

The DES-1008D is an unmanaged 10/100Mbps switch designed to enhance small workgroup performance while providing a high level of flexibility. Powerful yet easy to use, this device allows users to simply plug any port to either a 10Mbps or 100Mbps network to multiply bandwidths, boost response time and satisfy heavy load demands. The switch comes with 8 10/100Mbps ports, allowing a small workgroup to flexibly connect to Ethernet and Fast Ethernet and integrate. These intelligent ports detect the network speed and auto-negotiate between 100BASE-TX and 10BASE-T, as well as between full- and half-duplex. All ports support 802.3x flow control. This function minimizes dropped packets by sending out collision signals when the port's receiving buffer is full. Flow control is available in the full-duplex mode. All ports support auto-negotiation of MDI/MDIX cross over. This eliminates the need for cross over cables or uplink ports. Any port can simply plug to a server, a hub or a switch, using the usual straight-through twisted-pair cable. With 8 plug-and-play ports, the switch is a perfect choice for the small workgroup to upgrade performance in a client/server environment.

With low-cost connection per-port, the switch can also be set up for direct connection from the PCs. This relieves data bottleneck by giving each workstation a dedicated bandwidth on the network.

Features

• IEEE 802.3x Flow Control
• IEEE 802.3x Flow Control
• Switch capacity: 1 Gbps
• Switch capacity: 1 Gbps
• Address table: 1024 entries
• Address table: 1024 entries
• MTBF: 116,186 hours
• MTBF: 116,186 hours

Specifications

Environmental
Environmental	Operating Temperature 0 to 50�C - Humidity 10 to 90%
Environmental	Operating Temperature 0 to 50�C - Humidity 10 to 90%
General
Model Name	DES-1008D
Product Type	Wireless Switch
Model Name	DES-1008D
Product Type	Network Switch
Barcode	0790069368196
Barcode	0790069368196
Interfaces/Ports
Full Duplex Capabilities	Half or Full on All Ports
Full Duplex Capabilities	Half or Full on All Ports
Fixed Ports	8 port(s) x RJ-45 , 10/100Mbps , (8 x 10/100 Mbps Ethernet RJ45 prts)
Fixed Ports	8 port(s) x RJ-45 , 10/100Mbps , (8 x 10/100 Mbps Ethernet RJ45 prts)
Performance
MAC Addresses	2,000
MAC Addresses	2,000
Port Bandwidth	10/100 (HD), 20/200 (FD)Mbps
Port Bandwidth	10/100 (HD), 20/200 (FD)Mbps
Topology	Star
Topology	Star
Physical
Case Colour	Black
Case Colour	Black
Dimensions	16.45cm (W) x 11.15cm (D) x 3.6cm (H)
Dimensions	16.45cm (W) x 11.15cm (D) x 3.6cm (H)
System
Certifications	FCC Class B � ICES-003 Class B � CE Class B � C-Tick Class B � VCCI Class B cUL � CB
Certifications	FCC Class B � ICES-003 Class B � CE Class B � C-Tick Class B � VCCI Class B cUL � CB
