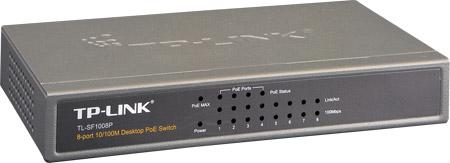

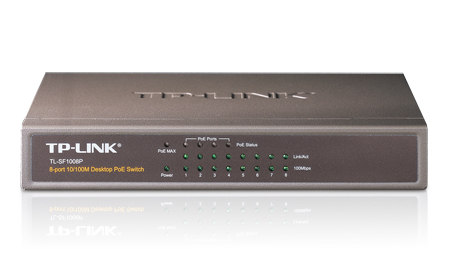

TP-Link TL-SF1008P 8-Port 10/100M Desktop PoE Switch

The TL-SF1008P 8-port 10/100M Desktop PoE Switch provides the seamless network connection. It integrates 100Mbps Fast Ethernet and 10Mbps Ethernet network capabilities. 4 of the 8 Auto-Negotiation RJ45 ports (port-1 to port-4) of the switch support Power over Ethernet (PoE) function. These PoE ports can automatically detect and supply power with those IEEE 802.3af compliant Powered Devices (PDs). In this situation, the electrical power is transmitted along with data in one single cable allowing you to expand your network where there are no power lines or outlets, where you wish to fix devices such as APs, IP Cameras or IP Phones, etc. TL-SF1008P has the priority * function which will help protect the system when the system power is overloaded. If all PoE PDs power consumption is >= 53W, a priority will be arranged among the PoE ports, then the system will cut off the power of the lowest-priority port. TL-SF1008P is easy to install and use. It requires no configuration and installation. With desktop design, outstanding performance and quality, the TP-link TL-SF1008P 8-port 10/100M Desktop PoE Switch is a great selection for expanding your home or office network.

Features

• Supports PoE power up to 154W for each PoE port
• Supports PoE power up to 53W for all PoE ports
• Supports PoE IEEE8023af compliant PDs
• Supports IEEE8023x flow control for Full-duplex Mode and backpressure for Half-duplex Mode
• 1K entry MAC address table of the TL-SF1008P with auto-learning and auto-aging
• LED indicators for monitoring power, link, activity and speed
• External power adaptor supply

Specifications

Compliance
Standards Compliance	IEEE 802.3, 802.3u, 802.3x, 802.3af
Emissions	CE
Safety	FCC
Electrical
Voltage/Power/Frequency	58W
Power Adaptor Type	External
Environmental
Environmental	Operating Temperature 0 to 40�C - Humidity 10 to 90%
General
Model Name	TL-SF1008P
Product Type	Network Switch
Barcode	6935364020682
Interfaces/Ports
Power over Ethernet (PoE)	Yes
Power over Ethernet (PoE) Standards	IEEE 802.3af
Fixed Ports	8 port(s) x RJ-45 , 10/100Mbps , (Auto-MDI/MDIX)
Performance
Backplane	1.6Gbps
MAC Addresses	1,000
Physical
Dimensions	17.1cm (W) x 9.8cm (D) x 2.7cm (H)
System
Protocols Supported	CSMA/CD, TCP/IP
