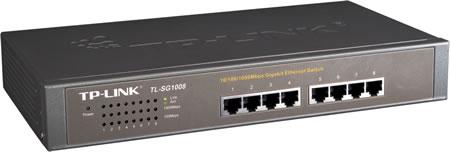

TP-Link TL-SG1008 8-Port Unmanaged Gigabit Rackmount Switch

The TL-SG1008 is a high performance Smart Gigabit switch that provides an ideal solution for workgroup or department Gigabit applications. With 8 10/100/1000BASE-T Gigabit Ethernet ports with AUTO-MDIX provides full bandwidth (Maximum 2000Mbps in full duplex mode). Easy-to-view LED indicators are supported for cable installation and normal operational diagnostics. The switch can be used a desktop or in a rack-mount.

Features

• Supports full duplex wire-speed forwarding
• Head of line blocking prevention
• Full duplex Flow Control (8023x compatible)
• Asymmetric Flow Control (8023z compatible)
• Dynamic data buffer assignment

Specifications

Compliance
Standards Compliance	IEEE802.3, 802.3u, 802.3ab, 802.3x
Emissions	CE
Safety	FCC
Electrical
Voltage/Power/Frequency	100 to 240VAC / 50 to 60Hz
Power Adaptor Type	AC
Environmental
Environmental	Operating Temperature 0 to 40°C - Humidity 10 to 90%
General
Model Name	TL-SG1008
Product Type	Network Switch
Barcode	6935364020019
Interfaces/Ports
Network Speeds Supported	10/100/1000MBps
Fixed Ports	8 port(s) x RJ-45 , 10/100/1000Mbps , (Auto-MDI/MDIX)
Performance
Backplane	16Gbps
MAC Addresses	8,000
Packet Forwarding Rate	148,800pps
Port Bandwidth	10/100/1000Mbps
Physical
Dimensions	25.0cm (W) x 15.8cm (D) x 4.4cm (H)
