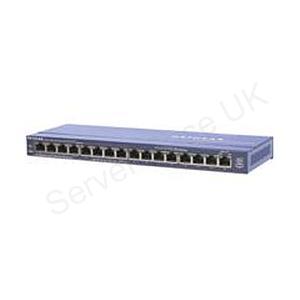

Affordable Power over Ethernet Switching The ProSafe FS116P provides power and data from a single point, using Power over Ethernet (P) over a single Cat-5 cable. The sixteen Fast Ethernet ports can be used for any 10/100 Mbps link and eight of these ports can supply industry-standard IEEE 802.3af power. Advanced auto-sensing algorithm gives power only to 802.3af end devices, so no need to worry about damaging proprietary P or non-P equipment. In addition, it discontinues the power when P devices are disconnected. Easy and reliable, the ProSafe FS116P automatically determines P requirements, speed, duplex, and cable type using AutoUplink. The affordably priced ProSafe FS116P delivers P to any small business network that wants to simplify the installation of wireless access points and IP-based surveillance cameras. These devices are optimally installed on a ceiling or high on a wall, away from most electrical outlets. P eliminates the requirement for a dedicated electrical outlet to power these devices. This allows for flexibility in situating devices where AC power is difficult to access and lowers installation costs. Compact and flexible, the ProSafe FS116P is ideal for small business network that want to inexpensively use P to deploy wireless access points and IP-based network surveillance cameras.
Flexible - Choose to plug in up to eight Ethernet or Fast Ethernet devices and mix in up to four 802.3af IP-based devices like wireless access points or IP-based network surveillance cameras. Place these 802.3af-compliant devices where they belong - high up on walls and ceiling for maximum coverage - or anywhere else you need them. Power and data are carried over standard Cat-5 cabling. Plug and Play - The standards-based ProSafe FS116P senses and adjusts for network speed and cabling type automatically, for easy integration into your existing 10/100 Ethernet network. For P, the switch automatically detects 802.3af-compliant devices, and supplies power as needed. Front panel LEDs keep you informed of switch and P status. Quiet and Compact - Engineered for compact convenience, it is only 1-inch high and 4-inches deep, with a durable metal case that is easily positioned on your desktop or a wall, using the included mounting hardware. The fan-less design quietly integrates in your small office environment. Great Value - With data switching and Power over Ethernet integrated into one unit, the FS116P saves space, reduces cables and eliminates the requirement for dedicated electrical outlets - lowering installation costs, simplifying installation of P-capable devices, and eliminating the need for electricians or extension cords. All in all a great benefit for a modest price.
Features
- Data switching & Power-over-Ethernet (PoE) in one unit
- 16 data switching ports, 8 of which provide PoE
- Reduces cables & eliminates need for dedicated electrical outlets
- Locate wireless devices high on walls or ceilings for max coverage
- AutoUplink auto detects speed, duplex & cable type
- Automatically detects PoE devices & supplies power as needed
- Compact & Flexible design at an attractive price
Specifications
Compliance |
Standards Compliance | IEEE 802.3i 10BASE-T � IEEE 802.3u 100BASE-TX � IEEE 802.3x Flow Control � IEEE 802.3af DTE Power via MDI |
Electrical |
Voltage/Power/Frequency | 88W |
Environmental |
Environmental | Operating Temperature 0 to 40�C - Humidity 0 to 90% |
General |
Product Type | Network Switch |
Warranty | 5 years for switch � 2 years for power supply. |
Barcode | 5051964008248 |
Interfaces/Ports |
Power over Ethernet (PoE) | Yes |
Power over Ethernet (PoE) Standards | IEEE 802.3af |
Fixed Ports | 16 port(s) x RJ-45 , 10/100Mbps , (Auto Sensing) |
Memory |
Buffer Memory | 0.09MB |
Performance |
Backplane | 3.2Gbps |
MAC Addresses | 1,000 |
Mean Time Between Failure (MTBF) | 116,009 Hours |
Network Latency | Less than 20 �s for 64-byte frames in store-and-forward mode for 100 Mbps to 100 Mbps transmission |
Physical |
LED Status Indicators | System: Power, P Maximum Power � Per Port: Link, Activity, Speed, P Active, P Status |
In The Box | ProSafe 16 Port 10/100 Switch with Power over Ethernet FS116P � AC Adaptor � Wall-mount kit � Installation guide � Warranty/Support Information card |
Dimensions | 28.7cm (W) x 10.3cm (D) x 2.7cm (H) - Weight 0.84kg |
System |
Certifications | Electromagnetic Emissions: CE mark, commercial � FCC Part 15 Class A � VCCI Class A � EN 55022 (CISPR 22), Class A � C-Tick. Electromagnetic Immunity:- EN 55024. Safety: CE mark, commercial � CE/LVD EN60950 |
