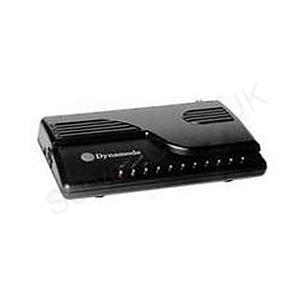

Dynamode SW80010-D 8 Port 10/100 Desktop Switch

The SW80010-D switches are easy to use plug and play devices with self learning capabilities for efficient data traffic routing. The SW80010-D switches provide dedicated fast 'data pipes' on every switched port. These switches are ideal for direct 100 Mbps speed access to application Servers. In Duplex Mode, workstations can access application servers at a congestion-free 200Mbps. Multiple duplex speed conversations can take place simultaneously between servers and workstations, dramatically reducing bandwidth contentions and performance bottlenecks. All individual SW80010-D switched ports support auto-sensing dual 10/100 speeds. These switches are ideal for use as workgroup segment switches for 10 Mbps and 100 Mps shared media hubs, central switches for 10 Mbps switches, or to provide direct connection to power users and application servers. Dynamode products have earned a worldwide reputation for quality. The FlexHUB family products utilize state-of-the-art design and ASIC-base hardware.

Specifications

Electrical
Power Adaptor Type	External
Power Adaptor Type	External
Environmental
Environmental	Operating Temperature 0 to 40�C - Humidity 5 to 95%
Environmental	Operating Temperature 0 to 40�C - Humidity 5 to 95%
General
Model Name	SW80010-D
Product Type	Ethernet Switch
Model Name	SW80010-D
Product Type	Network Switch
Warranty	Lifetime Warranty
Warranty	Lifetime Warranty
Barcode	8400800004468
Barcode	8400800004468
Interfaces/Ports
Network Speeds Supported	10/100MBps
Network Speeds Supported	10/100MBps
Full Duplex Capabilities	All Ports
Full Duplex Capabilities	All Ports
Fixed Ports	8 port(s) x RJ-45 , 10/100Mbps ,
Fixed Ports	8 port(s) x RJ-45 , 10/100Mbps ,
Memory
Buffer Memory	0.75MB
Buffer Memory	0.75MB
Performance
MAC Addresses	1,000
MAC Addresses	1,000
Physical
Dimensions	15.1cm (W) x 9.1cm (D) x 2.7cm (H) - Weight 0.19kg
Dimensions	15.1cm (W) x 9.1cm (D) x 2.7cm (H) - Weight 0.19kg
