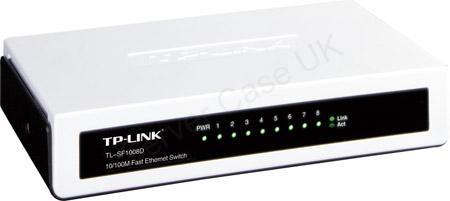

TL-SF1008D 8-port 10/100Mbps Fast Ethernet Switch provides 8 10/100Mbps Auto-Negotiation RJ45 ports. All ports support Auto MDI/MDIX function, eliminating the need for crossover cables or Uplink ports. The Switch is Plug-and-Play and each port can be used as general ports or Uplink ports and can be simply plugged into a server, a hub or a switch, using straight cable or crossover cable.
The TP-LINK TL-SF1008D 8-port 10/100M Fast Ethernet Switch provides you with a low-cost, easy-to-use, high-performance, seamless and standard upgrade to improve your old network to a 100Mbps network. It will boost your network performance up to full duplex data transfer. Its wire-speed switching that forwards packets can be as fast as the speed that your network delivers those packets to them.Features
Specifications
Compliance | |
Standards Compliance | IEEE802.3, 802.3u, 802.3x |
Safety | FCC, CE |
Environmental | |
Environmental | Operating Temperature 0 to 40°C - Humidity 10 to 90% |
General | |
Model Name | TL-SF1005D |
Product Type | Network Switch |
Barcode | 6935364020071 |
Interfaces/Ports | |
Fixed Ports | 8 port(s) x RJ-45 , 10/100Mbps , (Auto-MDI/MDIX) |
Performance | |
Backplane | 1.6Gbps |
MAC Addresses | 1,000 |
Network Latency | 10Base-T: UTP category 3, 4, 5 cable (maximum 100m); EIA/TIA-568 100Ù STP (maximum 100m) • 100Base-Tx: UTP category 5, 5e cable (maximum 100m); EIA/TIA-568 100Ù STP (maximum 100m) |
Packet Forwarding Rate | 10 Mbps: 14,880 pps • 100 Mbps: 148,800pps |
Topology | Star |
Physical | |
LED Status Indicators | Power • Link/Activity |
In The Box | 8-port Unmanaged 10/100M Desktop Switch • External Power Adaptor • User Guide |
Dimensions | 14.0cm (W) x 8.7cm (D) x 2.75cm (H) |
System | |
Protocols Supported | CSMA/CD, TCP/IP |
Sorry there are no compatible products listed. Please contact us to discuss options available for this product.
Please see below our available downloads for this product. If there is a download that isn't listed please contact us. Please also have a look at our Installation/Setup Instructions page.
