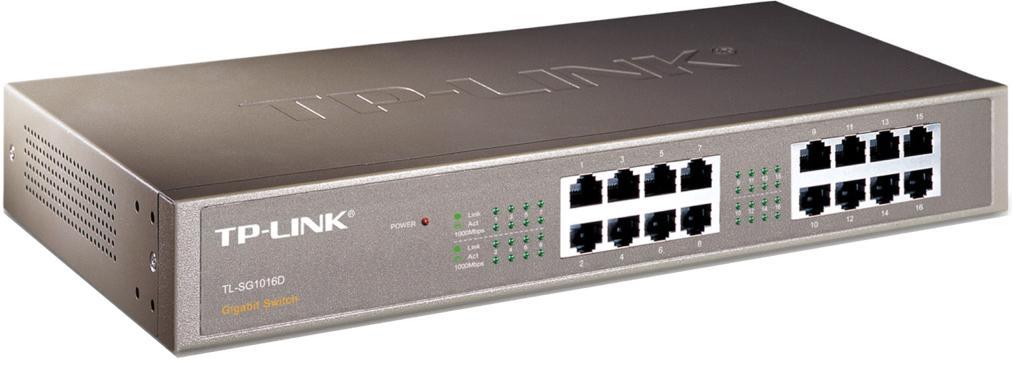

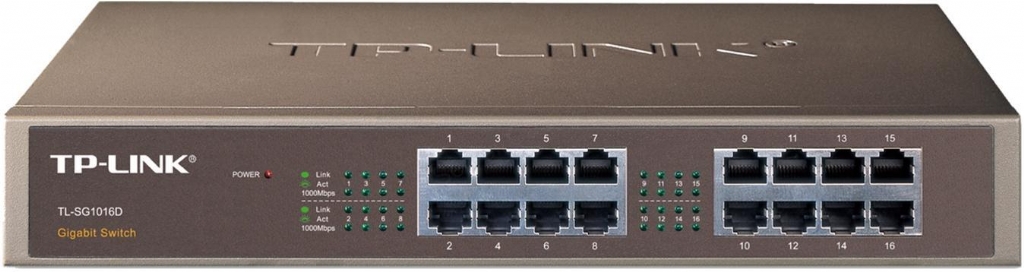

The TL-SG1016D 16-Port Gigabit switch provides an easy way to make the transition to Gigabit Ethernet. All 16 ports support auto MDI/MDIX, no need to worry about the cable type, simply plug and play. Moreover, with the innovative energy-efficient technology, the TL-SG1016D can save up to 40%* of the power consumption, making it an eco-friendly solution for your business network. Featured with 16 10/100/1000Mbps ports, TL-SG1016D greatly expands your network capacity, enabling instant large files transferring. So,power users in the home, office, workgroup, or creative production environment can now move large, bandwidth-intensive files faster. Transfer graphics, CGI, CAD, or multimedia files across the network instantly. You now have the choice to go green when upgrading to a gigabit network! This new generation TL-SG1016D 16-Port Gigabit Switch features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network.
When a computer or network equipment is off, the corresponding port of a traditional switch will continue to consume considerable amounts of power. The TL-SG1016D can automatically detect the link status of each port and reduce the power consumption of ports that are idle. Ideally, shorter cables would use less power because of less power degradation over their length; this is not the case with most devices as they will use the same amount of power across the cable regardless of whether it is 10 or 50 meters in length. The TL-SG1016D analyzes the length of the Ethernet cable connected and adjusts the power usage accordingly, rather than keeping the power consumption in a conventional solution. The auto features of this gigabit switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminates the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (10, 100, or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance.Features
Specifications
Compliance | |
Standards Compliance | IEEE802.3, 802.3u, 802.3ab, 802.3x |
Safety | FCC, CE |
Electrical | |
Voltage/Power/Frequency | 100 to 240VAC / 50 to 60Hz |
Power Adaptor Type | AC |
Environmental | |
Environmental | Operating Temperature 0 to 40°C - Humidity 10 to 90% |
General | |
Model Name | TL-SG1016D |
Product Type | Network Switch |
Barcode | 6935364020613 |
Interfaces/Ports | |
Network Speeds Supported | 10/100/1000MBps |
Fixed Ports | 16 port(s) x RJ-45 , 10/100/1000Mbps , (Auto-MDI/MDIX) |
Performance | |
Backplane | 32Gbps |
MAC Addresses | 8,000 |
Network Latency | 10Base-T: UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100Ù STP (maximum 100m) • 100Base-Tx: UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ù STP (maximum 100m) • 1000Base-T: UTP category 5, 5e cable (maximum 100m) |
Packet Forwarding Rate | 148,800pps |
Port Bandwidth | 10/100/1000Mbps |
Physical | |
LED Status Indicators | Power, Link/Act, 1000Mbps |
Dimensions | 29.4cm (W) x 18.0cm (D) x 4.4cm (H) |
System | |
Ethernet Switching Features | Wire-speed Performance • MAC Address Auto-Learning and Auto-aging • IEEE802.3x flow control for Full-Duplex Mode and backpressure for Half-Duplex Mode |
Protocols Supported | CSMA/CD, TCP/IP |
System Requirements | |
Operating Systems Supported | Microsoft Windows • Linux • Mac OS X |
