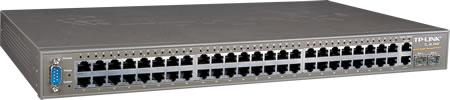

TP-Link TL-SL3452 48+4G Gigabit-Uplink Managed Network Switch

The TL-SL3452 48+4G Gigabit-Uplink Managed Switch fully complies with IEEE 802.3/802.3u/802.3ab/802.3z Ethernet standards. It provides 48 10/100Mbps and 2 10/100/1000Mbps UTP/STP RJ45 ports with auto-MDI/MDIX and 2 SFP independence expansion slots supporting MiniGBIC modules. It also provides powerful management functions, including the system, port, network, Spanning Tree protocol, IEEE 802.1X protocol, VLAN, Trunk, IGMP Snooping, SNMP protocol, priority and security. The TL-SL3452 switch provides multiple management methods: SNMP, Web and Telnet/Console. Its standard 19-inch rack-mountable steel case and intelligent management make it is suitable for small, middle and large networks.

Features

• Supports SNMP, Web and Telnet/Console management
• Supports SNMPv1, SNMPv2c, SNMPv3
• Supports SNMP MIB-II, Ethernet-like MIB and Bridge MIB
• Supports RMON statistics, history, alarm and event group
• Supports GARP and GVRP
• Supports IEEE 8021X Port-Based Network Access Control protocol and connect to RADIUS
• Supports 52 Port-Based VLANs and 256 IEEE 8021Q Tag VLANs
• Supports IEEE 8023ad port trunk with LACP
• Supports Static MAC address and filtering MAC address management
• Supports Static Port Priority and IEEE 8021p Priority, supports 4 Priority Queues and ingress policing
• Supports the configuration function of Port Security, Broadcast Storm Control and Port Mirroring
• Supports IEEE 8021D Spanning Tree protocol
• Supports non-head-of-line blocking forwarding
• Supports IGMP Snooping function
• Supports SNMP, Web-based, Telnet,Console management
• Supports firmware upgrade, configuration backed up and restored
• Rack-mountable steel case
• Internal power supply

Specifications

Compliance
Standards Compliance	IEEE 802.3, 802.3u, 802.3ab, 802.3z, 802.3ad, 802.3x, 802.1d, 802.1s, 802.1w, 802.1q, 802.1p, 802.1x, SNMP
Electrical
Voltage/Power/Frequency	100 to 240VAC / 50 to 60Hz
Environmental
Environmental	Operating Temperature 0 to 40�C - Humidity 10 to 90%
General
Model Name	TL-SL3452
Product Type	Network Switch
Barcode	6935364020507
Interfaces/Ports
Network Speeds Supported	10/100 + 10/100/1000MBps
Full Duplex Capabilities	All ports via Auto-Negotiation
Fixed Ports	48 port(s) x RJ-45 , 10/100Mbps ,
Uplink Ports	2 port(s) x RJ-45 , 10/100/1000Mbps ,
Network Slots	2 slot(s) x SFP ,
Console Ports	1 x RS-232
Performance
Backplane	12.8Gbps
MAC Addresses	8,000
Physical
Dimensions	44.0cm (W) x 26.0cm (D) x 4.4cm (H)
System
Management Capabilities	Based on Port Based on MAC Based on IP Based on VLAN Based on LAG Telnet, CLI/Console, SSH v1/v2 Web (Http/Https), SSL SNMP v1/v2c/v3 SNMP MIB-II, Ethernet-like MIB and Bridge MIB RMON statistics, history, alarm and event group
Security	Port Security Static MAC Address Binding 802.1x port-based Access Control RADIUS TACACS+
