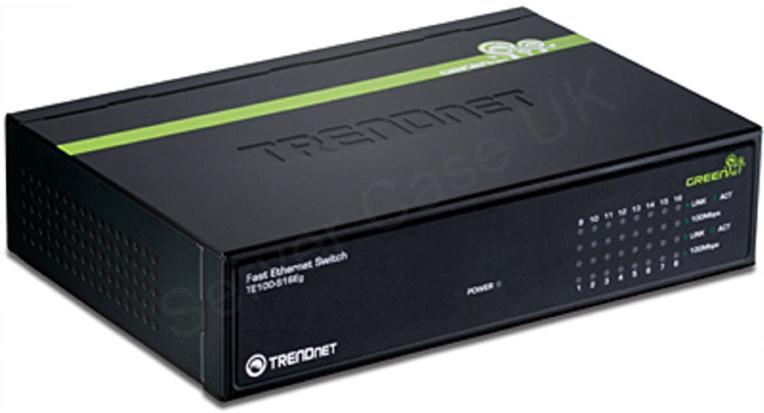

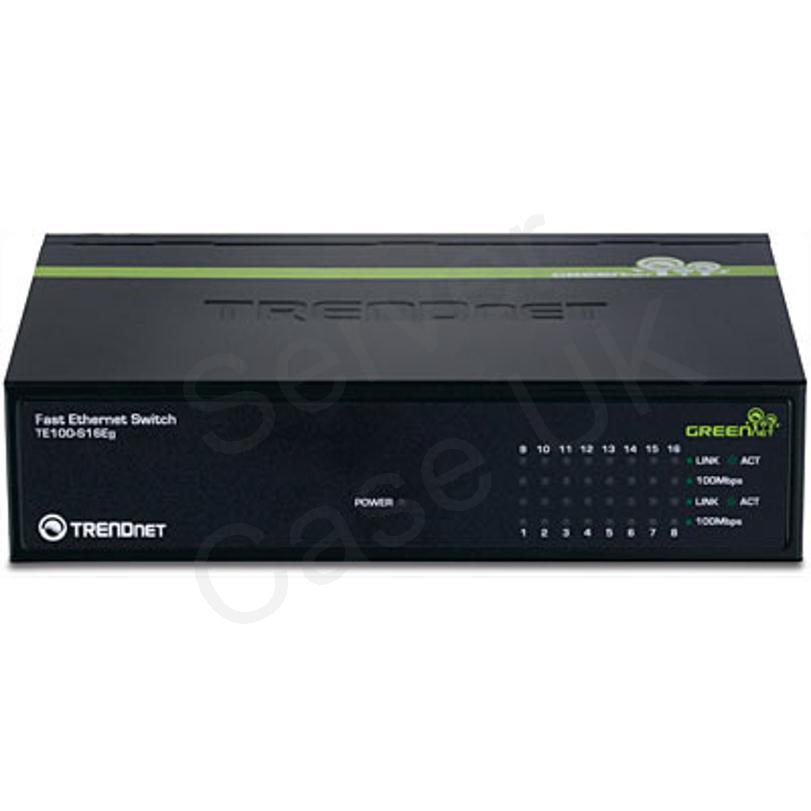

TRENDnet TE100-S16Eg 16-Port Fast Ethernet GREENnet Switch 10/100Mbps (Version v1.0R)

The compact 16-Port 10/100Mbps GREENnet Switch provides improved bandwidth performance, ease of use and reliability, all while reducing power consumption by up to 40%. GREENnet technology automatically adjusts power voltage as needed, resulting in substantial energy savings. Embedded GREENnet technology works right out of the box with no management required.

Boost your office efficiency and reduce network congestion with a total switching capacity of 3.2Gbps with Full-Duplex Mode. Plug and Play this sturdy metal switch for reliable high-speed network connectivity.

Features

• 16 x 10/100Mbps Auto-Negotiation, Auto-MDIX Fast Ethernet RJ-45 ports

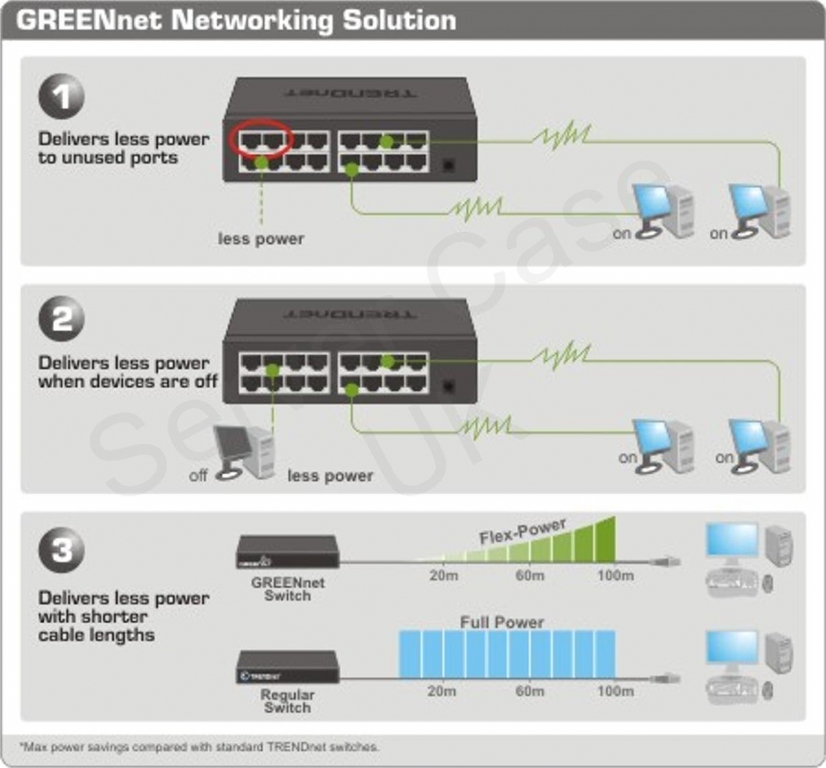

• GREENnet technology reduces power consumption when: Ethernet port is not in use; Connected device is turned off; Connected device is in power-saving mode; Based on Ethernet cable length
• Compliant with IEEE 802.3 / IEEE 802.3u standards
• IEEE 802.3x Flow Control support
• 3.2Gbps switching capacity
• Provide 8K MAC address entries
• Store-and-Forward switching architecture with non-blocking wire-speed performance
• Diagnostic LEDs
• Plug and Play support
• Sturdy metal housing
• 3-years limited warranty

Specifications

Compliance
Standards Compliance	IEEE 802.3 10Base-T; IEEE 802.3u 100Base-TX; IEEE 802.3x Flow Control
Safety	FCC, CE
Electrical
Voltage/Power/Frequency	6W
Power Adaptor Type	DC
Environmental
Environmental	Operating Temperature 0 to 40�C - Humidity 10 to 90%
General
Model Name	TE100-S16Eg
Product Type	Network Switch
Warranty	Three years limited.
Barcode	0710931203370
Interfaces/Ports
Full Duplex Capabilities	Half/Full Duplex
Fixed Ports	16 port(s) x RJ-45 , 10/100Mbps , (Auto-MDIX)
Memory
Buffer Memory	0.5MB
Performance
MAC Addresses	8,000
Network Latency	Ethernet: UTP/STP Cat. 3, 4, 5 up to 100m � Fast Ethernet: UTP/STP Cat. 5, 5e, 6 up to 100m
Port Bandwidth	10/100Mbps
Topology	Star
Physical
Case Colour	Black
LED Status Indicators	Power, Link/ACT, Speed
In The Box	TE100-S16Eg Switch, Multi-Language Quick Installation Guide, Power adaptor (7.5V DC, 1A)
Dimensions	18.4cm (W) x 12.4cm (D) x 4.4cm (H) - Weight 0.78kg
System
Protocols Supported	CSMA/CD
