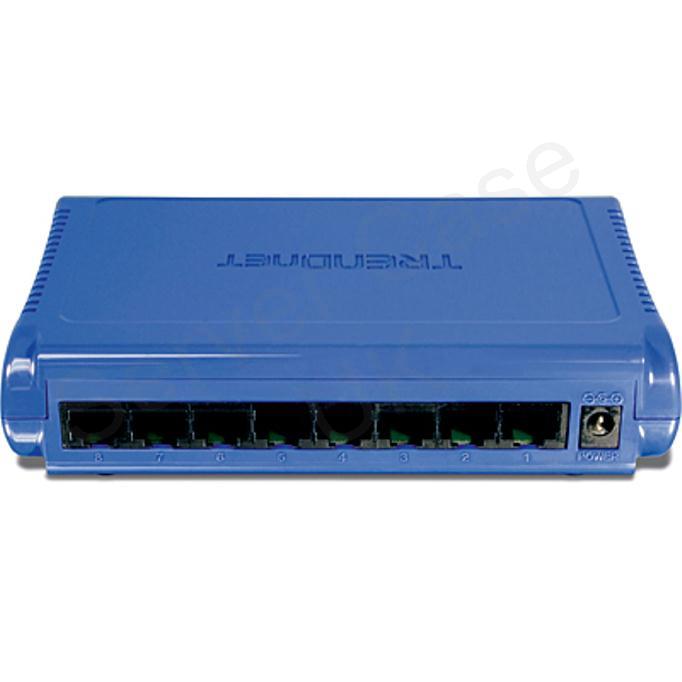

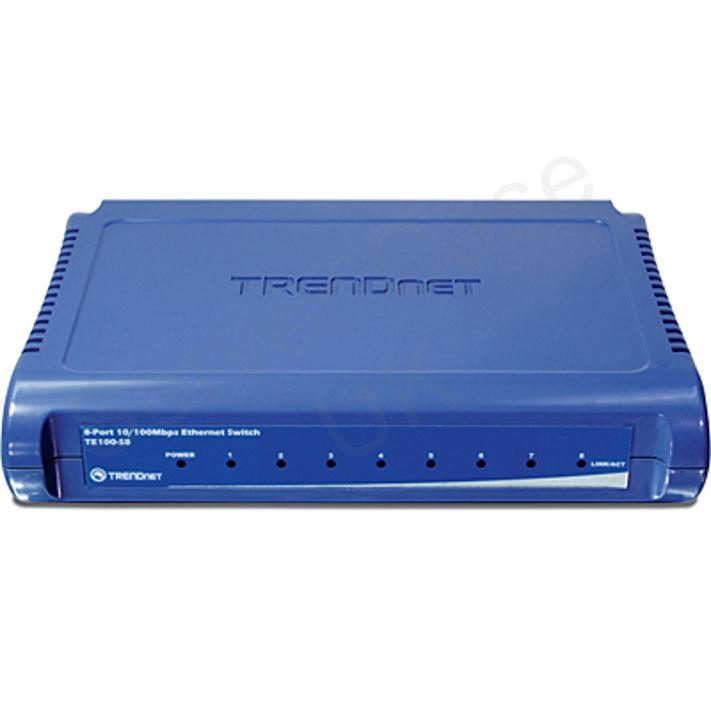

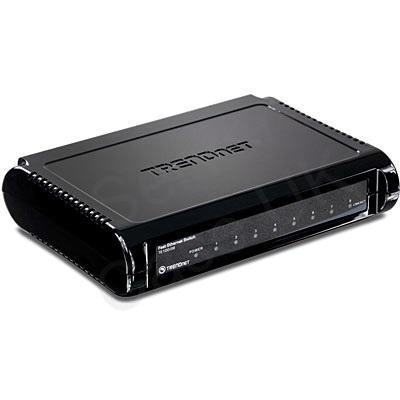

TRENDnet TE100-S8 8-Port Fast Ethernet Switch 10/100Mbps (Version v1.0R)

TE100-S8 is an Auto-MDIX switch designed specifically to boost network performance by eliminating network congestions and unnecessary network traffics. Each port on the Switch provides dedicated bandwidth and can negotiate between 10/100Mbps network speeds and half/full duplex modes. Plug-N-Play provides cost-effective and high performance solutions.

Features

• 8 x 10/100Mbps Auto-Negotiation, Auto-MDIX Fast Ethernet RJ-45 ports
• Build a reliable Fast Ethernet network in minutes
• Auto-Negotiation optimizes networking speeds for all 8 ports
• Compliant with IEEE 802.3 / IEEE 802.3u standards
• IEEE 802.3x Flow Control support
• Switch Fabric: 1.6Gbps Forwarding Capacity
• Provide 1K MAC address entries
• Compliant with Windows, Linux, and Mac Operating Systems
• Store-and-Forward Switching method
• Non-blocking Architecture
• Diagnostic LEDs
• Plug and Play support
• 3-years limited warranty

Specifications

Compliance
Standards Compliance	IEEE 802.3 10Base-T; IEEE 802.3u 100Base-TX; IEEE 802.3x Flow Control
Safety	FCC, CE
Electrical
Voltage/Power/Frequency	2.8W
Power Adaptor Type	DC
Environmental
Environmental	Operating Temperature 0 to 50�C - Humidity 10 to 90%
General
Model Name	TE100-S8
Product Type	Network Switch
Warranty	Three years limited.
Barcode	0710931204186
Interfaces/Ports
Full Duplex Capabilities	Half/Full Duplex
Fixed Ports	8 port(s) x RJ-45 , 10/100Mbps , (Auto-MDIX)
Memory
Buffer Memory	0.5MB
Performance
MAC Addresses	1,000
Network Latency	Ethernet: UTP/STP Cat. 3,4,5, EIA/TIA-568 100-ohm � Fast Ethernet: UTP/STP Cat. 5. 5E, EIA/TIA-568 100-ohm
Port Bandwidth	10/100Mbps
Topology	Star
Physical
Case Colour	Blue
LED Status Indicators	Power, Link/ACT, 100Mbps
In The Box	TE100-S8 Switch, Multi-Language Quick Installation Guide, Power Adaptor (5V DC, 800mA)
Dimensions	15.4cm (W) x 11.0cm (D) x 3.3cm (H) - Weight 0.23kg
System Requirements
Operating Systems Supported	Microsoft Windows � Linux � Mac OS X
