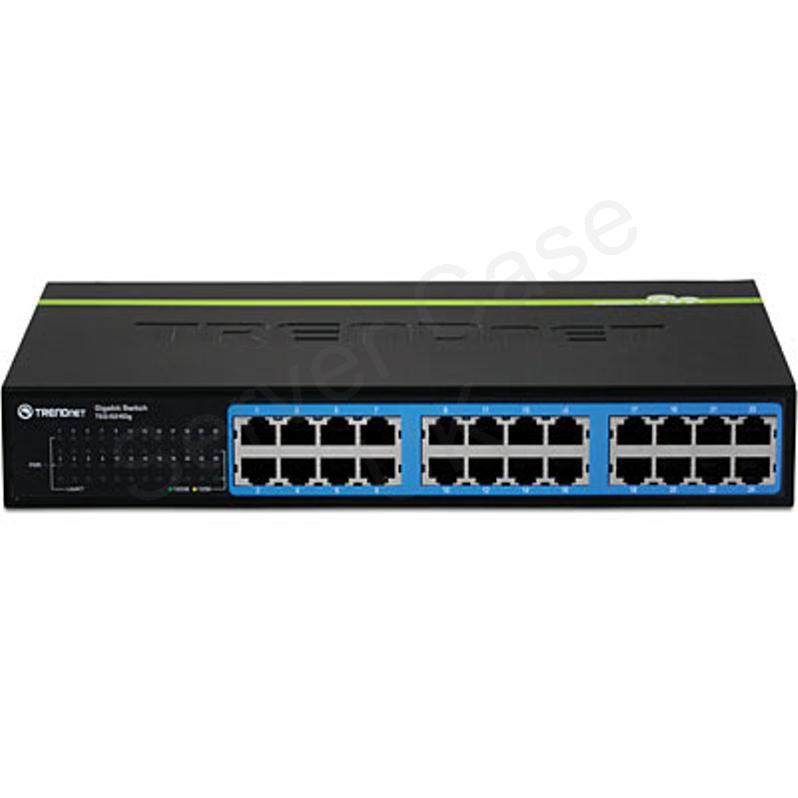

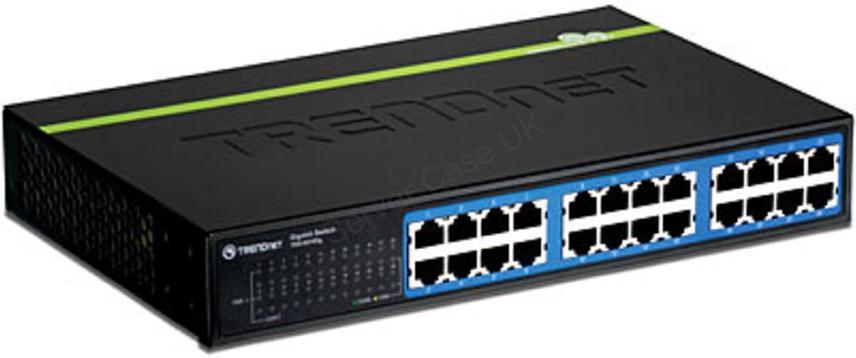

TRENDnet TEG-S24Dg 24-Port Gigabit Ethernet GREENnet Switch 10/100/1000Mbps (Version v1.0R)

The 24-Port Gigabit GREENnet Switch, model TEG-S24Dg, provides high bandwidth performance, ease of use and reliability, all while reducing power consumption by up to 70%. GREENnet technology automatically adjusts power voltage as needed, resulting in substantial energy savings. Embedded GREENnet technology works right out of the box with no management requirement.

Boost office network efficiency and eliminate network congestion with Gigabit speeds and a total switching capacity of 48Gbps with Full-Duplex mode. A built in universal power supply reduces cable clutter and diagnostic LEDs help with network troubleshooting. Plug and Play this sturdy metal switch for reliable high-speed network connectivity.

Features

• 24 x 10/100/1000Mbps Auto-MDIX Gigabit Ethernet ports

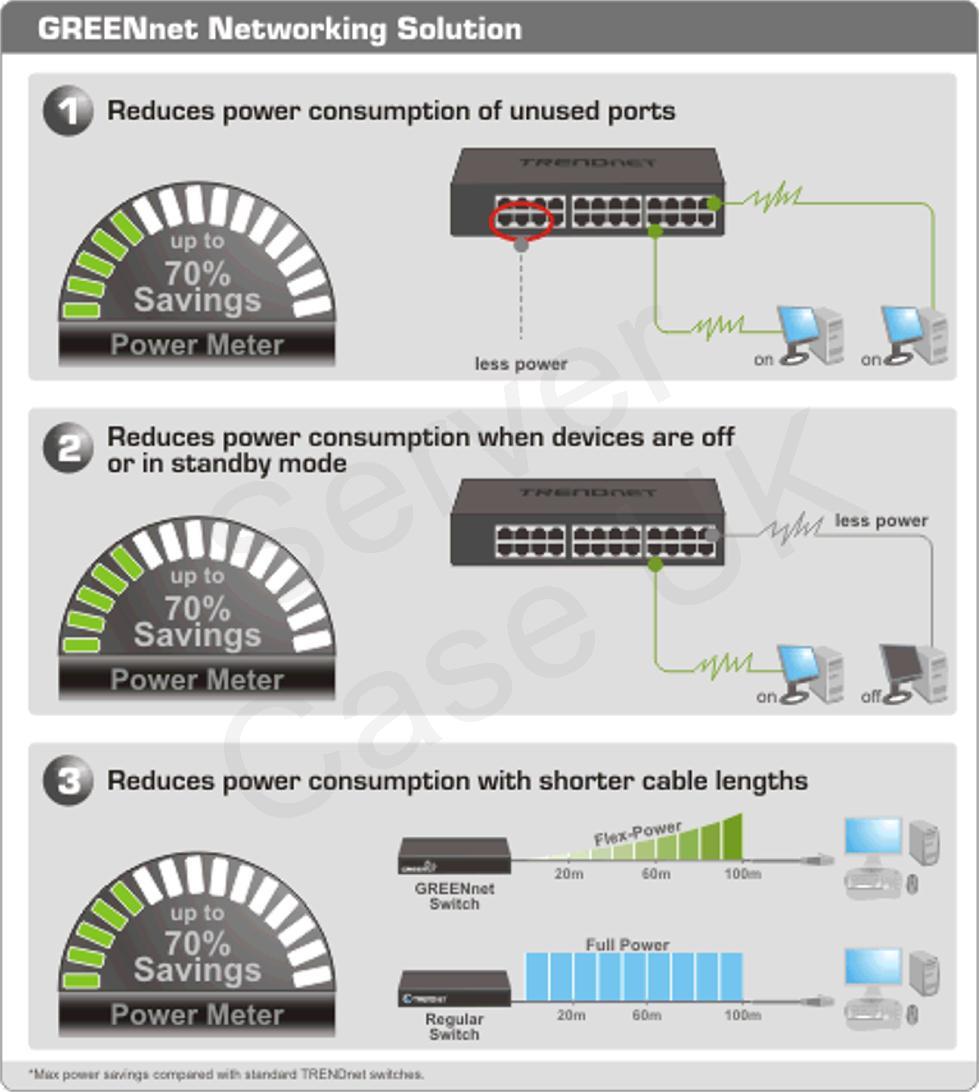

• GREENnet technology reduces power consumption when: Ethernet port is not in use; Connected device is turned off; Connected device is in power-saving mode; Based on Ethernet cable length
• Features a 48Gbps forwarding capacity
• Integrated address look-up engine with an 8K MAC address table, and 3.5MB RAM data buffer
• IEEE 802.3x flow control for full-duplex mode; back pressure flow control for half-duplex mode
• Store-and-Forward switching architecture with non-blocking wire-speed performance
• On / off power switch
• Diagnostic LEDs
• Plug and Play support
• Sturdy metal housing
• 3-years limited warranty

Specifications

Compliance
Standards Compliance	IEEE 802.3 10Base-T; IEEE 802.3u 100Base-TX; IEEE 802.3ab 1000Base-T; IEEE 802.3x Flow Control; IEEE 802.3az (draft 2.0)
Safety	FCC, CE
Electrical
Voltage/Power/Frequency	100 to 240VAC / 13W / 50 to 60Hz
Power Adaptor Type	Internal
Environmental
Environmental	Operating Temperature 0 to 40�C - Humidity 10 to 90%
General
Model Name	TEG-S24Dg
Product Type	Network Switch
Warranty	Three years limited.
Barcode	0710931610215
Interfaces/Ports
Full Duplex Capabilities	Half/Full Duplex
Fixed Ports	24 port(s) x RJ-45 , 10/100/1000Mbps , (Auto-MDIX)
Performance
Backplane	48Gbps
MAC Addresses	8,000
Network Latency	Ethernet: Cat. 5 up to 100 m � Fast Ethernet: Cat. 5 and 5e up to 100 m � Gigabit Ethernet: Cat. 5e and 6 up to 100 m
Port Bandwidth	10/100/1000Mbps
Topology	Star
Physical
Case Colour	Black
LED Status Indicators	Power, Link/ACT, 100Mbps, 1000Mbps
In The Box	TEG-S24Dg Switch, Multi-Language Quick Installation Guide, 1.8m Power Cord
Dimensions	28.0cm (W) x 18.0cm (D) x 4.4cm (H) - Weight 1.7kg
System
Protocols Supported	CSMA/CD
