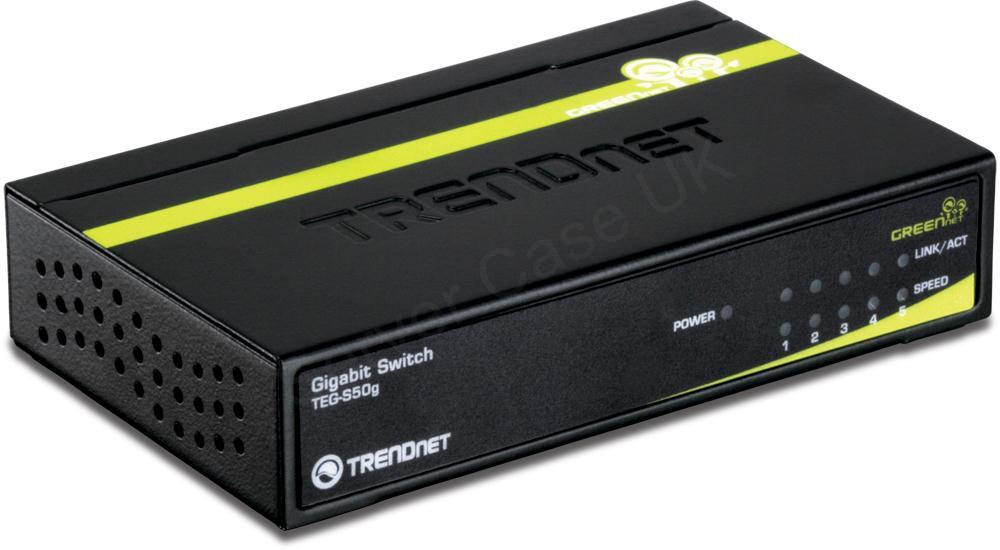

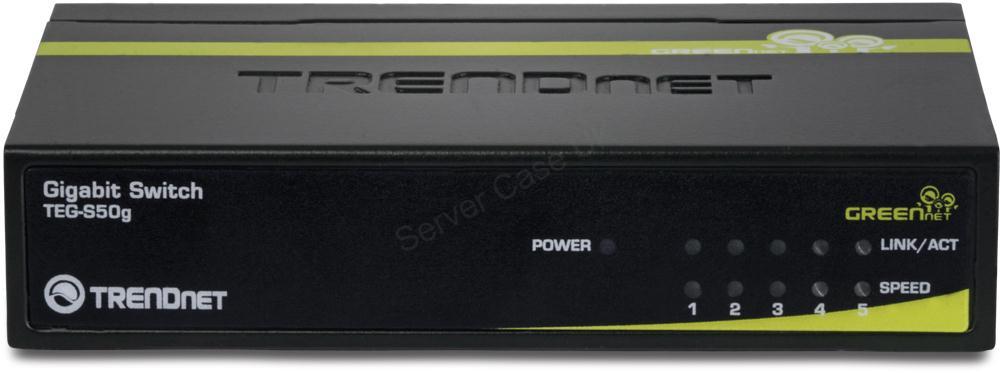

TRENDnet TEG-S50g 5-Port Gigabit GREENnet Switch (Version v3.0R)

The compact 5-Port Gigabit GREENnet Switch provides high bandwidth performance, ease of use and reliability, all while reducing power consumption by up to 70%. GREENnet technology automatically adjusts power voltage as needed, resulting in substantial energy savings. GREENnet technology reduces power consumption when: Ethernet port is not in use, Connected device is turned off, Connected device is in power-saving mode and Based on Ethernet cable length. Boost your office efficiency and eliminate network congestion with Gigabit speeds and total switching capacity of 10Gbps with Full-Duplex Mode. Plug and Play this sturdy metal switch for reliable high-speed network connectivity.

Features

• 5 x 10/100/1000Mbps Auto-Negotiation, Auto-MDIX Gigabit Ethernet port
• Store-and-Forward switching architecture with non-blocking wire-speed performance
• IEEE 802.3x Flow Control for full-duplex mode
• Back pressure Flow Control for half-duplex mode
• Integrated address look-up engine with an 8K absolute MAC address table and 128KBytes RAM data buffering
• Operates and maximizes packet filtering and forwarding rate
• Physical layer port polarity detection and correction
• IEEE 802.3az Energy Efficient Ethernet and GREENnet technology
• Jumbo Frame support up to 12KBytes
• Sturdy metal housing
• Diagnostic LEDs and Plug & Play

Specifications

Compliance
Standards Compliance	IEEE 802.3 10Base-T; IEEE 802.3u 100Base-TX; IEEE 802.3x Flow Control; IEEE 802.3az Energy Efficient Ethernet
Safety	FCC, CE
Electrical
Voltage/Power/Frequency	3W
Power Adaptor Type	DC
Environmental
Environmental	Operating Temperature 0 to 40°C - Humidity 5 to 90%
General
Model Name	TEG-S50g
Product Type	Network Switch
Warranty	Three years limited.
Barcode	0710931610147
Interfaces/Ports
Network Speeds Supported	10/100/1000MBps
Full Duplex Capabilities	Half/Full Duplex
Fixed Ports	5 port(s) x RJ-45 , 10/100/1000Mbps , (Auto-MDIX)
Performance
Backplane	10Gbps
MAC Addresses	8192
Network Latency	Ethernet: Cat. 3,4,5, up to 100m • Fast Ethernet: Cat. 5, up to 100m • Gigabit Ethernet: Cat. 5, 5e,6, up to 100m
Port Bandwidth	Max: 2000Mbps
Topology	Star
Physical
Case Colour	Black
LED Status Indicators	Power, Link/ACT, Speed
In The Box	TEG-S50g Switch, Multi-Language Quick Installation Guide, Power Adaptor (5V DC, 1A)
Dimensions	11.6cm (W) x 7.0cm (D) x 2.5cm (H) - Weight 0.225kg
System
Protocols Supported	CSMA/CD
