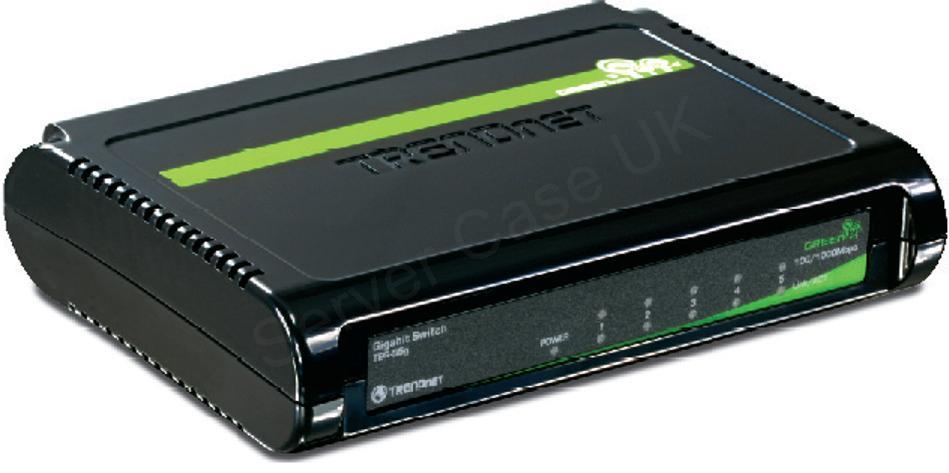

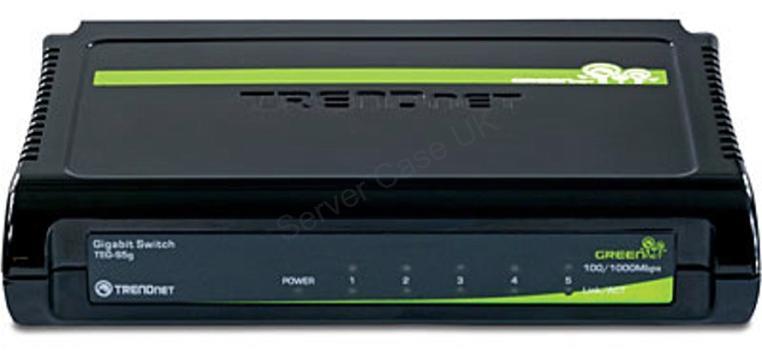

TRENDnet TEG-S5G GREENnet Switch 5-Port 10/100/1000Mbps (Version v1.0R)

The compact 5-Port Gigabit GREENnet Switch provides high bandwidth performance, ease of use and reliability, all while reducing power consumption by up to 70%. GREENnet technology automatically adjusts power voltage as needed, resulting in substantial energy savings. Build a high performance energy efficient Gigabit network in minutes.

Boost your office efficiency and eliminate network congestion with Gigabit speeds and total switching capacity of 10Gbps with Full-Duplex Mode. Plug and Play this desktop switch for reliable high-speed network connectivity.

Features

• 5 x 10/100/1000Mbps Auto-Negotiation, Auto-MDIX Gigabit Ethernet ports
• Store-and-Forward switching architecture with non-blocking wire-speed performance
• IEEE 802.3x Flow Control for full-duplex mode
• Back pressure Flow Control for half-duplex mode
• Integrated address look-up engine with 1K absolute MAC address table and 104KBytes RAM data buffering
• Operates and maximizes packet filtering and forwarding rate
• Jumbo Frame support up to 9612Bytes
• Diagnostic LEDs and Plug & Play

Specifications

Compliance
Standards Compliance	IEEE 802.3 10Base-T; IEEE 802.3u 100Base-TX; IEEE 802.3ab 1000Base-T; IEEE 802.3x Flow Control
Safety	FCC, CE
Electrical
Voltage/Power/Frequency	3W
Power Adaptor Type	DC
Environmental
Environmental	Operating Temperature 0 to 50�C - Humidity 10 to 90%
General
Model Name	TEG-S5G
Product Type	Network Switch
Warranty	Five years limited.
Barcode	710931610123
Interfaces/Ports
Network Speeds Supported	10/100/1000MBps
Full Duplex Capabilities	Half/Full Duplex
Fixed Ports	5 port(s) x RJ-45 , 10/100/1000Mbps , (Auto-MDIX)
Performance
MAC Addresses	1,000
Packet Forwarding Rate	10Gpps
Topology	Star
Physical
Case Colour	Black
LED Status Indicators	Power, Link/ACT, 100Mbps, 1000Mbps
In The Box	TEG-S5g Switch, Multi-Language Quick Installation Guide, Power Adaptor
Dimensions	10.5cm (W) x 15.0cm (D) x 3.3cm (H) - Weight 0.225kg
System
Protocols Supported	CSMA/CD
Wireless
Wireless Channels	Ethernet: Cat. 3,4,5, up to 100m � Fast Ethernet: Cat. 5, up to 100m � Gigabit Ethernet: Cat. 5, 5e,6, up to 100m
