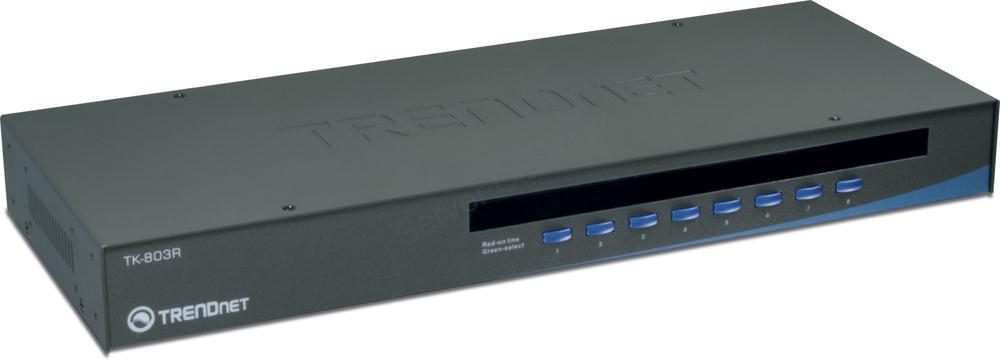

TRENDnet TK-803R 8-Port USB/PS2 Rack Mount KVM Switch (Black)

The 8-Port USB KVM Switch lets you manage multiple computers with just one set of keyboard, monitor and mouse. This rack mount device supports USB and PS/2 interface on the console and USB only on the PC side. Popular hardware platforms such as PC, Linux and Mac are supported. Users can switch between PCs using hot-key or push button for flexible management. Users can also hot-plug PCs on the fly to avoid downtime. The 8-Port USB KVM Switch is the perfect choice for managing multiple PC's.

Features

• 8-Port USB KVM Switch
• Supports both USB and PS/2 Interface for console port
• Supports Microsoft IntelliMouse, IntelliMouse Explorer, Logitech NetMouse, Optical Mouse, and more
• Supports Windows 98SE/ME/ 2000/XP/2003 Server/Vista/Windows 7, Linux, Mac OS and more
• High video quality; up to 2048 x 1536 VGA resolution
• Firmware upgradeable via PC port
• Auto-Scan for monitored PCs with adjustable scan interval from 10-99 seconds
• Keyboard status restored when switching between PCs
• Beeping sound for port switching confirmation (enable/disable)
• Hot-Key or push button switching
• Plug & Play and Hot-Pluggable
• Standard 19 inch (1U) rackmount design

Specifications

Compliance
Certifications	CE, FCC
Display
Monitor Resolution Support	2048 x 1536 Pixels
Resolution (Maximum)	2048 x 1536dpi
Electrical
Power Supply	Power Adaptor Included
Power Adaptor Output	9VDC
Environmental
Operating Temperature	Operating Temperature 0 to 40�C
Operating Humidity	Humidity 0 to 80%
General
Model Name	TK-803R
Warranty	Two years.
Barcode	0710931304305
Input
Control Buttons	Push Button Hotkeys
Status Indicators	LED

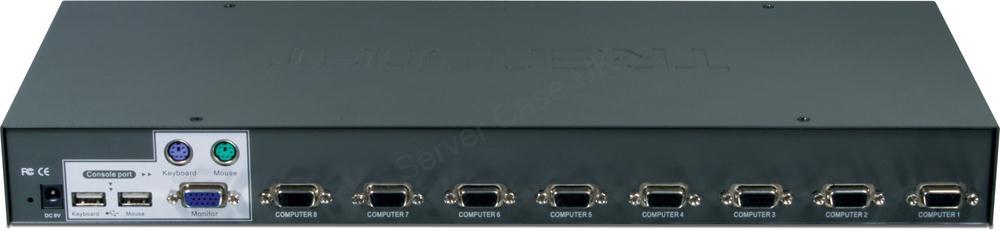

Interfaces/Ports
PC Monitor Port(s)	8
Console Keyboard Port	1 x 6-pin Mini-DIN Female (Purple), 1 x USB Type A Female (White)
Console Mouse Port	1 x 6-pin Mini-DIN Female (Green), 1 x USB Type A Female (White)
Console Monitor Port	1 x HDB-15 Female (Blue)
KVM Ports	8 PC Port(s) x 5 Console Port(s)
Physical
LED Status Indicators	Status
Case Colour	Black
In The Box	TK-803R KVM Switch, Multi-language quick installation guide, Rack Mount Kit, Power Adaptor (9V DC, 1A)
Dimensions	40.7cm (W) x 16.5cm (D) x 4.5cm (H) - Weight 1.83kg
