Compliance | |
Certifications | CE, FCC |
Display | |
Monitor Resolution Support | 2048 x 1536 Pixels |
Resolution (Maximum) | 2048 x 1536dpi |
Electrical | |
Power Supply | Power Adaptor Included |
Power Adaptor Output | 9VDC |
Environmental | |
Operating Temperature | Operating Temperature 0 to 40°C |
Operating Humidity | Humidity 0 to 80% |
General | |

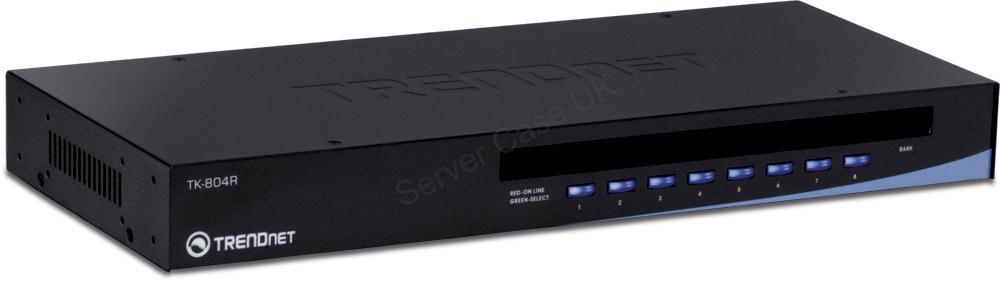

Model Name | TK-804R |
Warranty | Two years. |
Barcode | 0710931304312 |
Input | |
Control Buttons | OSD, Hotkey , Pushbutton |
Status Indicators | LED |
Interfaces/Ports | |

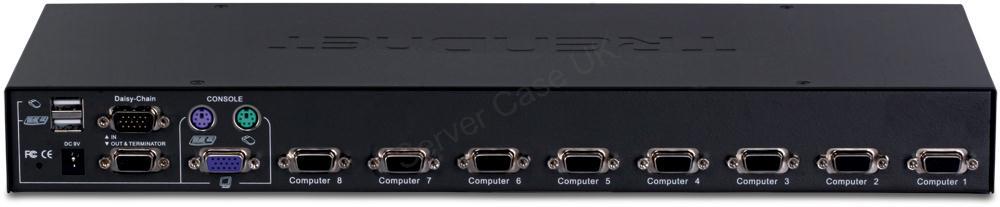

PC Monitor Port(s) | 8 |
Console Keyboard Port | 1 x 6-pin Mini-DIN Female (Purple), 1 x USB Type A Female (White) |
Console Mouse Port | 1 x 6-pin Mini-DIN Female (Green), 1 x USB Type A Female (White) |
Console Monitor Port | 1 x HDB-15 Female (Blue) |
Daisy Chain Connector | In: 1 x DB-15 Male (Black) • Out: 1 x DB-15 Female (Black) |
KVM Ports | 8 PC Port(s) x 5 Console Port(s) |
Physical | |
LED Status Indicators | 2 Ports Status |
Case Colour | Black |
In The Box | TK-804R KVM Switch, Multi-language quick installation guide, Rack Mount Kit, Power Adaptor (9V DC, 1A), Daisy-chain cable (HDB 15-pin male to HDB 15-pin female, 22.9 cm/9 inch), Daisy-chain terminator |
Dimensions | 40.7cm (W) x 16.4cm (D) x 4.5cm (H) - Weight 1.89kg |
