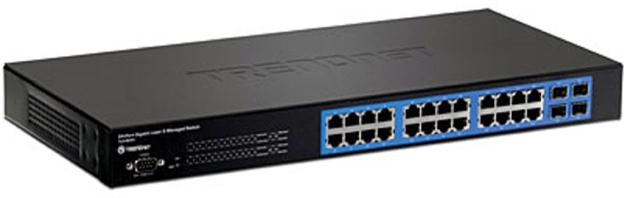

TRENDnet TL2-G244 24-Port Gigabit Layer 2 Switch with 4 Shared Mini-GBIC Slots

The 24-Port Gigabit Layer 2 Switch with 4 Shared Mini-GBIC Slots, model TL2-G244, provides a reliable foundation for a highly scalable managed network. The TL2-G244 features a 48Gbps switch fabric, 802.1X authentication, SNMP v3, and Multiple Spanning Tree (MSTP) support. Gigabit Ethernet ports and Mini-GBIC slots provide high speed uplinks to backbone switching or servers. Configure the switch using your choice of Telnet, HyperTerminal, SNMP, or a Browser. View statistics captured for 17 unique switching parameters. Additional management features such as Port Trunking, IGMP snooping, Static and Dynamic VLAN, Load Balancing, RMON, QoS, and RSTP allow administrators to effectively manage departmental work groups.

Features

• 24 x 10/100/1000Mbps Auto -MDIX Gigabit ports
• 4 x shared SFP (Mini-GBIC) slots
• 1 x RS-232 console port
• 8K MAC address entries
• 4Mbit data RAM Buffer
• 802.1Q Tagged VLAN, Dynamic VLAN Learning GVRP, and Asymmetric VLAN (Up to 256 VLAN Groups)
• Spanning Tree Protocols: 802.1d STP, 802.1w RSTP, and 802.1s MSTP
• 802.1X Port-Based Access Control and RADIUS Authentication
• IGMP snooping v1, v2 (Up to 64 entries)
• Supports port status control (enable/disable, auto-negotiation, speed, duplex, and flow-control)
• Front panel diagnostic LED indicators
• 19 inch (1U) Rack mount design with mounting hardware included
• 3-year limited warranty

Specifications

Compliance
Standards Compliance	IEEE 802.3 10BASE-T � IEEE 802.3u 100BASE-TX � IEEE 802.3ab 1000BASE-T � IEEE 802.3z 1000BASE-X SX/LX � IEEE 802.3x Flow Control and Back Pressure � IEEE 802.3ad Link Aggregation/Port Trunking (LACP) � IEEE 802.1d Spanning Tree (STP) � IEEE 802.1w Rapid Spanning Tree (RSTP) � IEEE 802.1s Multiple Spanning Tree (MSTP) � IEEE 802.1p Quality of Service/Class of Service (QoS/CoS) � IEEE 802.1Q VLAN Tagging and GVRP � IEEE 802.1X Port-Based Network Access Control
Electrical
Voltage/Power/Frequency	100 to 240VAC
Environmental
Environmental	Operating Temperature 0 to 40�C - Humidity 0 to 90%
General
Model Name	TL2-G244
Product Type	Network Switch
Barcode	710931508024
Interfaces/Ports
Network Speeds Supported	10/100/1000MBps
Fixed Ports	24 port(s) x RJ-45 , 10/100/1000Mbps ,
Optical Cable/Port Type	24 x 10/100/1000BASE-T ports
Performance
MAC Addresses	8,000
Port Bandwidth	10/100/1000Mbps
Stacking Bandwidth (Max)	48Gbps
Topology	Star
Physical
Case Colour	Black
LED Status Indicators	PWR (Green): Power, SYS (Green): System � 10/100M Link/ACT (Amber): 10/100Mbps Link/Activity (per Ethernet port) � 1000M Link/ACT (Green): 1000Mbps Link/Activity (per Ethernet port) � 100M Link/ACT (Amber): 10/100Mbps Link/Activity (per SFP slot) � 1000M Link/ACT (Green): 1000Mbps Link/Activity (per SFP slot)
In The Box	Multi-Language Quick Installation Guide � Power cord (1.8 m / 5.9 ft.) � TL2-G244 � CD-ROM (User's Guide) � RS-232 cable (3 m / 9.8 ft.) � Rack mounting kit
Dimensions	44cm (W) x 21cm (D) x 4.4cm (H) - Weight 2.9kg
System
Certifications	CE � FCC
Ethernet Switching Features	Switching Method - Store-and-Forward
Protocols Supported	SNMP v1 � v2c v3 � HTTP/HTTPS � Telnet � SSH
