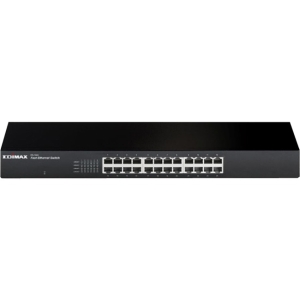

Edimax ES-1024 24 Ports Ethernet Switch
ES-1024Please contact us to discuss alternative products which may be suitable.
IEEE Energy Efficient Ethernet (EEE) compliance saves power up to 59%
The Switch ES-1024 offers environmental efficiency with Fast Ethernet speeds critical for next-generation network applications. To comply with the IEEE802.3az standard, the Switch ES-1026 provides power saving functions to reduce energy consumption to help business save cost.
-Inactive link detection
The power usage adjustment feature automatically reduces power usage when any shut down network device or inactive link is detected. That is, power consumption of the switch can be adjusted according to the link status or the number of active network devices when possible.
The devices equipped with this green feature can automatically detect the length of connected Ethernet cables and adjust power usage accordingly. The shorter the cable length, the less power it consumes.
Specifications
| General Information | |
| Manufacturer | Edimax Technology |
| Manufacturer Part Number | ES-1024 |
| Manufacturer Website Address | http://www.edimax.com |
| Brand Name | Edimax |
| Product Model | ES-1024 |
| Product Name | 24-Port Fast Ethernet Rack-mount Switch |
| Marketing Information | IEEE Energy Efficient Ethernet (EEE) compliance saves power up to 59% -Inactive link detection The devices equipped with this green feature can automatically detect the length of connected Ethernet cables and adjust power usage accordingly. The shorter the cable length, the less power it consumes. |
| Product Type | Ethernet Switch |
| Interfaces/Ports | |
| Stack Port | No |
| Total Number of Network Ports | 24 |
| Number of Network (RJ-45) Ports | 24 |
| Port/Expansion Slot Details | 24 x Fast Ethernet Network |
| Media & Performance | |
| Media Type Supported | Twisted Pair |
| Ethernet Technology | Fast Ethernet |
| Network Technology | 100Base-TX |
| Network & Communication | |
| Layer Supported | 2 |
| Management & Protocols | |
| Manageable | No |
| Power Description | |
| PoE (RJ-45) Port | No |
| Input Voltage | 120 V AC |
| Input Voltage | 230 V AC |
| Physical Characteristics | |
| Form Factor | Rack-mountable |
| Form Factor | Desktop |
| Height | 44 mm |
| Width | 441 mm |
| Depth | 131 mm |
| Weight (Approximate) | 1.70 kg |
| Miscellaneous | |
| Green Compliant | Yes |
| Green Compliance Certificate/Authority | RoHS |
Customer Reviews
There are currently no reviews against this product. Be the first to write a review!
Write a Review
Sorry there are no compatible products listed. Please contact us to discuss options available for this product.
Product downloads
There are currently no downloads available for this product. If you need a specific document, such as a manual, installation guide or datasheet please contact us and we would be happy to help.
