Compliance | |
Safety | CE mark, commercial • CSA certified (CSA 22.2 #950) • UL listed (UL 1950)/cUL IEC 950/EN 60950 |
Electrical | |
Voltage/Power/Frequency | 150W |
Environmental | |
Environmental | Operating Temperature 0 to 50°C - Humidity 90% |
General | |

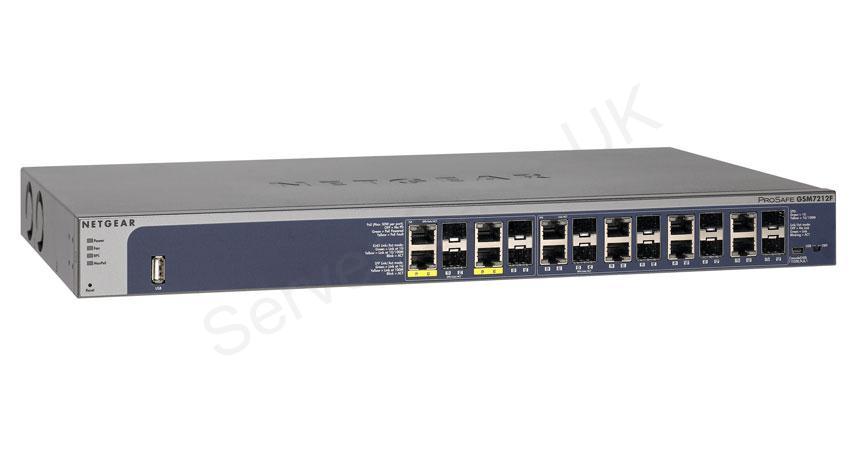

Model Name | GSM7212F |
Product Type | Network Switch |
Barcode | 606449080926 |
Memory | |
Buffer Memory | 12MB |
Memory (Maximum) | 128MB |
Physical | |
In The Box | GSM7212F Switch • Power cord • Rubber footpads for tabletop installation • Rubber caps for the SFP sockets • Rack mount kit • Mini-USB to USB cable for console • Resource CD • ProSafe NMS200 Network Management System DVD |
Dimensions | 44.0cm (W) x 25.7cm (D) x 4.4cm (H) - Weight 3.665kg |
System | |
Management Capabilities | SNMP v1, v2c, v3 with multiple IP addresses • Port mirroring support (many-to-one) • Flow-based mirroring • Syslog • File transfer (configuration, firmware) : HTTP, TFTP • Secure file transfer (configuration, firmware) : HTTPS, SCP, SFTP • Runtime image download (TFTP) • Port description sFlow • Web-based graphic user interface (GUI) • Command Line interface (CLI) • IPv6 Management • Cable test utility • SSLv3/TLSv1.0 Web security for the GUI • Secure Shell (SSHv1, v2) for CLI • Telnet sessions for management CPU (5 sessions) • Configurable management VLAN • Auto Install • Admin access control via RADIUS or TACACS+ • Dual Image (firmware and configuration) |
Security | Access control lists (ACL) L2/L3/L4 : MAC, IP, TCP/UDP ports • MAC-based source/destination ACL • IP subnet-based source/destination ACL • Protocol-based source/destination ACL • ACL over VLAN • Dynamic ACLs • Number of ACLs (any type) : 100 • Number of ACL rules : 512 • Network storm protection : Broadcast, Unicast, Multicast • DoS • ICMP throttling • Protected ports • Port MAC locking : 4,096 (dynamic), 48 (static) • MAC filtering • Port security • DHCP snooping • IP Source Guard • Dynamic ARP inspection • RADIUS (RFC 2865) • RADIUS accounting (RFC 2866) • IEEE 802.1x port access authentication |
