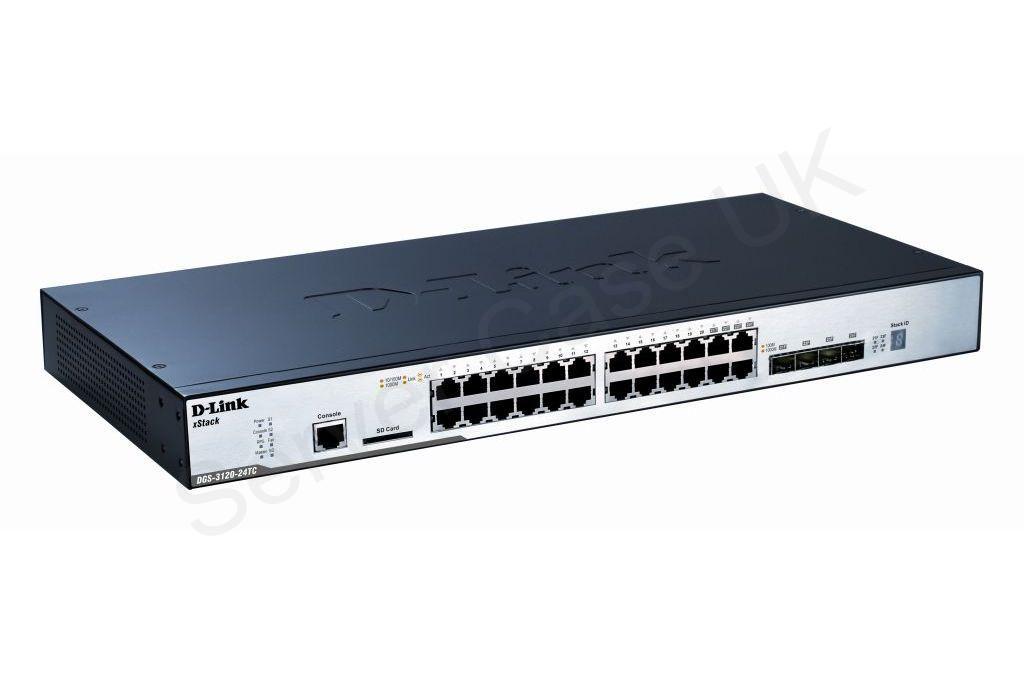

D-Link DGS-3120-24TC 24-port xStack Layer 2 Stackable Gigabit Switch

D-Link's DGS-3120 xStack Series are enhanced L2 access stackable switches designed to connect end-users in a secure SMB or enterprise network. These switches support physical stacking, multicast and enhanced security, making them an ideal Gigabit access layer solution. The DGS-3120-24TC provides 20 Gigabit ports and 4 combo SFP ports. This switch is also equipped with an SD Card slot, allowing the user to boot images and upload configuration files directly from an SD Card.

The DGS-3120 Series is embedded with two different software images -Standard Image (SI) and Enhanced Image (EI). The Standard Image provides sophisticated features for small and medium businesses, including advanced Quality of Service (QoS), traffic shaping, L2 multicasting, and robust security features. The Enhanced Image supports ERPS, Double VLAN (Q-in-Q), Ethernet OAM, Static Route, IMPB, sFlow, IPv6 features which are suitable for the next generation IPv6 networks or triple play applications in Metro Ethernet. The DGS-3120 Series targets small and medium businesses that require a high level of network security and maximum uptime. All the models in DGS-3120 Series support an external redundant power supply so that continued operation can be assured. They also include other features, such as Spanning Tree, Rapid Spanning Tree and Multiple Spanning Tree, Loopback Detection, and Broadcast Storm Control, which enhance network resilience. The Ethernet Ring Protection Switching (ERPS) function minimises the recovery time in case of a loop failure. For load sharing and redundancy backup in switch cascading/server attachment configuration, the DGS-3120 Series provides dynamic port trunking.

Features

• Built-in 10GbE stacking ports
• Built-in 10GbE stacking ports
• Stackable up to 6 units
• Stackable up to 6 units
• 40 Gb stacking bandwidth
• 40 Gb stacking bandwidth
• Up to 288 Gigabit ports in a single stack
• Up to 288 Gigabit ports in a single stack
• Standard and Enhanced software images
• Standard and Enhanced software images
• Comprehensive security
• Comprehensive security
• Power-saving technology
• Power-saving technology
• IPv6 Ready
• IPv6 Ready
• Easy to configure through a Web interface
• Easy to configure through a Web interface

Specifications

Compliance
Emissions	FCC Class A � CE Class A � VCCI Class A � IC � C-Tick
Emissions	FCC Class A � CE Class A � VCCI Class A � IC � C-Tick
Safety	CB � cUL � LVD
Safety	CB � cUL � LVD
Electrical
Voltage/Power/Frequency	100 to 240VAC / 40.5W / 50 to 60Hz
Voltage/Power/Frequency	100 to 240VAC / 40.5W / 50 to 60Hz
Environmental
Heat Dissipation	138.105BTUs per Hour
Heat Dissipation	138.105BTUs per Hour
Noise Level (full operating mode)	49.8dbA
Noise Level (full operating mode)	49.8dbA
Environmental	Operating Temperature 0 to 50�C - Humidity 10 to 90%
Environmental	Operating Temperature 0 to 50�C - Humidity 10 to 90%
General
Model Name	DGS-3120
Product Type	Managed Switch
Model Name	DGS-3120
Product Type	Network Switch
Barcode	790069342035
Barcode	790069342035
Interfaces/Ports
Network Speeds Supported	10/100/1000MBps
Network Speeds Supported	10/100/1000MBps
Fixed Ports	20 port(s) x RJ-45 , 10/100/1000Mbps , (10/100/1000 BASE-T)
Fixed Ports	20 port(s) x RJ-45 , 10/100/1000Mbps , (10/100/1000 BASE-T)
Dual Personality Ports	4 port(s) x RJ-45/SFP , 10/100/1000Mbps ,
Dual Personality Ports	4 port(s) x RJ-45/SFP , 10/100/1000Mbps ,
Console Ports	1 x RJ-45
Console Ports	1 x RJ-45
Memory
Buffer Memory	2MB
Buffer Memory	2MB
Flash Memory	32MB
Flash Memory	32MB
Performance
MAC Addresses	16,000
MAC Addresses	16,000
Packet Forwarding Rate	65.48Mpps
Packet Forwarding Rate	65.48Mpps
Stacking Capabilities	2 x dedicated stacking ports
Stacking Capabilities	2 x dedicated stacking ports
Physical
Dimensions	44.0cm (W) x 21.0cm (D) x 4.4cm (H) - Weight 2.559kg
Dimensions	44.0cm (W) x 21.0cm (D) x 4.4cm (H) - Weight 2.559kg
Routing
Layer 2 Services	MAC Address Table: 16K � Flow Control � Jumbo Frame up to 13K Bytes � Spanning Tree Protocols � 802.1D STP � 802.1w RSTP � 802.1s MSTP � Loopback Detection � 802.3ad Link Aggregation � Port Mirroring
Layer 2 Services	MAC Address Table: 16K � Flow Control � Jumbo Frame up to 13K Bytes � Spanning Tree Protocols � 802.1D STP � 802.1w RSTP � 802.1s MSTP � Loopback Detection � 802.3ad Link Aggregation � Port Mirroring
