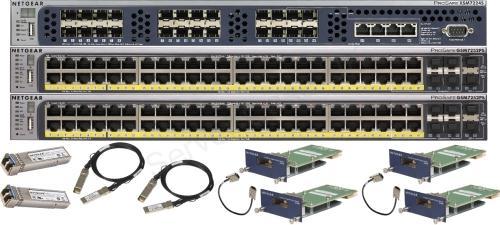

Netgear ProSafe 96 Port PoE Managed Starter Kit Bundle (1x Xsm7224s, 2x Gsm7252ps, 2x Ax742, 2x Axc763 & 2x Axm763

Mid-sized businesses, hospitals and schools have the same bandwidth needs as large enterprises. With the wide adoption of virtualization, audio-video-data convergence, and rapid growth of bandwidth intensive applications, there is a continued demand for faster network connectivity. The widespread deployment of Gigabit to the desktop is becoming a bottleneck for any network access layer. 10 Gigabit Ethernet represents the solution to many of the scaling challenges presented by the edge of today's networks. Successful 10 Gigabit Ethernet deployments require intelligent switching solutions with integrated security, high availability, delivery optimization, enhanced manageability, and support for new applications.

Features

• 30% instant savings
• 10 Gigabit Aggregation and Next-Gen Edge ready-to-deploy starter kit
• 10 Gigabit modules included

Specifications

Compliance
Safety	CE mark, commercial � CSA certified (CSA 22.2 #950) � UL listed (UL 1950)/cUL IEC 950/EN 60950
Electrical
Voltage/Power/Frequency	100 to 240VAC / 195.2W / 50 to 60Hz
Environmental
Environmental	Operating Temperature 32 to 122�C - Humidity 90%
General

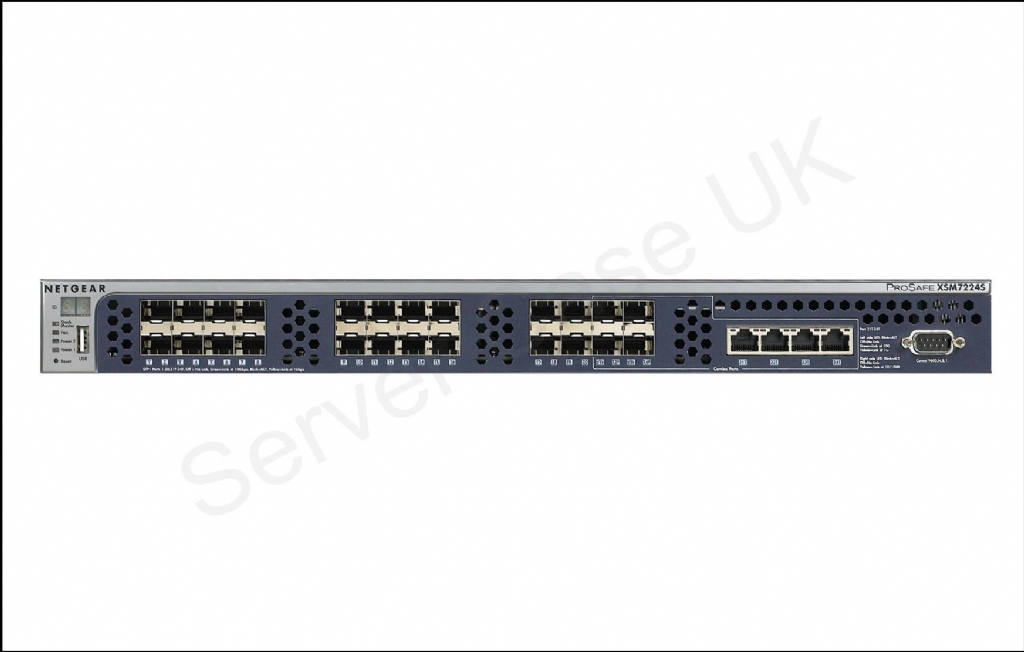

Model Name	XSM7224S
Product Type	Network Switch
Warranty	ProSafe Lifetime
Barcode	0606449082937
Physical
In The Box	ProSafe 24-port Stackable 10 Gigabit L2+ Managed Switch (XSM7224S) � Power cord � Rubber footpads for tabletop installation � Rubber caps for the SFP+ sockets � Rack-mounting kit � Null-modem serial cable (RS-232) with 9-pin connector � Resource CD
Dimensions	44.0cm (W) x 43.1cm (D) x 4.3cm (H) - Weight 6.3kg
Routing
Layer 2 Services	IEEE 802.3ad Link Aggregation (Static or LACP) up to 48 trunks per stack and up to 8 ports per trunk � 802.1AX-2008 � User selectable LAG hashing algorithm � IEEE 802.1D Spanning Tree Protocol (max 256 Spanning Trees) � IEEE 802.1w Rapid Spanning Tree � IEEE 802.1s Multiple Spanning Tree � MAC, IP, TCP/UDP ports � IEEE 802.1p Class of Service (CoS) � DiffServ QoS (RFC 2998) � Weighted round robin (WRR) queue technology � Strict priority queue technology � Ingress rate limit in 1 Kbps increments � Ingress and egress traffic
Layer 3 Services	MAC, IP, TCP/UDP ports � IEEE 802.1p Class of Service (CoS) � DiffServ QoS (RFC 2998) � Weighted round robin (WRR) queue technology � Strict priority queue technology � Ingress rate limit in 1 Kbps increments � Ingress and egress traffic
System
Security	Access control lists (ACL) L2/L3/L4: MAC, IP, TCP � MAC-based source/destination ACL � IP subnet-based source/destination ACL � Protocol-based source/destination ACL � ACL over VLAN � Dynamic ACLs � 2,048 ACLs rules � Ingress and egress ACL � Network storm protection including broadcast multicast and unicast traffic � DoS configurable protection � End-to-end flow control � Service-aware flow control � ICMP throttling � Protected ports � Port locking � MAC filtering � Port security � DHCP snooping � IP Source Guard � Dynamic ARP inspection � RADIUS (RFC 2865) � RADIUS accounting (RFC 2866) � IEEE 802.1x port access authentication (RADIUS) � Network access control: Captive portal with internal authentication or external � RADIUS authentication � Possible configuration of 10 captive portals � TACACS+
Protocols Supported	IEEE 802.3 Ethernet � IEEE 802.3i 10BASE-T � IEEE 802.3u 100BASE-T � IEEE 802.3ab 1000BASE-T � IEEE 802.3z Gigabit Ethernet 1000BASE-SX/LX � IEEE 802.3ae 10-Gigabit Ethernet � IEEE 802.3ad Trunking (LACP) � IEEE 802.1AB LLDP with ANSI/TIA-1057 (LLDP-MED) � IEEE 802.1D Spanning Tree (STP) � IEEE 802.1s Multiple Spanning Tree (MSTP) � IEEE 802.1w Rapid Spanning Tree (RSTP) � IEEE 802.1p Quality of Service � IEEE 802.1Q VLAN tagging � IEEE 802.1v protocol-based VLAN � IEEE 802.1X Radius network access control � IEEE 802.3x flow control
Wireless
VLANs	IEEE 802.1Q static VLAN (up to 4,096 VLANs) � IEEE 802.1v Protocol VLAN � Port-based VLAN � MAC-based VLAN � IP subnet-based VLAN � Protocol-based VLAN � Voice VLAN (based on IP phones OUIs) � Guest VLAN with IEEE 802.1x � Auto-VLAN assignment via RADIUS � IEEE 802.1 Q-in-Q (Double-VLAN tagging) � GARP with GVRP/GMRP (automatic registration for membership in VLANs or in multicast groups) � Private VLAN groups
