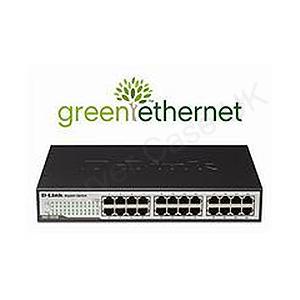

D-Link DGS-1024D 24-Port Green Ethernet Copper Gigabit Switch

Now, with the new high port-density Desktop Gigabit Switches from D-Link, upgrading your desktops to Gigabit connections has never been more cost-effective and easier. These desktop Gigabit switches offer an economical way for your workgroup to benefit from the increased bandwidth of Gigabit Ethernet. Each equipped with 24 Gigabit ports, these compact desktop switches provide for fast access to servers to meet your users' increasing network load. With plug-and-play installation and copper Gigabit ports capable of connecting to your existing Cat. 5 twisted-pair cable, these devices instantly enhance your workgroup's performance without requiring you to install expensive fibre cables or to go through complex re-configuration. All ports support 10/100/1000Mbps network speed auto-sensing and full/half duplex auto-negotiation. The Gigabit ports provide dedicated bandwidths for your desktops running at 2000Mbps full-duplex. This gives workstations bottleneck-free paths to simultaneously access server data.

This function support allows your servers to directly connect to the switch for fast, reliable data transfer. At 2000Mbps full duplex, the switch provides high-speed data pipes to your servers with minimum data transfer loss. All ports support auto-negotiation of MDI/MDIX cross over. This eliminates the need for cross over cables or uplink ports. Any port can simply plug to a server, a hub or a switch, using the usual straight-through twisted-pair cable. These switches integrate seamlessly with your existing network equipment, be it Ethernet, Fast Ethernet or Gigabit Ethernet, dispensing you of the need to replace any hardware or software. With 10/100/1000Mbps auto-sensing, auto-negotiation for every port, plus the ability to exist with your Cat. 5 wall wiring, network installation is a breeze. All you need to do is plug the cables to the switch, and your network is up and running in a matter of minutes.

Features

• Power-saving feature, up to 25% less power consumption (Green Ethernet version only)
• Power-saving feature, up to 25% less power consumption (Green Ethernet version only)
• 24 Gigabit Ethernet ports
• 24 Gigabit Ethernet ports
• 48Gbps Switching Capacity
• 48Gbps Switching Capacity
• Desktop or rack-mountable design
• Desktop or rack-mountable design
• Non-blocking architecture
• Non-blocking architecture

Specifications

Compliance
Standards Compliance	IEEE 802.3 10BASE-T Ethernet (twisted-pair copper) • IEEE 802.3u 100BASE-TX Fast Ethernet (twisted-pair copper) • IEEE 802.3ab 1000BASE-T Gigabit Ethernet (twisted-pair copper) • ANSI/IEEE 802.3 NWay auto-negotiation • IEEE 802.3x Flow Control
Standards Compliance	IEEE 802.3 10BASE-T Ethernet (twisted-pair copper) • IEEE 802.3u 100BASE-TX Fast Ethernet (twisted-pair copper) • IEEE 802.3ab 1000BASE-T Gigabit Ethernet (twisted-pair copper) • ANSI/IEEE 802.3 NWay auto-negotiation • IEEE 802.3x Flow Control
Electrical
Voltage/Power/Frequency	100 to 240VAC / 37.5W / 50 to 60Hz
Voltage/Power/Frequency	100 to 240VAC / 37.5W / 50 to 60Hz
Power Adaptor Type	Internal
Power Adaptor Type	Internal
Environmental
Environmental	Operating Temperature 0 to 40°C - Humidity 5 to 95%
Environmental	Operating Temperature 0 to 40°C - Humidity 5 to 95%
General
Model Name	DGS-1024D
Product Type	Unmanaged Switch
Model Name	DGS-1024D
Product Type	Network Switch
Barcode	0790069269929
Barcode	0790069269929
Interfaces/Ports
Network Speeds Supported	10/100/1000MBps
Network Speeds Supported	10/100/1000MBps
Full Duplex Capabilities	10/100Mbps: Half/Full • Gigabit: Full
Full Duplex Capabilities	10/100Mbps: Half/Full • Gigabit: Full
Fixed Ports	24 port(s) x 10/100/1000Mbps , (24 x RJ-45)
Fixed Ports	24 port(s) x 10/100/1000Mbps , (24 x RJ-45)
Memory
Buffer Memory	0.5MB
Buffer Memory	0.5MB
Performance
Backplane	48Gbps
Backplane	48Gbps
MAC Addresses	8,000
MAC Addresses	8,000
Packet Forwarding Rate	1000 Mbps port: 1,488,100pps • 100 Mbps port: 148,810pps • 10 Mbps port: 14,880pps
Packet Forwarding Rate	1000 Mbps port: 1,488,100pps • 100 Mbps port: 148,810pps • 10 Mbps port: 14,880pps
Topology	Star
Topology	Star
Physical
LED Status Indicators	Per port: 10/100Mbps speed, 1000Mbps speed • Per port: Link/Act • Per device: Power
LED Status Indicators	Per port: 10/100Mbps speed, 1000Mbps speed • Per port: Link/Act • Per device: Power
Dimensions	28.0cm (W) x 18.0cm (D) x 4.4cm (H) - Weight 1.811kg
Dimensions	28.0cm (W) x 18.0cm (D) x 4.4cm (H) - Weight 1.811kg
System
Certifications	Emission (EMI): FCC Class A, CE Class A, VCCI Class A • Safety: CSA International
Certifications	Emission (EMI): FCC Class A, CE Class A, VCCI Class A • Safety: CSA International
